10 MHz to 18 GHz Power Detector, Positive Output Slope, +23 dBm Max Pin, SMA

10 MHz to 18 GHz Power Detector, Positive Output Slope, +23 dBm Max Pin, SMA

Name: 10 MHz to 18 GHz Power Detector, Positive Output Slope, +23 dBm Max Pin, SMA
Brand: Fairview Microwave, Inc.
SKU: FMPT1003
Price: 1700.0 USD
Availability: InStock

RF detector FMPT1003 from Fairview Microwave is only one component of a large number of radio frequency parts specifically stocked to be readily available for same-day shipment. The Fairview Microwave...

RF detector FMPT1003 from Fairview Microwave is only one component of a large number of radio frequency parts specifically stocked to be readily available for same-day shipment. The Fairview Microwave radio frequency detector is manufactured as a positive output slope power design. Our positive RF power detector is constructed with threaded Field Replaceable SMA male to Field Replaceable SMA female connectors. Our positive output slope RF power detector has an aluminum body.Fairview Microwave Field Replaceable SMA positive output slope detector has a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. This FMPT1003 Field Replaceable SMA coaxial radio frequency power detector has a maximum input power of 23 dBm. Additional RF specs for this Fairview Microwave component can be found on its radio frequency detector datasheet PDF specifications above.The Fairview Microwave power detector with Field Replaceable SMA type connector has a maximum VSWR of 1.8:1. This positive output slope detector comes with a typical voltage sensitivity of 0.5 mV/mW and typical tangential sensitivity of -35 dBm. Our positive RF power detector is designed to operate at temperatures ranging between -40 to +85 deg C.Our RF connectorized detector is only one of more than 1 million RF, microwave and millimeter wave parts we stock. This coaxial power Field Replaceable SMA detector is ready to buy and be shipped worldwide. Fairview Microwave also stocks a wide selection of other radio frequency coaxial detector products that ship same day from our warehouse along with the rest of our RF, microwave, and millimeter wave components.

Expand

SKU FMPT1003 FMPT1003 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Biased Detector or Zero Biased Detector

Power

Layout

Positive Output Slope

Minimum Frequency

10 MHz

Maximum Frequency

18 GHz

Detector Polarity

Positive

Voltage Sensitivity, Typ

0.5 mV/mW

Tangential Sensitivity, Max

-35 dBm

Power, Max Input

23 Watts

VSWR, Typ

1.5:1

VSWR, Max

1.8:1

Connector In Series

Field Replaceable SMA

Connector-In Group (Threaded, Bayonet)

Threaded

Connector In Gender

Male

Connector Out Series

Field Replaceable SMA

Connector-Out Group (Threaded, Bayonet)

Threaded

Connector Out Gender

Female

Body Material

Aluminum

Min Operating Temperature

-40 deg C

Max Operating Temperature

85 deg C

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

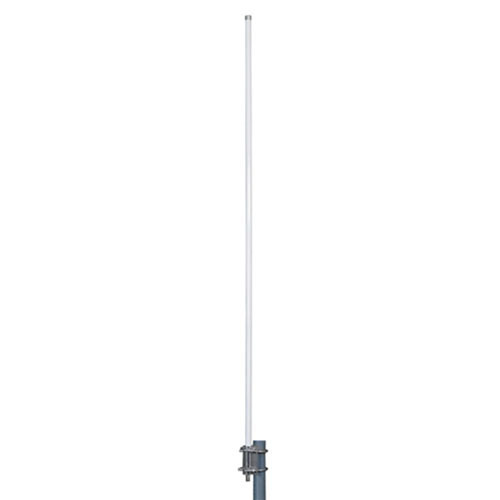

8-dbi-omni-antenna-900-928-mhz-n-tyfm-female-1.6-1-typ-vswr-fm51om1019 Fairview Microwave FM51OM1019

3 available

8 dBi Omni Antenna 900-928 MHz, N Type Female Fiberglass Radome, 1.6:1 Typ VSWR

Compare

SKU FM51OM1019

Starting price $169.99

Estimated shipment Tomorrow

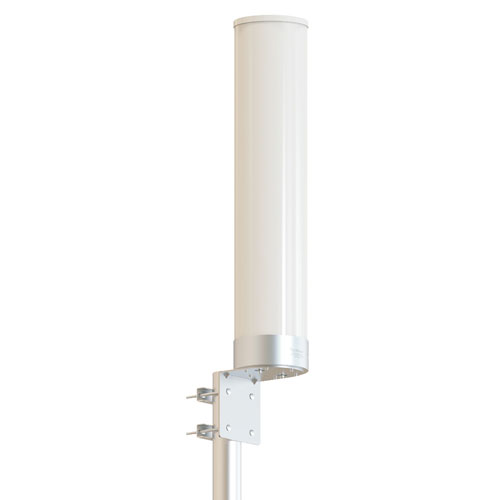

dual-antenna-824-928-mhz-8.5-dbi-gain-n-fm51om1021 Fairview Microwave FM51OM1021

4 available

800/900 MHz 10 dBi Dual Slant Polarization Omni antenna

Compare

SKU FM51OM1021

Starting price $1,030.00

Estimated shipment Tomorrow

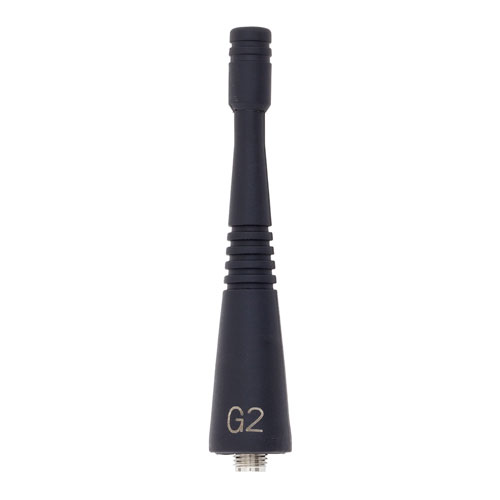

whip-antenna-0-dbi-sma-female-fman51165 Fairview Microwave FMAN51165

5 available

Whip Antenna Operates From 880 MHz to 960 MHz With a Nominal 0 dBi Gain SMA Female Input Connector IP67 Rated

Compare

SKU FMAN51165

Starting price $34.99

Estimated shipment Tomorrow

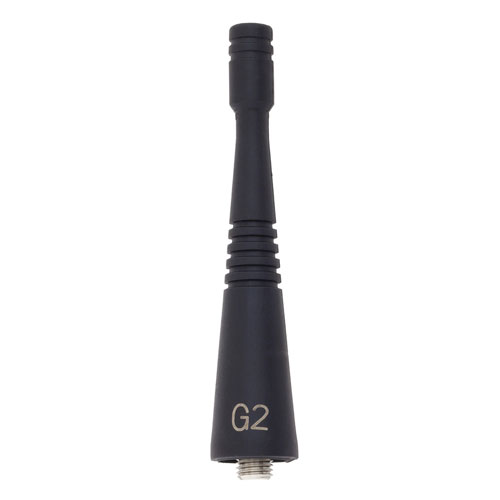

whip-antenna-0-dbi-mx-fman51164 Fairview Microwave FMAN51164
