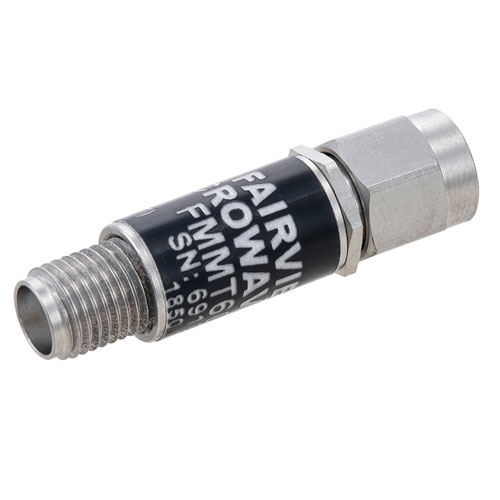

Tunnel Diode Zero Bias Detector, 2 GHz to 4 GHz, SMA, Positive Video Out, +17 dBm max Pin, 5 nsec Pulse Risetime

Tunnel Diode Zero Bias Detector, 2 GHz to 4 GHz, SMA, Positive Video Out, +17 dBm max Pin, 5 nsec Pulse Risetime

RF dectector FMMT6015 from Fairview is only one component of a large number of radio frequency parts specifically stocked to be readily available for rapid shipment. The Fairview Microwave radio frequ...

RF dectector FMMT6015 from Fairview is only one component of a large number of radio frequency parts specifically stocked to be readily available for rapid shipment. The Fairview Microwave radio frequency detector is manufactured as a tunnel diode zero bias design and has a 50 Ohm impedance. Our RF tunnel diode zero bias detector is constructed with SMA male to SMA female connectors.Fairview Microwave SMA to SMA tunnel diode zero bias detector has a minimum frequency of 2 GHz and a maximum frequency of 4 GHz. This SMA coaxial RF tunnel diode zero bias detector part number FMMT6015 has a maximum input power of 17 dBm. Additional RF specs for this Fairview Microwave component can be found on its radio frequency detector datasheet PDF specifications above.Our RF connectorized detector is only one of more than 1 million RF, microwave and millimeter wave parts we stock. This coaxial tunnel diode zero bias SMA to SMA detector is ready to buy and be shipped worldwide. Fairview also stocks a wide selection of other radio frequency coaxial detector products that ship same-day from our warehouse along with rest of our RF, microwave and millimeter wave components.

Expand

SKU FMMT6015 FMMT6015 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Biased Detector or Zero Biased Detector

Tunnel Diode Zero Bias

Minimum Frequency

2 GHz

Maximum Frequency

4 GHz

Detector Polarity

Positive

Voltage Sensitivity, Typ

1,000 mV/mW

Tangential Sensitivity, Max

-51 dBm

Power, Max Input

17 Watts

VSWR, Typ

2:1

Connector In Series

SMA

Connector-In Group (Threaded, Bayonet)

Threaded

Connector In Gender

Male

Connector Out Series

SMA

Connector-Out Group (Threaded, Bayonet)

Threaded

Connector Out Gender

Female

Min Operating Temperature

-65 deg C

Max Operating Temperature

115 deg C

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
