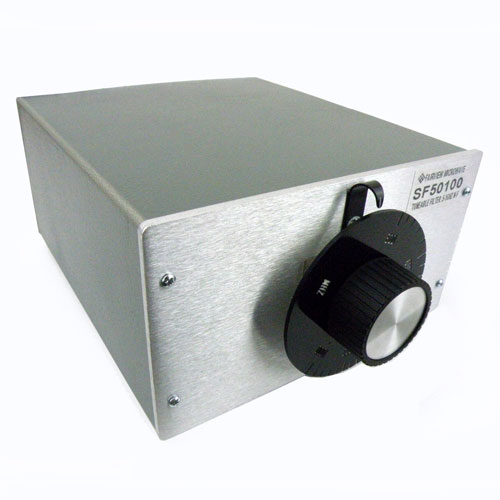

Tunable Band Pass Filter With N Female Connectors From 1 GHz to 2 GHz With a 5% Bandwidth

Tunable Band Pass Filter With N Female Connectors From 1 GHz to 2 GHz With a 5% Bandwidth

SBPF-1000-2000-05-N tunable band pass filter from Fairview Microwave is just part of a wide selection of coaxial RF filter products supplied. Our RF tunable band pass filter design is built with N con...

SBPF-1000-2000-05-N tunable band pass filter from Fairview Microwave is just part of a wide selection of coaxial RF filter products supplied. Our RF tunable band pass filter design is built with N connectors that are female gender. This N tunable bandpass filter design is rated for a VSWR of 1.5:1 and a maximum power of 50 Watts.Fairview Microwave adjustable bandpass filter has a minimum frequency of 1 GHz and a maximum frequency of 2 GHz. Tunable RF band-pass filter part number SBPF-1000-2000-05-N has a percentage of bandwidth that is 5% and the insertion loss maximum is 1 dB. More coaxial N variable band pass filter design specs for this radio frequency component can be found on its tunable RF bandpass filter PDF specifications datasheet above.Fairview is where to buy a tunable RF band pass filter with N connectors operating from 1 GHz to 2 GHz with a 5% bandwidth. We also stock a large selection of other variable RF filter products that will ship the same day from our location. RF / microwave and millimeter wave band-pass adjustable filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same-day from our warehouse inventory.

Expand

SKU SBPF-1000-2000-05-N SBPF-1000-2000-05-N -0

QTY available Call us

Price $3,680.00

Quantity Price

1-4$3,680.00

5-9$3,606.40

10-24$3,532.80

25-99$3,459.20

100-249$3,385.60

250+$3,385.60Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Key specifications

Datasheet

View All

Type

Band Pass

Design

Tunable

Min Frequency

1 GHz

Max Frequency

2 GHz

Maximum Insertion Loss

1 dB

Impedance

50 Ohm

Input Max VSWR

1.5:1

Maximum Power

50 Watts

Connector-In Series

N

Connector-In Gender

Female

Connector-Out Series

N

Connector-Out Gender

Female

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
