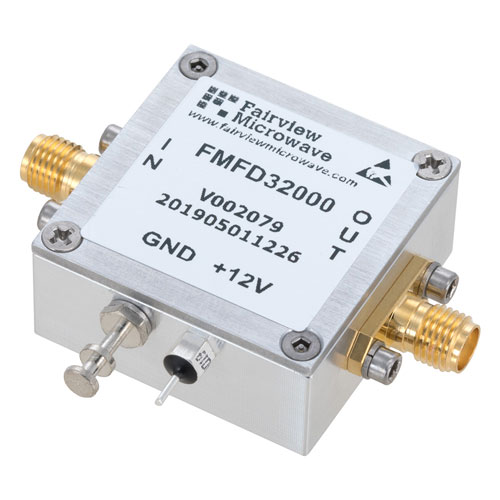

SMA Frequency Divider Divide by 32 Prescaler Module Operating from 400 MHz to 4 GHz

SMA Frequency Divider Divide by 32 Prescaler Module Operating from 400 MHz to 4 GHz

Name: SMA Frequency Divider Divide by 32 Prescaler Module Operating from 400 MHz to 4 GHz
Brand: Fairview Microwave, Inc.
SKU: FMFD32000
Price: 481.99 USD
Availability: OutOfStock

Fairview Microwave’s FMFD32000 divided-by-32 prescaler frequency divider module has threaded SMA female connectors. Our threaded SMA female frequency divider is suitable for PLL Applications, Test In...

Fairview Microwave’s FMFD32000 divided-by-32 prescaler frequency divider module has threaded SMA female connectors. Our threaded SMA female frequency divider is suitable for PLL Applications, Test Instrumentation, Countermeasures, Point to Point Microwave Radio, SATCOM, MILCOM and Base Stations applications. Our prescaler frequency divider module has an input frequency range of 400 MHz to 4 GHz and an output frequency range of 12.5 MHz to 125 MHz. Our frequency divider has a typical phase noise of -144 dBc/Hz at 100kHz offset. Make your online purchase right now to take advantage of our same-day shipping. This frequency divider FMFD32000 from Fairview Microwave is manufactured with an SMA input. The prescaler frequency divider module is powered by DC voltage ranging from 9 to 15 Vdc with a supply current of 85 mA. This frequency divider can operate at temperatures ranging from -40° to 85° deg C. Our dBm frequency divider has an overall length of 1.25 inches, a width of 1.25 inches, and a weight of 0.085 lbs. Our frequency divider has a storage temperature ranging from -55° to 125° deg C. Additional dimensions and specifications for this divided-by-32 prescaler frequency divider module is on our downloadable PDF datasheet above. Fairview Microwave’s divided-by-32 frequency divider module with a typical input power (CW) rating of dBm is in stock and currently available for purchase. Our frequency divider is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal prescaler frequency divider module as per your requirements.

Expand

SKU FMFD32000 FMFD32000 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Part No.

FMFD32000

Division Factor

32

Design

Prescaler

Square Output Min Freq (MHz)

12.5 MHz

Square Output Max Freq (MHz)

125 MHz

RF Input Connector Series

SMA

RF Input Connector Gender

Female

RF Input Connector Group

Threaded

RF Output Connector Series

SMA

RF Output Connector Gender

Female

Supply Voltage 1, Min

9

Supply Voltage 1, Max

15

Length

1.25

Width

1.25

Weight

0.085

Supply Current 1, Max

85

Phase Noise @ 100kHz Offset, Typ

-144

Min Operating Temperature

-40°

Max Operating Temperature

85°

Min Storage Temperature

-55°

Max Storage Temperature

125°

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

3A001.A.11.B

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

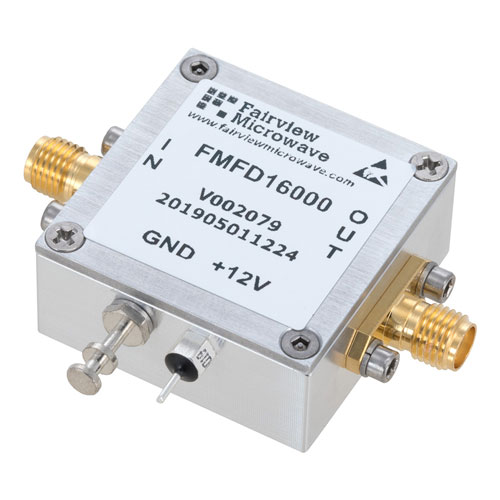

sma-frequency-divider-divide-16-prescaler-module-400-mhz-4-ghz-fmfd16000 Fairview Microwave FMFD16000

Call us

SMA Frequency Divider Divide by 16 Prescaler Module Operating from 400 MHz to 4 GHz

Compare

SKU FMFD16000

Starting price $481.99

Estimated shipment Call Us

sma-frequency-divider-divide-5-prescaler-module-100-mhz-7-ghz-fmfd25000 Fairview Microwave FMFD25000

Call us

SMA Frequency Divider Divide by 5 Prescaler Module Operating from 100 MHz to 7 GHz

Compare

SKU FMFD25000

Starting price $401.43

Estimated shipment Call Us

sma-frequency-divider-divide-10-prescaler-module-100-mhz-12.5-ghz-fmfd1001 Fairview Microwave FMFD1001

2 available

SMA Frequency Divider Divide by 10 Prescaler Module Operating from 100 MHz to 12.5 GHz

Compare

SKU FMFD1001

Starting price $1,920.00

Estimated shipment Tomorrow

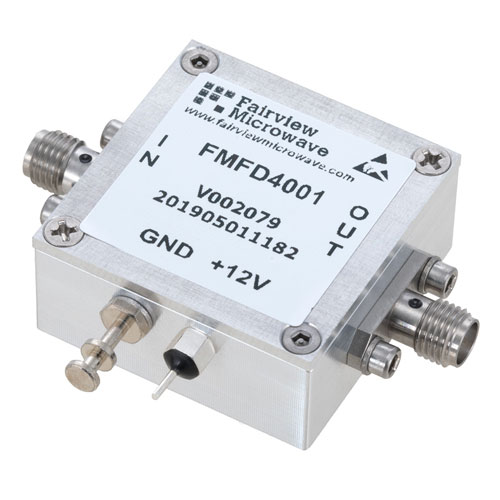

sma-frequency-divider-divide-4-prescaler-module-500-mhz-18-ghz-fmfd4001 Fairview Microwave FMFD4001
