SMA Frequency Divider Divide by 4 Prescaler Module Operating from 100 MHz to 13 GHz

SMA Frequency Divider Divide by 4 Prescaler Module Operating from 100 MHz to 13 GHz

Fairview Microwave’s FMFD4003 divided-by-4 prescaler frequency divider module has threaded SMA female connectors. Our threaded SMA female frequency divider is suitable for PLL Applications, Test Inst...

Fairview Microwave’s FMFD4003 divided-by-4 prescaler frequency divider module has threaded SMA female connectors. Our threaded SMA female frequency divider is suitable for PLL Applications, Test Instrumentation, Countermeasures, Point to Point Microwave Radio, SATCOM, MILCOM and Base Stations applications. Our prescaler frequency divider module has an input frequency range of 100 MHz to 13 GHz and an output frequency range of 25 MHz to 3.25 GHz. Our frequency divider has a typical phase noise of -151 dBc/Hz at 100kHz offset. Make your online purchase right now to take advantage of our same-day shipping. This frequency divider FMFD4003 from Fairview Microwave is manufactured with an SMA input. This frequency divider can operate at temperatures ranging from -40° to 85° deg C. Our dBm frequency divider has an overall length of 1.25 inches, a width of 1.25 inches, and a weight of 0.088 lbs. Our frequency divider has a storage temperature ranging from -55° to 125° deg C. Additional dimensions and specifications for this divided-by-4 prescaler frequency divider module is on our downloadable PDF datasheet above. Fairview Microwave’s divided-by-4 frequency divider module with a typical input power (CW) rating of dBm is in stock and currently available for purchase. Our frequency divider is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal prescaler frequency divider module as per your requirements.

Expand

SKU FMFD4003 FMFD4003 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Part No.

FMFD4003

Division Factor

4

Design

Prescaler

Square Output Min Freq (MHz)

25 MHz

Square Output Max Freq (MHz)

3.25 GHz

RF Input Connector Series

SMA

RF Input Connector Gender

Female

RF Input Connector Group

Threaded

RF Output Connector Series

SMA

RF Output Connector Gender

Female

Supply Voltage 1, Min

7

Supply Voltage 1, Max

15

Length

1.25

Width

1.25

Weight

0.088

Phase Noise @ 100kHz Offset, Typ

-151

Min Operating Temperature

-40°

Max Operating Temperature

85°

Min Storage Temperature

-55°

Max Storage Temperature

125°

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

3A001.A.11.B

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

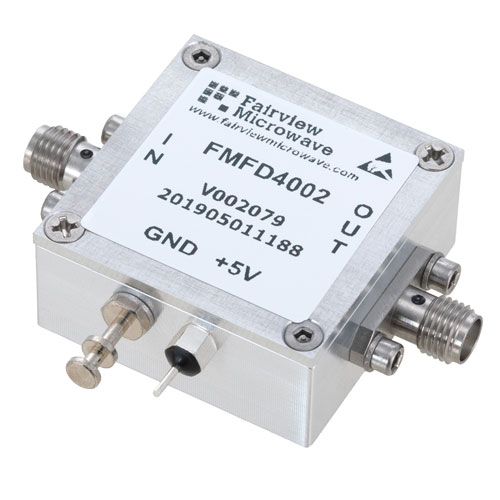

sma-frequency-divider-divide-4-prescaler-module-100-mhz-20-ghz-fmfd4002 Fairview Microwave FMFD4002

1 available

SMA Frequency Divider Divide by 4 Prescaler Module Operating from 100 MHz to 20 GHz

Compare

SKU FMFD4002

Starting price $664.29

Estimated shipment Next Business Day

sma-frequency-divider-divide-5-prescaler-module-100-mhz-15-ghz-fmfd5001 Fairview Microwave FMFD5001

5 available

SMA Frequency Divider Divide by 5 Prescaler Module Operating from 100 MHz to 15 GHz

Compare

SKU FMFD5001

Starting price $664.29

Estimated shipment Next Business Day

sma-frequency-divider-divide-12-prescaler-module-100-mhz-13-ghz-fmfd12000 Fairview Microwave FMFD12000

1 available

SMA Frequency Divider Divide by 12 Prescaler Module Operating from 100 MHz to 13 GHz

Compare

SKU FMFD12000

Starting price $512.86

Estimated shipment Next Business Day

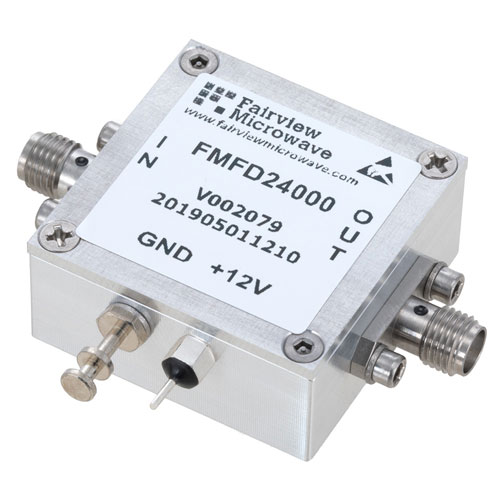

sma-frequency-divider-divide-24-prescaler-module-100-mhz-12-ghz-fmfd24000 Fairview Microwave FMFD24000

1 available

SMA Frequency Divider Divide by 24 Prescaler Module Operating from 100 MHz to 12 GHz

Compare

SKU FMFD24000

Starting price $512.86

Estimated shipment Next Business Day
