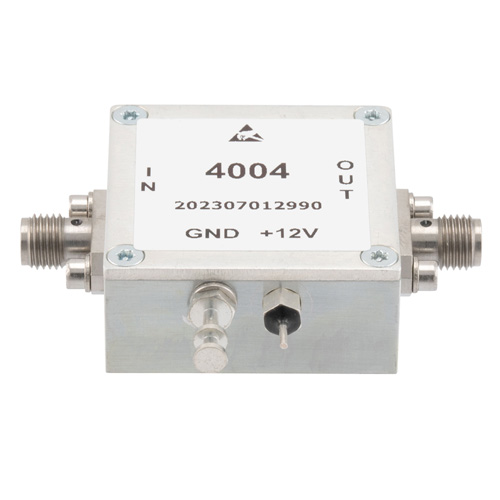

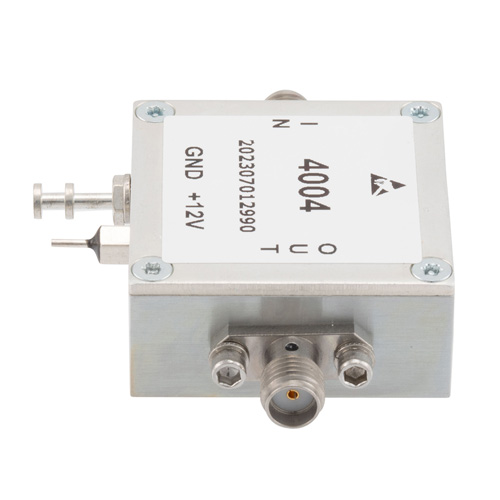

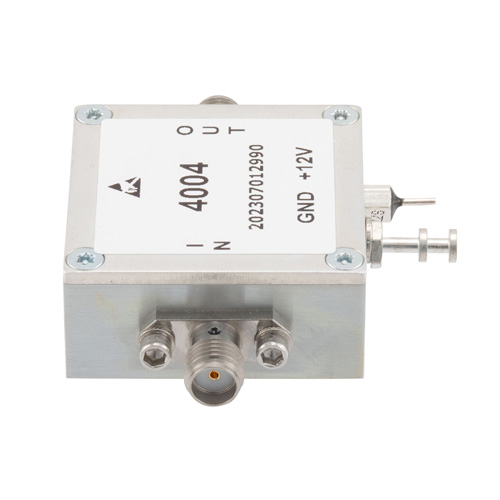

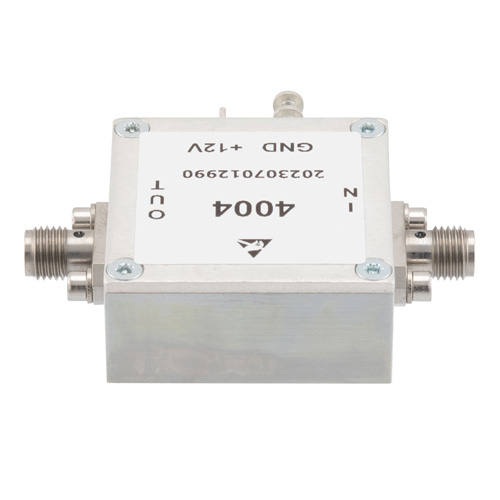

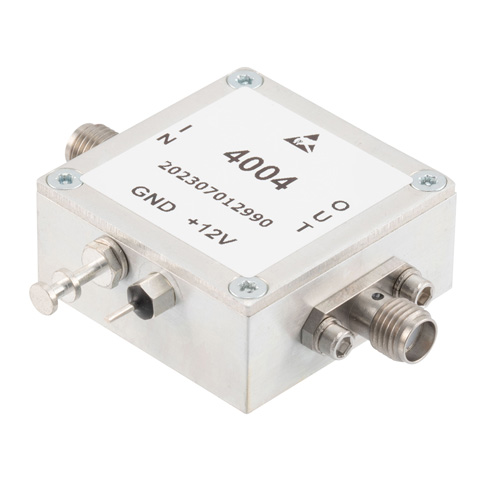

Frequency Divider, Divide by 4 Prescaler Module, 100 MHz to 24 GHz, SMA

Frequency Divider, Divide by 4 Prescaler Module, 100 MHz to 24 GHz, SMA

Name: Frequency Divider, Divide by 4 Prescaler Module, 100 MHz to 24 GHz, SMA
Brand: Fairview Microwave, Inc.
SKU: FMFD4004
Price: 2270.0 USD
Availability: InStock

Fairview Microwave’s FMFD4004 divided-by-4 prescaler frequency divider module has threaded SMA female connectors. Our 50 Ohm threaded SMA female frequency divider is suitable for aerospace & de...

Fairview Microwave’s FMFD4004 divided-by-4 prescaler frequency divider module has threaded SMA female connectors. Our 50 Ohm threaded SMA female frequency divider is suitable for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, SATCOM and wireless communications applications. Our prescaler frequency divider module has an input frequency range of 100 MHz to 24 GHz and an output frequency range of 25 MHz to 6 GHz. This SMA female frequency divider comes with a 50 Ohm impedance and a maximum input power rating (CW) of 10 dBm. Our coax frequency divider has a typical phase noise of -150 dBc/Hz at 100kHz offset. Make your online purchase right now to take advantage of our same-day shipping. This connectorized frequency divider FMFD4004 from Fairview Microwave is manufactured with an SMA input. The prescaler frequency divider module is powered by DC voltage ranging from 9 to 15 Vdc with a supply current of 100 mA. This frequency divider can operate at temperatures ranging from -40 to 85 deg C. Our frequency divider has an overall length of 1.25 inches, a width of 1.25 inches, and a weight of 0.009 lbs. Our frequency divider has a storage temperature ranging from -55 to 105 deg C. Additional dimensions and specifications for this divided-by-4 prescaler frequency divider module is on our downloadable PDF datasheet above. Fairview Microwave’s divided-by-4 frequency divider module with an input power (CW) rating of 10 dBm is in stock and currently available for purchase. Our connectorized frequency divider is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal prescaler frequency divider module as per your requirements.

Expand

SKU FMFD4004 FMFD4004 -0

QTY available 1

Price $2,270.00

Quantity Price

1-4$2,270.00

5-9$2,179.20

10-24$2,088.40

25-99$1,997.60

100-249$1,906.80

250+$1,906.80Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Part No.

FMFD4004

Division Factor

4

Design

Prescaler

Square Output Min Freq (MHz)

25 MHz

Square Output Max Freq (MHz)

6 GHz

Input Impedance

50 Ohm

RF Input Connector Series

SMA

RF Input Connector Gender

Female

RF Input Connector Group

Threaded

RF Output Connector Series

SMA

RF Output Connector Gender

Female

Supply Voltage 1, Min

9

Supply Voltage 1, Max

15

Package Family

Coax

Package Type

Connectorized

Length

1.25

Width

1.25

Weight

0.009

Supply Current 1, Max

100

Phase Noise @ 100kHz Offset, Typ

-150

Min Operating Temperature

-40°

Max Operating Temperature

85°

Min Storage Temperature

-55°

Max Storage Temperature

105°

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-frequency-divider-divide-8-prescaler-module-100-mhz-24-ghz-fmfd8004 Fairview Microwave FMFD8004

1 available

Frequency Divider, Divide by 8 Prescaler Module, 100 MHz to 24 GHz, SMA

Compare

SKU FMFD8004

Starting price $2,270.00

Estimated shipment Today

sma-frequency-divider-divide-2-prescaler-module-100-mhz-24-ghz-fmfd2004 Fairview Microwave FMFD2004

1 available

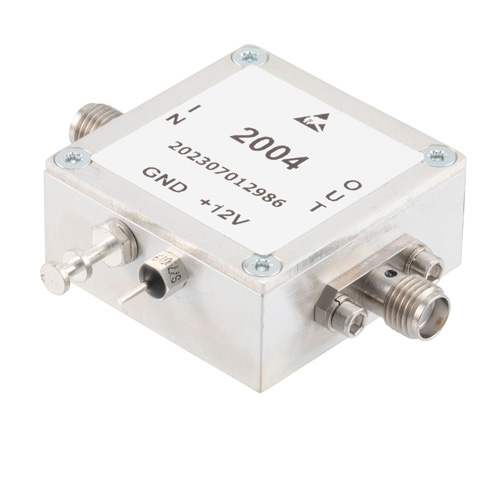

Frequency Divider, Divide by 2 Prescaler Module, 100 MHz to 24 GHz, SMA
