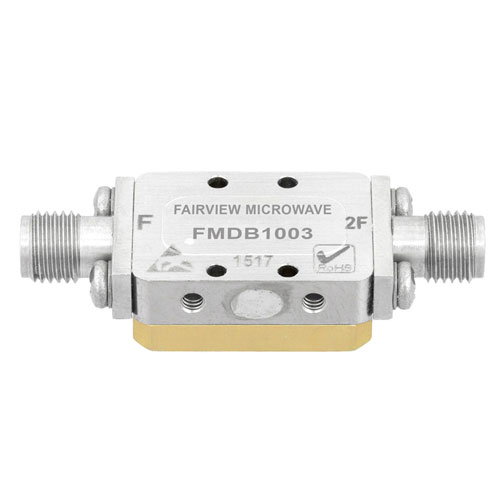

SMA Female 2x Frequency Multiplier with 18 GHz to 26 GHz Output and 10 dB Conversion Loss

SMA Female 2x Frequency Multiplier with 18 GHz to 26 GHz Output and 10 dB Conversion Loss

Fairview Microwave’s FMDB1003 passive 2x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 Ohm threaded SMA female to SMA...

Fairview Microwave’s FMDB1003 passive 2x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 Ohm threaded SMA female to SMA female frequency multiplier is suitable for This passive 2x frequency multiplier has an input frequency range of 9 GHz to 13 GHz and an output frequency range of 18 GHz to 26 GHz. Make your online purchase right now to take advantage of our same-day shipping. This passive 2x frequency multiplier FMDB1003 from Fairview Microwave is manufactured with an SMA input connector. Our SMA female multiplier comes with a 50 Ohm impedance and a max input power rating (CW) of 13 dBm. This passive 2x frequency multiplier can operate at temperatures ranging from -55° to 125° deg C. This 13 dBm passive 2x frequency multiplier has an overall length of 1.55 inches, a width of 0.31 inches, and a weight of 1 lbs. Our frequency multiplier has a typical fundamental isolation of 25 dB. Our passive 2x frequency multiplier has a storage temperature ranging from -65° to 150° deg C. Additional dimensions and specifications for this passive 2x frequency multiplier are on our downloadable PDF datasheet above. Fairview Microwave’s passive frequency multiplier with a maximum input power (CW) rating of 13 dBm is in stock and currently available for purchase. Our frequency multiplier is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal frequency multiplier as per your requirements.

Expand

SKU FMDB1003 FMDB1003 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Input Frequency, Min

9 GHz

Input Frequency, Max

13 GHz

Output Frequency, Min

18 GHz

Output Frequency, Max

26 GHz

Conversion Loss

13 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-2x-frequency-multiplier-18-ghz-10-db-fmdb1002 Fairview Microwave FMDB1002

Call us

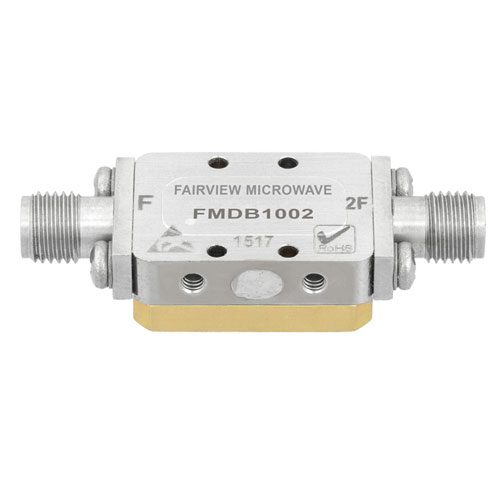

SMA Female 2x Frequency Multiplier with 8 GHz to 18 GHz Output and 10 dB Conversion Loss

Compare

SKU FMDB1002

Starting price $177.99

Estimated shipment Call Us

sma-2x-frequency-multiplier-12-ghz-11-db-fmdb1001 Fairview Microwave FMDB1001

3 available

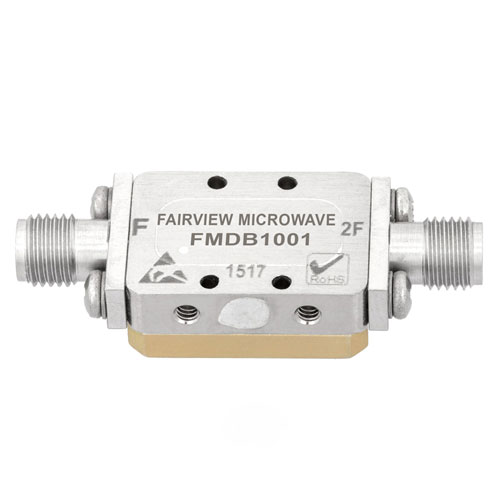

SMA Female 2x Frequency Multiplier with 4 GHz to 12 GHz Output and 11 dB Conversion Loss

Compare

SKU FMDB1001

Starting price $1,050.00

Estimated shipment Tomorrow

sma-2x-frequency-multiplier-8-ghz-14-db-fmfx2013 Fairview Microwave FMFX2013

2 available

SMA Female 2x Frequency Multiplier with 4 GHz to 8 GHz Output and 14 dB Conversion Loss

Compare

SKU FMFX2013

Starting price $207.15

Estimated shipment Tomorrow

sma-2x-frequency-multiplier-6-ghz-15-db-fmfx2012 Fairview Microwave FMFX2012

1 available

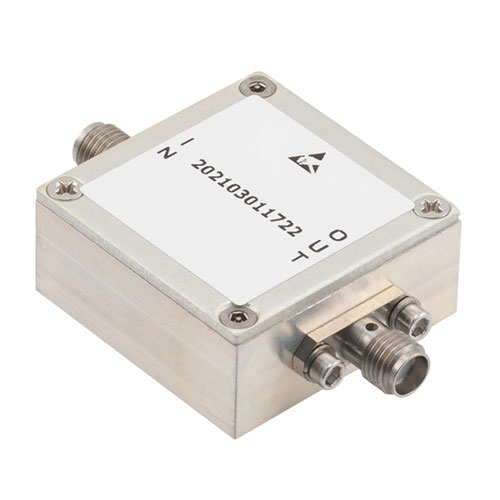

SMA Female 2x Frequency Multiplier with 2.5 GHz to 6 GHz Output and 15 dB Conversion Loss
