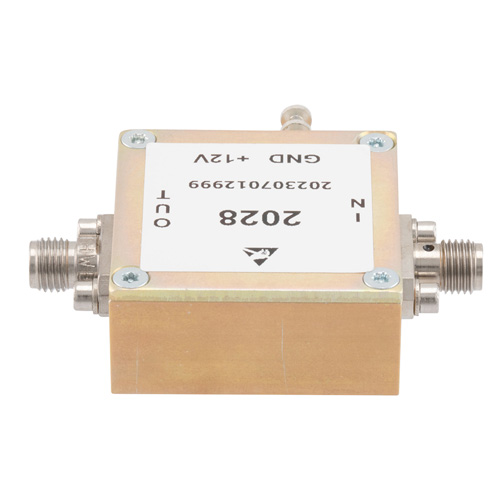

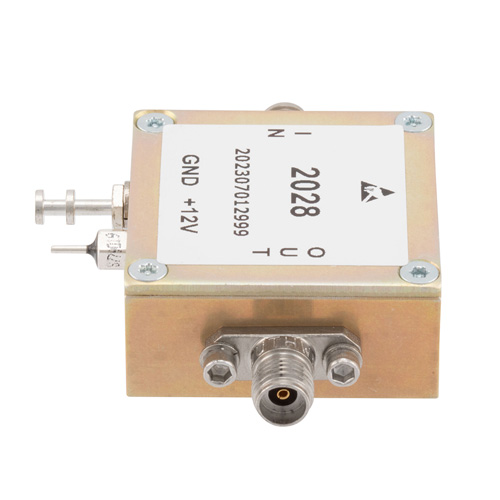

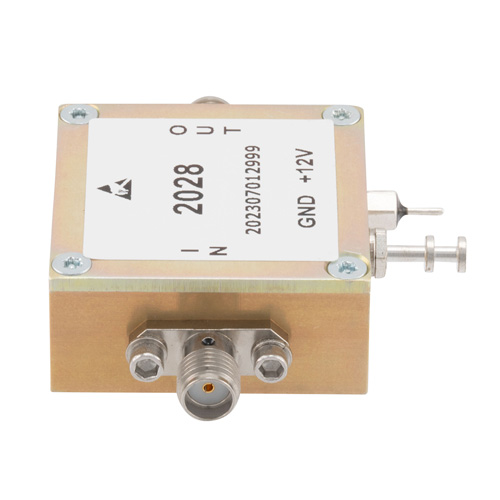

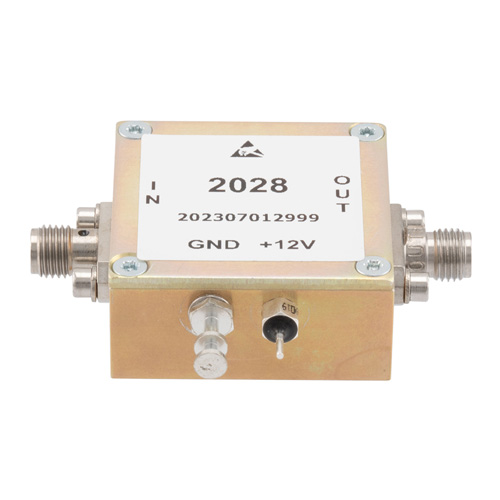

2x Active Frequency Multiplier, 23 to 33 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

2x Active Frequency Multiplier, 23 to 33 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

Fairview Microwave’s FMFX2028 active 2x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 Ohm threaded SMA female to SMA ...

Fairview Microwave’s FMFX2028 active 2x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 Ohm threaded SMA female to SMA female frequency multiplier is suitable for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, SATCOM and wireless communications applications. This active 2x frequency multiplier has an input frequency range of 11.5 to 16.5 GHz and an output frequency range of 23 to 33 GHz. Make your online purchase right now to take advantage of our same-day shipping. This active 2x frequency multiplier FMFX2028 from Fairview Microwave is manufactured with an SMA input connector. Our SMA female multiplier comes with a 50 Ohm impedance and a max input power rating (CW) of 6 dBm. This active 2x frequency multiplier can operate at temperatures ranging from -40 to 85 deg C and has a maximum VSWR of 2:1. Our active 2x frequency multiplier is powered by a DC voltage ranging from 9 to 15 Vdc with 125 mA of DC current. This 6 dBm active 2x frequency multiplier has an overall length of 1.25 inches, a width of 1.25 inches, and a weight of 0.009 lbs. Our frequency multiplier has a typical fundamental isolation of 20 dB. The active 2x frequency multiplier has a typical phase noise of -132 dBc/Hz at 100kHz offset. This active frequency multiplier has a typical conversion gain of 12 dB. Our active 2x frequency multiplier has a storage temperature ranging from -55 to 105 deg C. Additional dimensions and specifications for this active 2x frequency multiplier are on our downloadable PDF datasheet above. Fairview Microwave’s active frequency multiplier with a maximum input power (CW) rating of 6 dBm is in stock and currently available for purchase. Our frequency multiplier is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal frequency multiplier as per your requirements.

Expand

SKU FMFX2028 FMFX2028 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Input Frequency, Min

11.5 GHz

Input Frequency, Max

16.5 GHz

Output Frequency, Min

23 GHz

Output Frequency, Max

33 GHz

Input VSWR, Max

2:1

Output VSWR, MAX

2.2:1

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-active-2x-frequency-multiplier-24.5-ghz-10-dbm-fmfx2029 Fairview Microwave FMFX2029

1 available

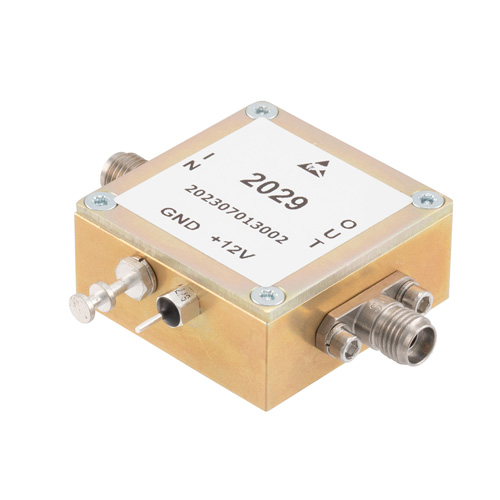

2x Active Frequency Multiplier, 13 to 24.5 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

Compare

SKU FMFX2029

Starting price $1,350.00

Estimated shipment Today

2.92mm-active-2x-frequency-multiplier-29-ghz-10-dbm-fmfx2027 Fairview Microwave FMFX2027

1 available

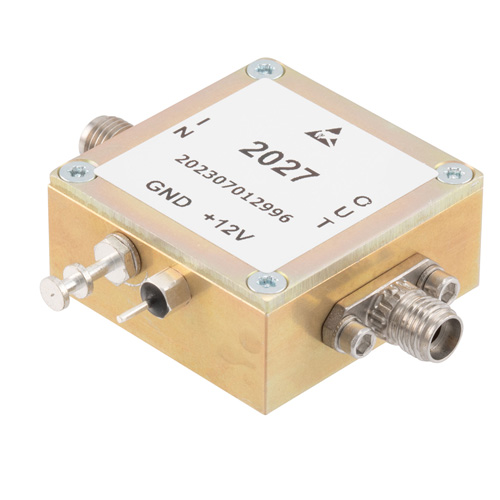

2x Active Frequency Multiplier, 18 to 29 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

Compare

SKU FMFX2027

Starting price $1,350.00

Estimated shipment Today

sma-active-3x-frequency-multiplier-2.25-ghz-fmfx2018 Fairview Microwave FMFX2018

2 available

SMA Female Active 3x Frequency Multiplier with 1.8 GHz to 2.25 GHz Output

Compare

SKU FMFX2018

Starting price $277.15

Estimated shipment Today

sma-active-3x-frequency-multiplier-4.5-ghz-fmfx2020 Fairview Microwave FMFX2020

2 available

SMA Female Active 3x Frequency Multiplier with 2.85 GHz to 4.5 GHz Output

Compare

SKU FMFX2020

Starting price $277.15

Estimated shipment Today

Join our mailing list

2x Active Frequency Multiplier, 23 to 33 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

Product available until inventory is depleted

Product no longer available

Key specifications

Key specifications

Product compliance

Product compliance

Recommended products

2x Active Frequency Multiplier, 13 to 24.5 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

2x Active Frequency Multiplier, 18 to 29 GHz Output Frequency, 12 dB Conversion Gain, 50 Ohm, SMA, Female

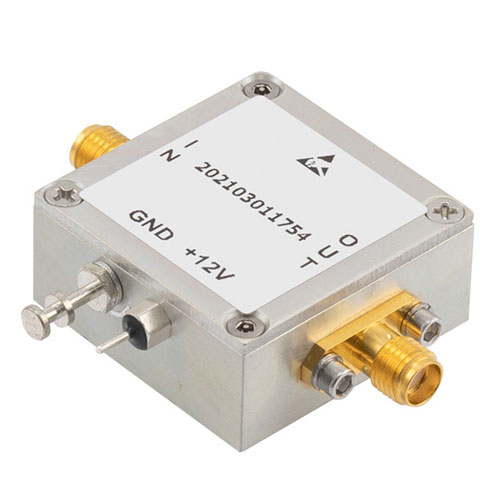

SMA Female Active 3x Frequency Multiplier with 1.8 GHz to 2.25 GHz Output

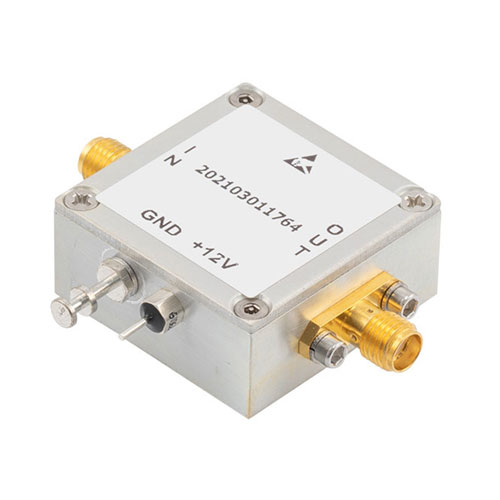

SMA Female Active 3x Frequency Multiplier with 2.85 GHz to 4.5 GHz Output
