SMA Female Active 3x Frequency Multiplier with 2.1 GHz to 3 GHz Output

SMA Female Active 3x Frequency Multiplier with 2.1 GHz to 3 GHz Output

Name: SMA Female Active 3x Frequency Multiplier with 2.1 GHz to 3 GHz Output
Brand: Fairview Microwave, Inc.
SKU: FMFX2019
Price: 855.0 USD
Availability: InStock

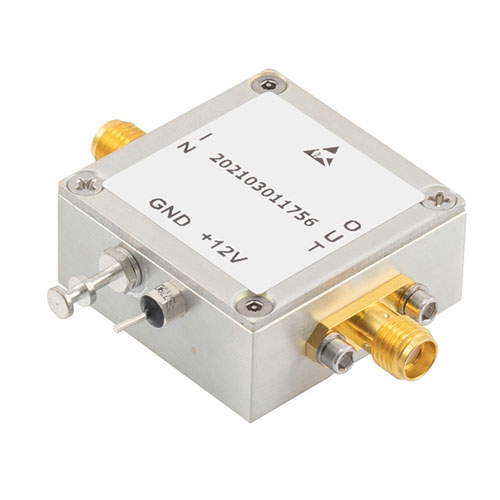

Fairview Microwave’s FMFX2019 active 3x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 OhmSMA female to SMA female fre...

Fairview Microwave’s FMFX2019 active 3x frequency multiplier (known as doubler to some) has an input SMA female connector and output SMA female connector. Our 50 OhmSMA female to SMA female frequency multiplier is suitable for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, SATCOM and wireless communications applications. This active 3x frequency multiplier has an input frequency range of 700 MHz to 1 GHz and an output frequency range of 2.1 GHz to 3 GHz. Make your online purchase right now to take advantage of our same-day shipping. This active 3x frequency multiplier FMFX2019 from Fairview Microwave is manufactured with an SMA input connector. This active 3x frequency multiplier can operate at temperatures ranging from -40° to 85° deg C and has a maximum VSWR of 1.5:1. Our active 3x frequency multiplier is powered by a DC voltage ranging from 10 to 15 Vdc with 170 mA of DC current. This dBm active 3x frequency multiplier has an overall length of 1.25 inches, a width of 0.563 inches, and a weight of 0.003 lbs. Our frequency multiplier has a typical fundamental isolation of 25 dB. This active frequency multiplier has a typical conversion gain of 12 dB. Our active 3x frequency multiplier has a storage temperature ranging from -55° to 105° deg C. Additional dimensions and specifications for this active 3x frequency multiplier are on our downloadable PDF datasheet above. Fairview Microwave’s active frequency multiplier is in stock and currently available for purchase. Our frequency multiplier is part of over one million RF, microwave, and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal frequency multiplier as per your requirements.

Expand

SKU FMFX2019 FMFX2019 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Input Frequency, Min

700 GHz

Input Frequency, Max

1 GHz

Output Frequency, Min

2.1 GHz

Output Frequency, Max

3 GHz

Input VSWR, Max

1.5:1

Output VSWR, MAX

2.5:1

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
