SPI Frequency Synthesizer PLL, 1 GHz to 6.4 GHz, +15 dBm Pout, 50 Hz Step, 100 MHz Reference, -90 dBc/Hz Phase Noise, +4.75 Vdc, SMA

SPI Frequency Synthesizer PLL, 1 GHz to 6.4 GHz, +15 dBm Pout, 50 Hz Step, 100 MHz Reference, -90 dBc/Hz Phase Noise, +4.75 Vdc, SMA

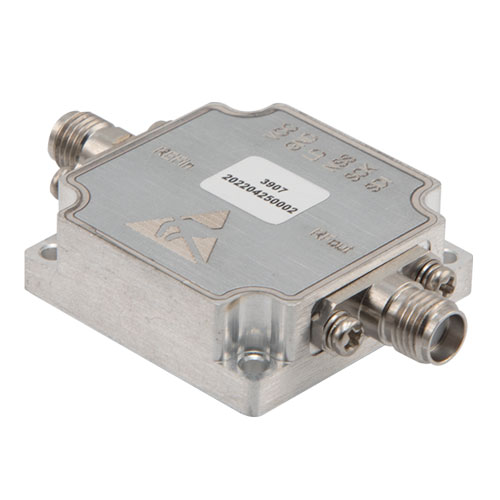

The FMSN3907 is Frequency Synthesizer module that covers a broadband frequency range from 1 GHz to 6.4 GHz and produces > +18 dBm output power. The 50 ohm design provides high resolution with a 50 MH...

The FMSN3907 is Frequency Synthesizer module that covers a broadband frequency range from 1 GHz to 6.4 GHz and produces > +18 dBm output power. The 50 ohm design provides high resolution with a 50 MHz output frequency step size, and supports a 100 MHz External Reference for design flexiblity. Impressive typical performance includes low Spurious Rejection of -62 dBc, and low Phase Noise of -90 dBc/Hz @ 1 kHz offset. Operating Voltage is +5 Vdc with 200 mA current. The rugged ultra small size package design supports field replaceable SMA female connectors and can be drop mounted onto a PWB, with DC bias pins, and a TTL controlled Lock pin. Additonal pins for command control functions through a serial peripheral interface (SPI) for signal enable, clock signal, and data. The module operates across a wide temperature range of -40°C to +85°C, and can withstand relative humidity exposure up to 95% maximum.

Expand

SKU FMSN3907 FMSN3907 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

SPI

Mode

Integer/Fractional

Reference

External

Min Frequency

1 MHz

Max Frequency

6.4 MHz

Step

50 Hz

Phase Noise @ 1kHz Offset, Typ

-90 dBc/Hz

Spurious, Typ

-62 dBc

Supply Voltage 1, Typ

5 V

Supply Current 1, Typ

200 mA

Output Power, Min

15 dBm

Control/Tuning Interface

Serial, TTL

Package Family (PCB, Coaxial)

Coaxial

Reference Input Connector Series

SMA

Reference Input Connector Gender

Female

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

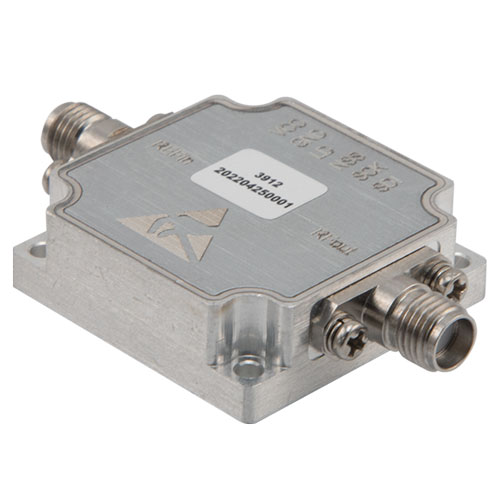

spi-frequency-synthesizer-pll-1-6.4-ghz-sma-fmsn3912 Fairview Microwave FMSN3912

1 available

SPI Frequency Synthesizer PLL, 1 GHz to 6.4 GHz, +15 dBm Pout, 1 Hz Step, 100 MHz Reference, -90 dBc/Hz Phase Noise, +4.75 Vdc, SMA

Compare

SKU FMSN3912

Starting price $4,020.00

Estimated shipment Next Business Day

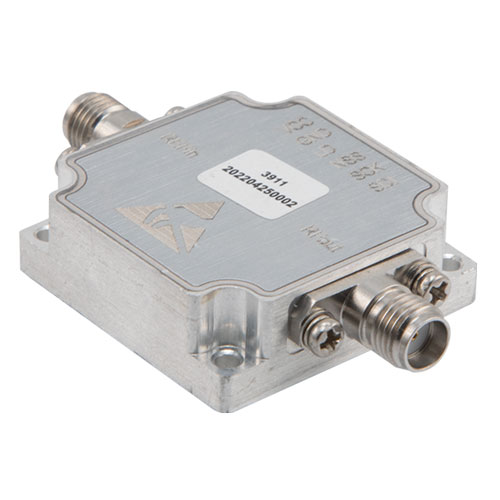

spi-frequency-synthesizer-pll-1-6.4-ghz-sma-fmsn3911 Fairview Microwave FMSN3911

1 available

SPI Frequency Synthesizer PLL, 1 GHz to 6.4 GHz, +15 dBm Pout, 5 Hz Step, 100 MHz Reference, -90 dBc/Hz Phase Noise, +4.75 Vdc, SMA

Compare

SKU FMSN3911

Starting price $4,020.00

Estimated shipment Next Business Day

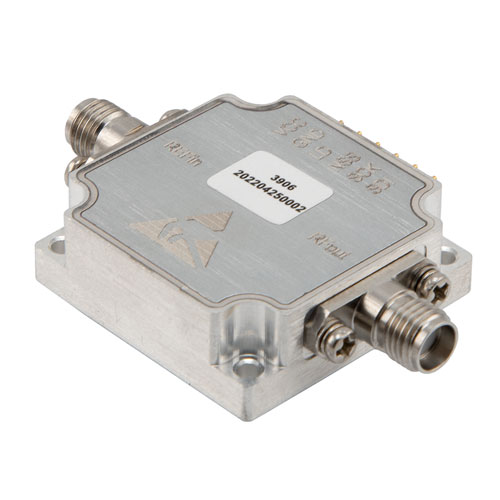

spi-frequency-synthesizer-pll-1-6.4-ghz-sma-fmsn3906 Fairview Microwave FMSN3906

1 available

SPI Frequency Synthesizer PLL, 1 GHz to 6.4 GHz, +15 dBm Pout, 100 Hz Step, 100 MHz Reference, -90 dBc/Hz Phase Noise, +4.75 Vdc, SMA

Compare

SKU FMSN3906

Starting price $4,020.00

Estimated shipment Next Business Day

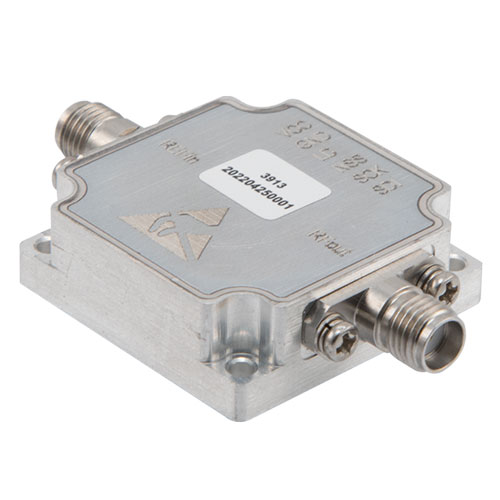

spi-frequency-synthesizer-pll-1-6.4-ghz-sma-fmsn3913 Fairview Microwave FMSN3913
