Negative Slope Equalizer, 8 GHz to 12 GHz, 3 dB Fixed Equalizing Value, 0.3 dB Loss, Max Pin 250 mW, SMA

Negative Slope Equalizer, 8 GHz to 12 GHz, 3 dB Fixed Equalizing Value, 0.3 dB Loss, Max Pin 250 mW, SMA

Name: Negative Slope Equalizer, 8 GHz to 12 GHz, 3 dB Fixed Equalizing Value, 0.3 dB Loss, Max Pin 250 mW, SMA
Brand: Fairview Microwave, Inc.
SKU: FMAT9032
Price: 1770.0 USD
Availability: InStock

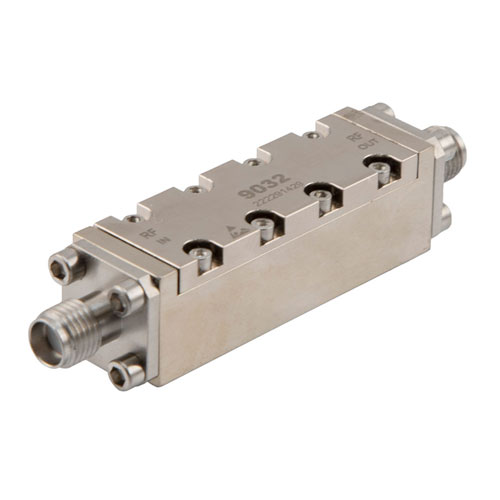

The FMAT9032 is a Negative Slope Equalizer module that covers a frequency range from 8 GHz to 12 GHz and exhibits a fixed attenuation response that decreases linearly with frequency. The 50 Ohm...

The FMAT9032 is a Negative Slope Equalizer module that covers a frequency range from 8 GHz to 12 GHz and exhibits a fixed attenuation response that decreases linearly with frequency. The 50 Ohm design has an equalizing value of 3 dB typical at 12 GHz. Negative slope equalizers are particularly useful in compensating the gain slope in systems where large amounts of cabling may cause exessive loss at higher frequencies over the operating band. Impressive typical performance includes low insertion loss of 0.3 dB, 1.8:1 VSWR, +/- 0.5 dB linearity, and maximum RF input power handling of +24 dBm. The rugged and compact package design supports field replaceable SMA female connectors, operates across a wide temperature range of -55°C to +95°C, and meets MIL-E-5400 and MIL-E-16400 environmental requirements.

Expand

SKU FMAT9032 FMAT9032 -0

QTY available 1

Price $1,770.00

Quantity Price

1-4$1,770.00

5-9$1,699.20

10-24$1,628.40

25-99$1,557.60

100-249$1,486.80

250+$1,486.80Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

4-ghz-to-12-ghz-field-replaceable-sma-Aegative-slope-equalizer-fmat9029 Fairview Microwave FMAT9029

4 available

Negative Slope Equalizer, 4 GHz to 12 GHz, 9 dB Fixed Equalizing Value, 0.3 dB Loss, Max Pin 250 mW, SMA

Compare

SKU FMAT9029

Starting price $1,820.00

Estimated shipment Tomorrow

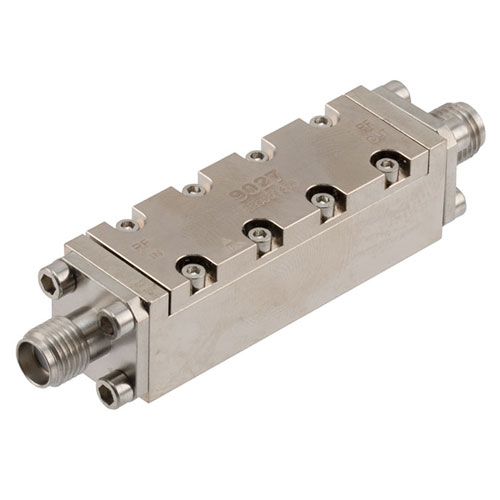

4-ghz-to-12-ghz-field-replaceable-sma-Aegative-slope-equalizer-fmat9027 Fairview Microwave FMAT9027

1 available

Negative Slope Equalizer, 4 GHz to 12 GHz, 3 dB Fixed Equalizing Value, 0.6 dB Loss, Max Pin 250 mW, SMA

Compare

SKU FMAT9027

Starting price $1,770.00

Estimated shipment Tomorrow

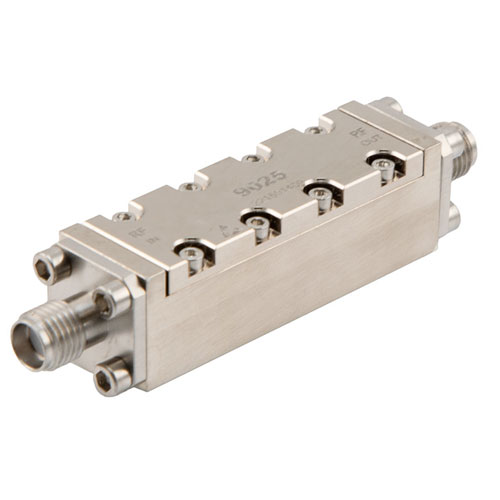

4-ghz-to-8-ghz-field-replaceable-sma-Aegative-slope-equalizer-fmat9025 Fairview Microwave FMAT9025

1 available

Negative Slope Equalizer, 4 GHz to 8 GHz, 3 dB Fixed Equalizing Value, 0.6 dB Loss, Max Pin 250 mW, SMA

Compare

SKU FMAT9025

Starting price $597.86

Estimated shipment Tomorrow

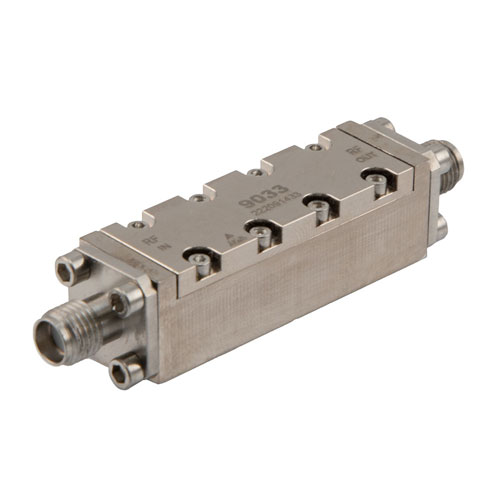

8-ghz-to-12-ghz-field-replaceable-sma-Aegative-slope-equalizer-fmat9033 Fairview Microwave FMAT9033
