Matching Pad 50 Ohm SMA Female to 75 Ohm F Male Operating from 0.009 to 3 GHz

Matching Pad 50 Ohm SMA Female to 75 Ohm F Male Operating from 0.009 to 3 GHz

Name: Matching Pad 50 Ohm SMA Female to 75 Ohm F Male Operating from 0.009 to 3 GHz
Brand: Fairview Microwave, Inc.
SKU: FMMP1005
Price: 163.99 USD
Availability: InStock

The FMMP1005 50 Ohm SMA female to 75 Ohm F-type male RF impedance matching pad is just one product of a large selection of coaxial impedance matching components from Fairview Microwave. This impedance...

The FMMP1005 50 Ohm SMA female to 75 Ohm F-type male RF impedance matching pad is just one product of a large selection of coaxial impedance matching components from Fairview Microwave. This impedance matching pad is used to match the different impedances between two devices, maximizing power transfer between the two impedances. This SMA to F-type RF matching pad is stocked to be readily available for same-business-day shipment. Fairview Microwave’s SMA female to F-type male matching pad allows impedance matching between 50 Ohm and 75 Ohm systems without introducing a lot of reflection to the circuit. Our FMMP1005 RF impedance matching pad can operate at frequencies ranging from 0.009 MHz to 3 GHz. Our matching pad has a length of 2.13 inches, a width of 0.81 inches, and a weight of 0.12 lbs. The FMMP1005 50 Ohm to 75 Ohm matching pad has copper body material. Additional dimensions and specifications for this RF impedance matching pad are on our downloadable PDF datasheet above. Fairview Microwave has one of the largest in-stock selections of 50 Ohm to 75 Ohm matching pads for international and domestic orders. Place your online order now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal SMA female to F-type male RF impedance matching pad for your requirements.

Expand

SKU FMMP1005 FMMP1005 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

SMA

Connector In Gender

Female

Connector In Impedance

50 Ohm

Connector Out Series

F

Connector Out Gender

Male

Connector Out Impedence

75 Ohm

Minimum Frequency

0.009 MHz

Maximum Frequency

3 GHz

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

matching-pad-50-ohm-sma-male-75-ohm-f-female-2-ghz-si1591 Fairview Microwave SI1591

Call us

Matching Pad 50 Ohm SMA Male to 75 Ohm F Female Operating from DC to 2 GHz

Compare

SKU SI1591

Starting price $51.99

Estimated shipment Call Us

matching-pad-50-ohm-sma-male-75-ohm-f-female-3-ghz-fmmp1006 Fairview Microwave FMMP1006

27 available

Matching Pad 50 Ohm SMA Male to 75 Ohm F Female Operating from 0.009 to 3 GHz

Compare

SKU FMMP1006

Starting price $153.99

Estimated shipment Tomorrow

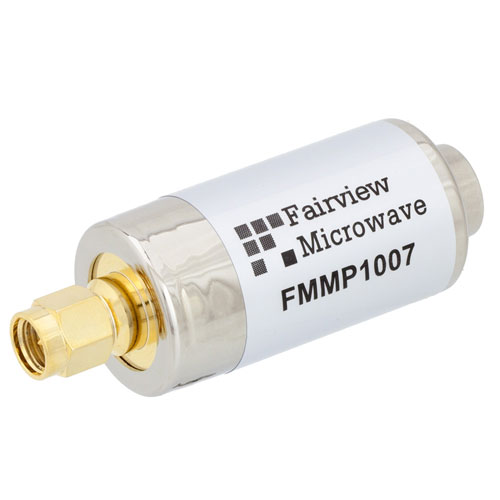

matching-pad-50-ohm-sma-male-75-ohm-f-male-3-ghz-fmmp1007 Fairview Microwave FMMP1007
