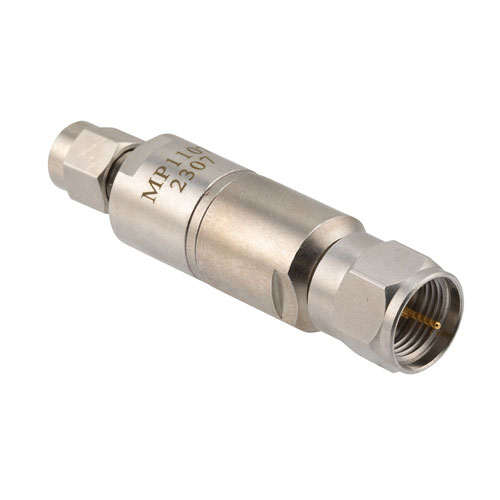

Matching Pad 50 Ohm SMA Male to 75 Ohm F Male Operating from DC to 3 GHz

Matching Pad 50 Ohm SMA Male to 75 Ohm F Male Operating from DC to 3 GHz

Name: Matching Pad 50 Ohm SMA Male to 75 Ohm F Male Operating from DC to 3 GHz
Brand: Fairview Microwave, Inc.
SKU: FMMP1107
Price: 123.99 USD
Availability: InStock

Fairview Microwave's FMMP1107 is a 50 ohm SMA male to 75 ohm F male matching pad that operates from DC to 3 GHz. This SMA to F impedance matching pad offers a low VSWR of 1.25:1 max and attenuat...

Fairview Microwave's FMMP1107 is a 50 ohm SMA male to 75 ohm F male matching pad that operates from DC to 3 GHz. This SMA to F impedance matching pad offers a low VSWR of 1.25:1 max and attenuation of 7.5 dB max. FMMP1107 50 ohm to 75 ohm minimum loss pad has a maximum CW power rating of 0.5 Watt. Matching pads are used to match the different impedance between two devices, maximizing power transfer between the two impedances. Fairview Microwave's minimum loss impedance matching pads are available in various connector combinations to fit your needs, all of which ship the same day.

Expand

SKU FMMP1107 FMMP1107 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

SMA

Connector In Gender

Male

Connector In Impedance

50 Ohm

Connector Out Series

F

Connector Out Gender

Male

Connector Out Impedence

75 Ohm

Minimum Frequency

DC

Maximum Frequency

3 GHz

Maximum VSWR

1.25:1

Maximum Attenuation

7.5 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

matching-pad-sma-f-3-mhz-fmmp1108 Fairview Microwave FMMP1108

3 available

Matching Pad 50 Ohm SMA Male to 75 Ohm F Female Operating from DC to 3 GHz

Compare

SKU FMMP1108

Starting price $123.99

Estimated shipment Next Business Day

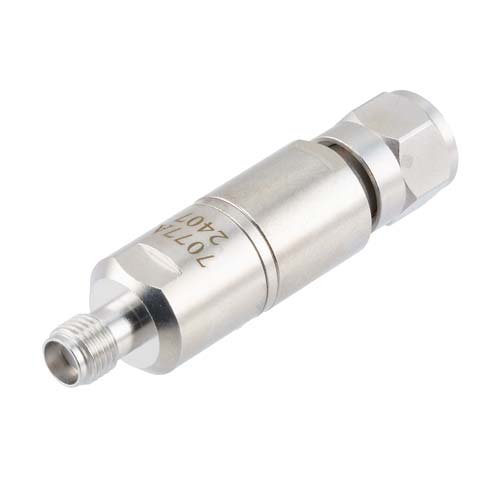

matching-pad-50-ohm-sma-female-75-ohm-f-male-3-ghz-fm7077a Fairview Microwave FM7077A

1 available

Matching Pad 50 Ohm SMA Female to 75 Ohm F Male Operating from DC to 3 GHz

Compare

SKU FM7077A

Starting price $115.99

Estimated shipment Next Business Day

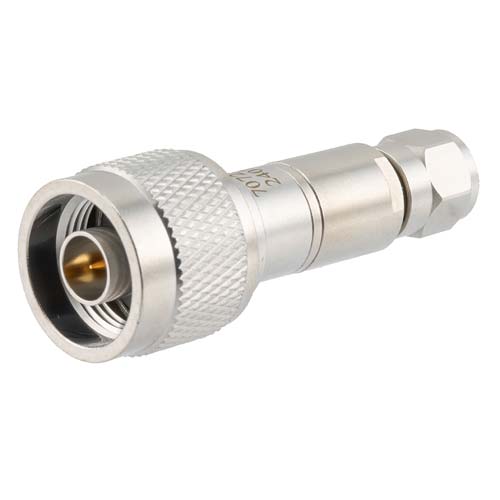

matching-pad-50-ohm-n-male-75-ohm-f-male-3-ghz-fm7072a Fairview Microwave FM7072A
