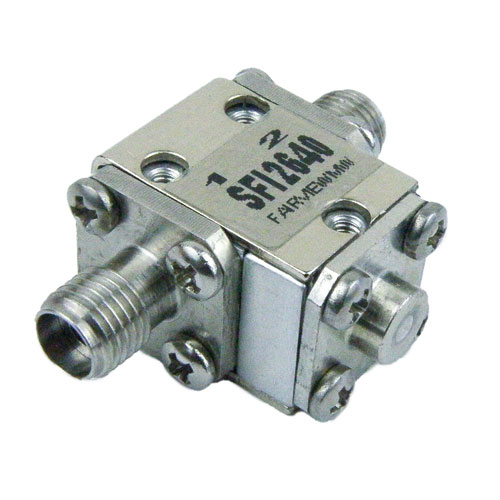

Isolator 2.92mm Female With 14 dB Isolation From 26.5 GHz to 40 GHz Rated to 5 Watts

Isolator 2.92mm Female With 14 dB Isolation From 26.5 GHz to 40 GHz Rated to 5 Watts

Name: Isolator 2.92mm Female With 14 dB Isolation From 26.5 GHz to 40 GHz Rated to 5 Watts
Brand: Fairview Microwave, Inc.
SKU: SFI2640
Price: 1860.0 USD
Availability: OutOfStock

RF isolator SFI2640 from Fairview is just part of a large number of radio frequency components specifically stocked to be highly available for rapid shipment. Fairview Microwave isolator is manufactur...

RF isolator SFI2640 from Fairview is just part of a large number of radio frequency components specifically stocked to be highly available for rapid shipment. Fairview Microwave isolator is manufactured with 2.92mm connectors that are female. This coaxial 2.92mm isolator design is rated for a minimum frequency of 26.5 GHz and a maximum frequency of 40 GHz.Fairview Microwave 2.92mm female isolator part number SFI2640 has a minimum isolation of 14 dB and a maximum input power of 5 Watts. Inertion loss of this RF isolator is a maximum of 1.75 dB. Additional RF specs for this Fairview Microwave component can be found on its isolator datasheet specifications PDF above.Our RF connectorized circulator is just part of more than one million RF, microwave and millimeter wave components we stock. This RF isolator with 2.92mm connectors is ready to buy and be shipped worldwide. Fairview also stocks a wide selection of other radio frequency coaxial isolators that ship same-day from our warehouse along with rest of our RF, microwave and millimeter wave components.

Expand

SKU SFI2640 SFI2640 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMIR1036

Key specifications

Datasheet

View All

Connector In Series

2.92mm

Connector In Gender

Female

Connector Out Series

2.92mm

Minimum Frequency

26.5 GHz

Maximum Frequency

40 GHz

Impedance

50 Ohm

Maximum Insertion Loss

1.75 dB

Maximum Input Power

5 Watts

Minimum Isolation

14 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

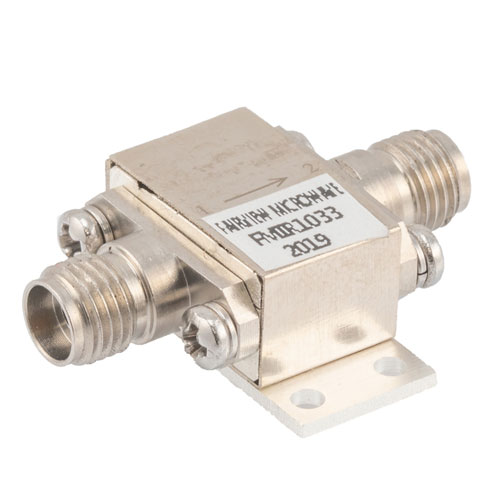

isolator-2.92mm-female-14db-isolation-26.5-ghz-10-watts-fmir1033 Fairview Microwave FMIR1033

4 available

Isolator 2.92mm Female with 14 dB Isolation from 18 GHz to 26.5 GHz Rated to 10 Watts

Compare

SKU FMIR1033

Starting price $985.00

Estimated shipment Today

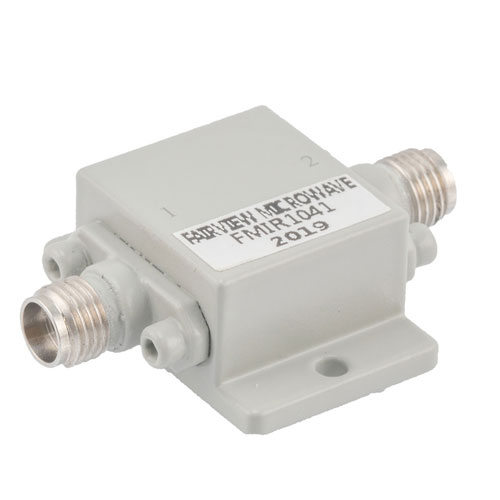

isolator-2.92mm-female-14db-isolation-26.5-ghz-10-watts-fmir1041 Fairview Microwave FMIR1041

Call us

Isolator 2.92mm Female, Hermetically Sealed with 14 dB Isolation from 18 GHz to 26.5 GHz Rated to 10 Watts

Compare

SKU FMIR1041

Starting price $811.43

Estimated shipment Call Us

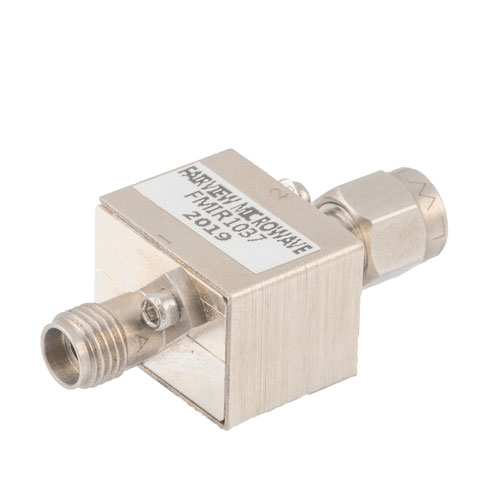

isolator-2.92mm-female-12db-isolation-40-ghz-10-watts-fmir1037 Fairview Microwave FMIR1037

1 available

Isolator 2.92mm Female to 2.92mm Male with 12 dB Isolation from 26.5 GHz to 40 GHz Rated to 10 Watts

Compare

SKU FMIR1037

Starting price $1,070.00

Estimated shipment Today

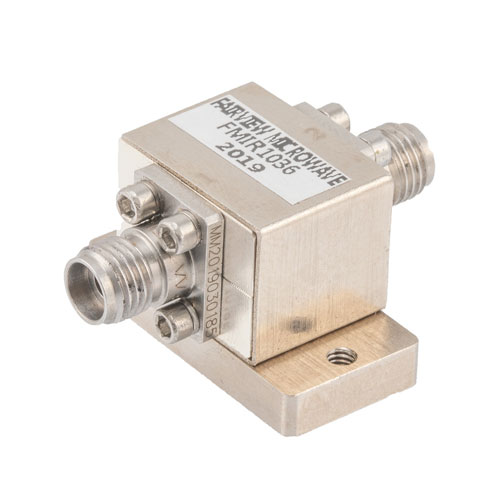

isolator-2.92mm-female-12db-isolation-40-ghz-10-watts-fmir1036 Fairview Microwave FMIR1036

10 available

Isolator 2.92mm Female with 12 dB Isolation from 26.5 GHz to 40 GHz Rated to 10 Watts

Compare

SKU FMIR1036

Starting price $1,080.00

Estimated shipment Today
