High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz

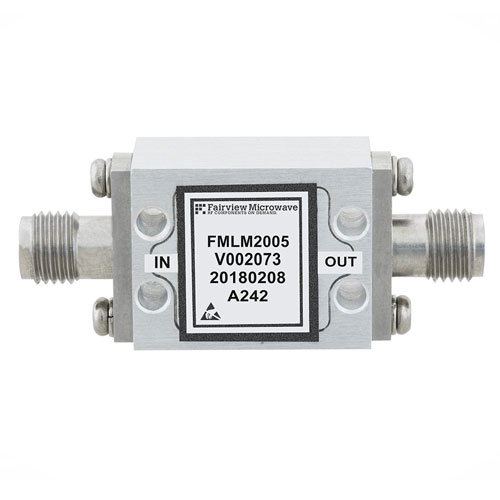

Fairview Microwave’s FMLM2005 is a high power field replaceable broadband signal limiter that ships same day worldwide. High power field replaceable limiter FMLM2005 has SMA female to SMA female type ...

Fairview Microwave’s FMLM2005 is a high power field replaceable broadband signal limiter that ships same day worldwide. High power field replaceable limiter FMLM2005 has SMA female to SMA female type connectors with a compact and rugged, thin-film construction. This SMA series limiter has a maximum peak power of 100W at 10µs Pulse Width 5% Duty Cycle and we keep it in-stock constantly. The FMLM2005 SMA to SMA limiter has a typical recovery time of 15,000 ns. This industry-leading 100W high power limiter features a maximum insertion loss of 2 dB.FMLM2005 2 dB limiter with 100W max power, has a minimum operational temperature range of 0 degrees C to a maximum of 50°C. Off-the-shelf online or by phone, we ship these high-quality SMA to SMA limiters with a broadband frequency of 500 MHz – 18 GHz around the globe. Our 100W high power field replaceable limiter at 10µs Pulse Width 5% Duty Cycle has a 15,000 ns recovery time and is intended for use in applications like microwave radio, VSAT, SATCOM, radar and space systems.18 GHz 100W high-reliability field replaceable limiter meets US Department of Defense environmental test methods for vibration of MIL-STD-202F, Method 204D, Condition B and a humidity of MIL-STD-202F, Method 103B, Condition B. Fairview Microwave’s high power 15,000 ns RF limiter has an average input power of 5 and a military grade package design. Contact Fairview Microwave’s expert technical support for assistance with FMLM2005 high power 50°C broadband limiter. Download our 100W high power field replaceable FMLM2005 PDF datasheet with specifications and CAD drawing with dimensions for details. Our knowledgeable sales team simplifies the purchasing process and ensures that your SMA female to SMA female power limiter will be exact to spec.Fairview Microwave was founded in 1992 and has since become reputable suppliers for 500 (MHz) – 18 (GHz) high power field replaceable 2 insertion loss limiters and electronic components. Limiter FMLM2005 by Fairview Microwave has a max leakage of 18 dBm and is just one of more than 1 million RF, microwave and limiter parts we stock. This SMA female to female 5W average power limiter is ready to buy and can be shipped worldwide. Order your high power field replaceable 100W limiter online today; there is no MOQ (minimum order quantity) and we provide same-day shipping.

Expand

SKU FMLM2005 FMLM2005 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

SMA

Connector In Gender

Female

Connector Out Series

SMA

Connector Out Gender

Female

Minimum Frequency

500 MHz

Maximum Frequency

18 GHz

Maximum Insertion Loss

2 dB

Design Type

High Power

Peak Power

100 Watt

Connector Option

Field Replaceable

Leakage (CW)

18 dBm

Recovery Time

15,000 ns

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

high-power-limiter-field-replaceable-sma-100w-peak-power-15-us-recovery-14-dbm-flat-leakage-2-ghz-to-18-ghz-fmlm2006 Fairview Microwave FMLM2006

5 available

High Power Limiter, Field Replaceable SMA, 20W Peak Power, 15 us Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz

Compare

SKU FMLM2006

Starting price $724.32

Estimated shipment Today

1 available

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 8 GHz to 12 GHz

Compare

SKU FMLM2004

Starting price $920.00

Estimated shipment Today

Call us

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 20 MHz to 4 GHz

Compare

SKU FMLM2003

Starting price $1,800.00

Estimated shipment Call Us

1 available

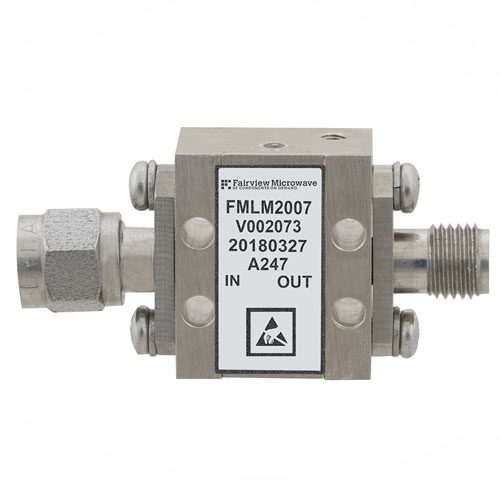

High Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 18 GHz to 40 GHz
