2.92mm Mixer from 16 GHz to 30 GHz with an IF Range from DC to 8 GHz and LO Power of +13 dBm

2.92mm Mixer from 16 GHz to 30 GHz with an IF Range from DC to 8 GHz and LO Power of +13 dBm

RF mixer part number FMMX1030 is one product of a selection of coaxial radio frequency mixer components supplied by Fairview Microwave and is double balanced. This coaxial RF double balanced mixer des...

RF mixer part number FMMX1030 is one product of a selection of coaxial radio frequency mixer components supplied by Fairview Microwave and is double balanced. This coaxial RF double balanced mixer design is built with 2.92mm connectors that are female gender. This 2.92mm mixer is manufactured with a impedance and has a RF to LO isolation of 32 dB.Fairview Microwave radio frequency double balanced mixer was designed for a RF frequency range of 16 GHz for the minimum and 30 GHz for the maximum. Double balanced mixer part number FMMX1030 has a LO frequency range minimum of 16 GHz and a LO Frequency maximum of 30 GHz. This double balanced frequency mixer has an IF frequency minimum of DC and 8 GHz for a maximum. Additional coaxial RF mixer design specs for this radio frequency component can be found on its double balanced mixer PDF specifications datasheet above.This is where to buy a connectorized RF double balanced mixer with 2.92mm connectors operating from 16 GHz to 30 GHz. Fairview also stocks a very large selection of other RF parts that will ship the same day from our location. Radio frequency microwave and millimeter wave mixer components and other Fairview supplied RF parts are in stock and ship same-day from our warehouse inventory.

Expand

SKU FMMX1030 FMMX1030 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

RF Connector Series

2.92mm

RF Connector Gender

Female

LO Connector Series

2.92mm

LO Connector Gender

Female

IF Connector Series

SMA

IF Connector Gender

Female

RF Minimum Frequency

16 GHz

RF Maximum Frequency

30 GHz

LO Minimum Frequency

16 GHz

LO Maximum Frequency

30 GHz

IF Minimum Frequency

DC

IF Maximum Frequency

8 GHz

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

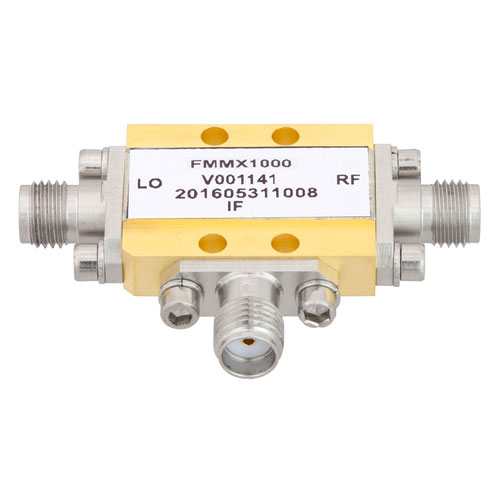

field-replaceable-2.92mm-mixer-13-dbm-fmmx1000 Fairview Microwave FMMX1000

1 available

Field Replaceable 2.92mm Mixer From 16 GHz to 32 GHz With an IF Range From DC to 8 GHz And LO Power of +13 dBm

Compare

SKU FMMX1000

Starting price $1,346.72

Estimated shipment Today

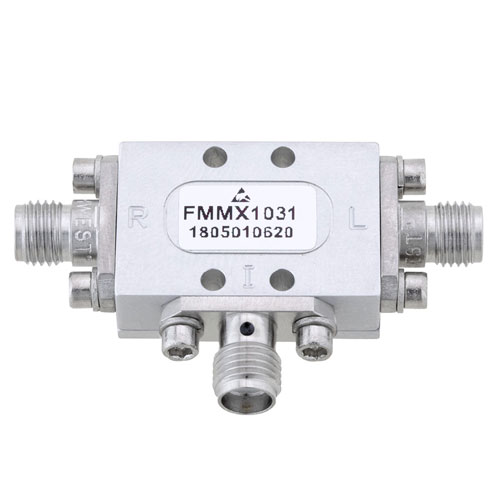

2.92mm-mixer-13-dbm-fmmx1031 Fairview Microwave FMMX1031

6 available

2.92mm Mixer from 24 GHz to 32 GHz with an IF Range from DC to 8 GHz and LO Power of +13 dBm

Compare

SKU FMMX1031

Starting price $524.29

Estimated shipment Today

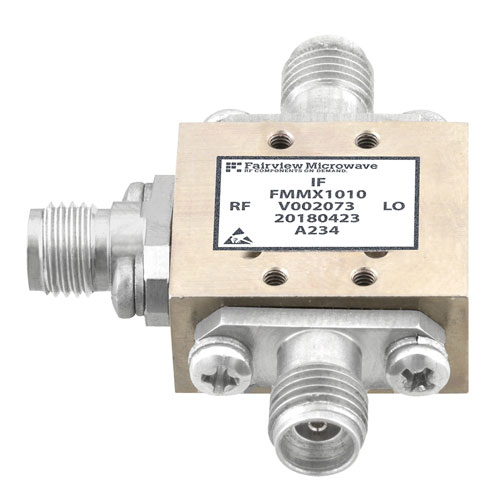

field-replaceable-2.92mm-mixer-13-dbm-fmmx1010 Fairview Microwave FMMX1010

1 available

Field Replaceable 2.92mm Mixer from 24 GHz to 40 GHz with an IF Range from DC to 18 GHz and LO Power of +13 dBm

Compare

SKU FMMX1010

Starting price $1,209.75

Estimated shipment Today

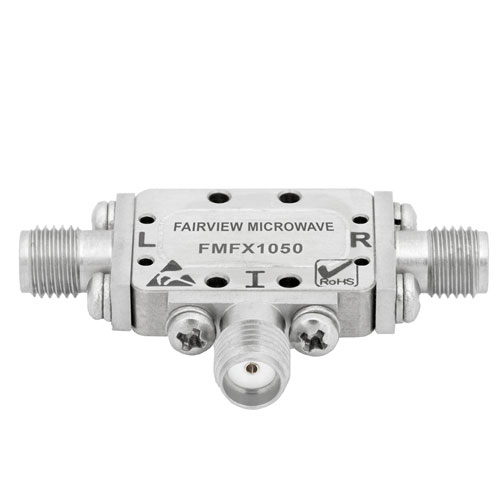

sma-mixer-10-dbm-fmfx1050 Fairview Microwave FMFX1050
