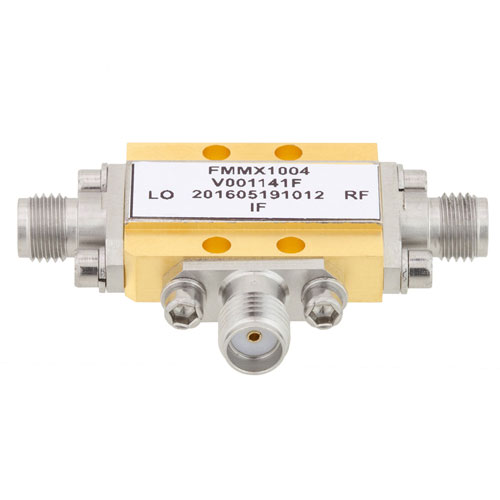

Field Replaceable 2.92mm Mixer From 11 GHz to 20 GHz With an IF Range From DC to 6 GHz And LO Power of +13 dBm

Field Replaceable 2.92mm Mixer From 11 GHz to 20 GHz With an IF Range From DC to 6 GHz And LO Power of +13 dBm

RF mixer part number FMMX1004 is one product of a selection of coaxial radio frequency mixer components supplied by Fairview Microwave and is double balanced. This coaxial RF double balanced mixer des...

RF mixer part number FMMX1004 is one product of a selection of coaxial radio frequency mixer components supplied by Fairview Microwave and is double balanced. This coaxial RF double balanced mixer design is built with 2.92mm connectors that are female gender. This 2.92mm mixer is manufactured with a impedance and has a RF to LO isolation of dB.Fairview Microwave radio frequency double balanced mixer was designed for a RF frequency range of 11 GHz for the minimum and 20 GHz for the maximum. Double balanced mixer part number FMMX1004 has a LO frequency range minimum of 11 GHz and a LO Frequency maximum of 20 GHz. This double balanced frequency mixer has an IF frequency minimum of DC and 6 GHz for a maximum. Additional coaxial RF mixer design specs for this radio frequency component can be found on its double balanced mixer PDF specifications datasheet above.This is where to buy a connectorized RF double balanced mixer with 2.92mm connectors operating from 11 GHz to 20 GHz. Fairview also stocks a very large selection of other RF parts that will ship the same day from our location. Radio frequency microwave and millimeter wave mixer components and other Fairview supplied RF parts are in stock and ship same-day from our warehouse inventory.

Expand

SKU FMMX1004 FMMX1004 -0

QTY available 1

Price $1,930.00

Quantity Price

1-4$1,930.00

5-9$1,852.80

10-24$1,775.60

25-99$1,698.40

100-249$1,621.20

250+$1,621.20Please call for quote

All Prices are in US Dollars and do not include duties

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

RF Connector Series

2.92mm

RF Connector Gender

Female

LO Connector Series

2.92mm

LO Connector Gender

Female

IF Connector Series

SMA

IF Connector Gender

Female

RF Minimum Frequency

11 GHz

RF Maximum Frequency

20 GHz

LO Minimum Frequency

11 GHz

LO Maximum Frequency

20 GHz

IF Minimum Frequency

DC

IF Maximum Frequency

6 GHz

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
