Amplified Noise Source Module With a Noise Output Pout of 10 dBm, and a Voltage of +15 VDC, Operating From 0.1 MHz to 500 MHz With SMA

Amplified Noise Source Module With a Noise Output Pout of 10 dBm, and a Voltage of +15 VDC, Operating From 0.1 MHz to 500 MHz With SMA

Name: Amplified Noise Source Module With a Noise Output Pout of 10 dBm, and a Voltage of +15 VDC, Operating From 0.1 MHz to 500 MHz With SMA
Brand: Fairview Microwave, Inc.
SKU: FNNA1010
Price: 1450.0 USD
Availability: OutOfStock

The FNNA1010 is a coaxial packaged Amplified Noise Source module which operates over a wide frequency range from 0.1 MHz to 500 MHz. The high Crest Factor design generates an output power level of +1...

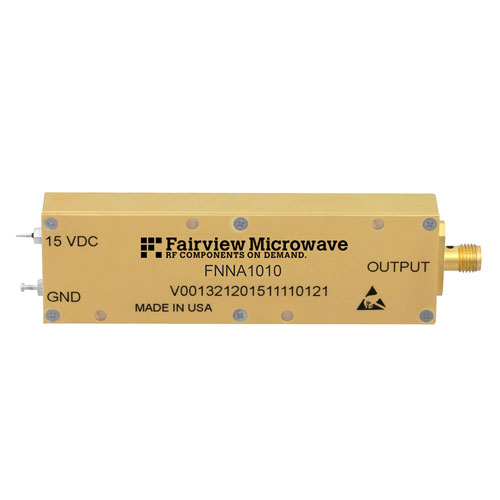

The FNNA1010 is a coaxial packaged Amplified Noise Source module which operates over a wide frequency range from 0.1 MHz to 500 MHz. The high Crest Factor design generates an output power level of +10 dBm with +/- 1.5 dB typical flatness and is ideal for Bit Error Rate (BER) testing for wireless test applications, as well as for Noise Figure measurements and a variety of built-in test applications. Noise power is -77 dBm/Hz and the temperature coefficient is 0.025 dB/°C. The input voltage is +15 Vdc which is internally regulated and the operational temperature range is -40°C to +100°C. The rugged package design supports an output Female SMA connector with an EMI/RFI filter voltage pin and ground tab. Additionally, the model is designed to meet a variety of demanding MIL-STD-202F environmental test conditions including Humidity, Thermal Shock, and Vibration for added confidence for highly reliable operation.

Expand

SKU FNNA1010 FNNA1010 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

DC Input Connector Series

Impedance

50 Ohm

RF Output Connector Series

SMA

RF Output Gender

Female

Minimum Frequency

0.1 MHz

Maximum Frequency

500 MHz

Bias Voltage

18 Volts

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
