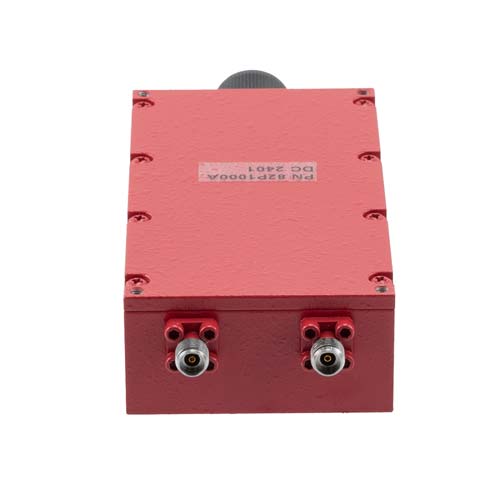

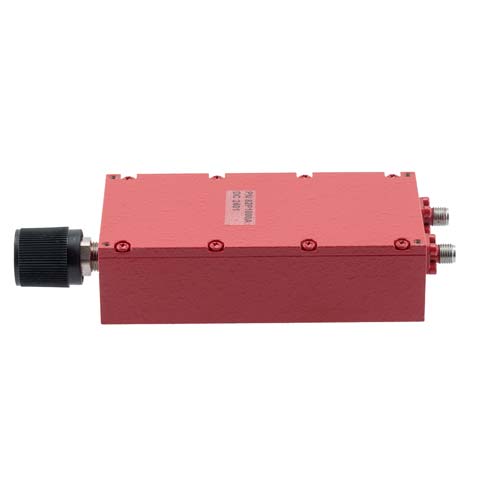

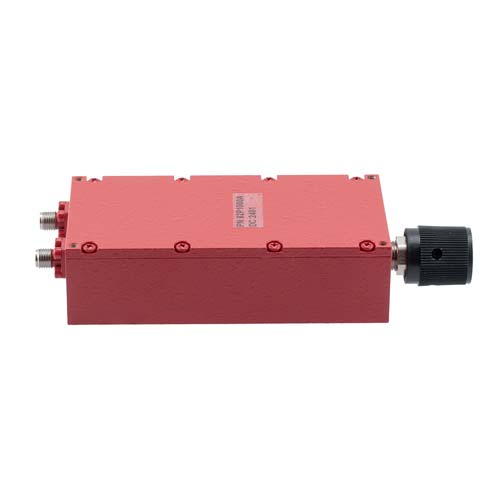

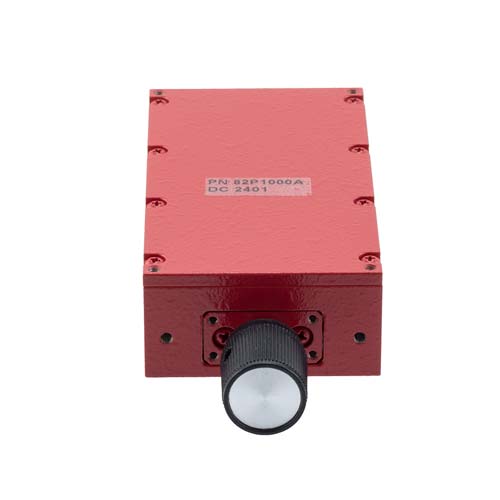

2.92mm Variable Phase Shifter with an Adjustable Phase Range of 360 Degrees Minimum and from 18 GHz to 40 GHz

2.92mm Variable Phase Shifter with an Adjustable Phase Range of 360 Degrees Minimum and from 18 GHz to 40 GHz

Name: 2.92mm Variable Phase Shifter with an Adjustable Phase Range of 360 Degrees Minimum and from 18 GHz to 40 GHz
Brand: Fairview Microwave, Inc.
SKU: FM82P1000A
Price: 2730.0 USD
Availability: InStock

The coaxial RF adjustable phase shifter FM82P1000A is just one of a large number of radio frequency components specifically stocked to be ready for quick shipment. Fairview Microwave’s RF adjustable p...

The coaxial RF adjustable phase shifter FM82P1000A is just one of a large number of radio frequency components specifically stocked to be ready for quick shipment. Fairview Microwave’s RF adjustable phase shifter is manufactured with 2.92mm female connectors and has an impedance of 50 Ohms. This adjustable phase shifter is rated for a minimum frequency of 18 GHz and a maximum frequency of 40 GHz.Fairview Microwave’s adjustable phase shifter has a maximum input power of 100 Watts (CW). The RF specs for this Fairview Microwave phase shifting component can be found on its radio frequency phase shifter PDF specifications above. The FM82P1000A adjustable phase shifter available from Fairview Microwave has an aluminum-plated housing. This 50 Ohms adjustable phase shifter offers a maximum insertion loss of 2.5 dB. The RF adjustable phase shifter is rated for a maximum VSWR of 2:1.Fairview Microwave’s adjustable phase shifter is one radio frequency component of more than one million microwave and millimeter wave RF parts in stock. Fairview Microwave is where to buy an adjustable phase shifter for quick service and easy worldwide shipment. We also stock a wide selection of other radio frequency phase shifting products that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU FM82P1000A FM82P1000A -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

2.92mm

Connector In Gender

Female

Connector In Impedance

50 Ohm

Connector Out Series

2.92mm

Connector Out Gender

Female

Maximum VSWR

2:1

Maximum Insertion Loss

2.5 dB

Maximum Power

100 Watts

Peak Power

3,000 Watts

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
