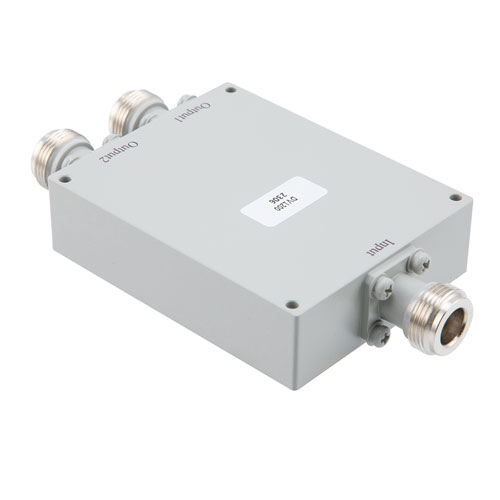

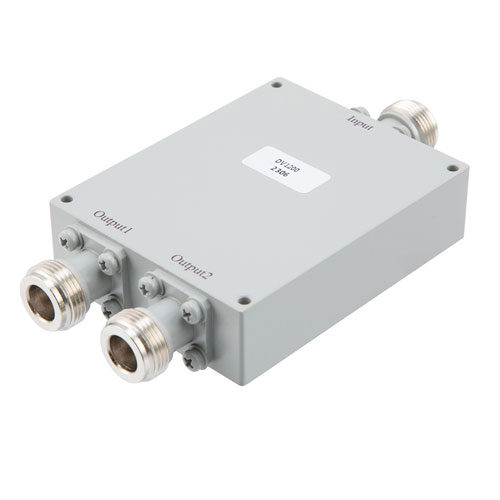

2 way Power Divider N Connectors from 216 MHz to 450 MHz Rated at 50 Watts

2 way Power Divider N Connectors from 216 MHz to 450 MHz Rated at 50 Watts

The RF power divider part number FMDV1200 is only one product of a wide selection of coax splitter components we supply. This Fairview Microwave power divider / splitter design is a 2 way with N-type ...

The RF power divider part number FMDV1200 is only one product of a wide selection of coax splitter components we supply. This Fairview Microwave power divider / splitter design is a 2 way with N-type connectors. Our 2 way RF power divider is rated for a minimum frequency of 216 MHz and a maximum frequency of 450 MHz. This N-type connectors RF power divider enables the splitting of a single signal into multiple signals with equal magnitude and phase. This 450 MHz power divider has 24 dB typical isolation.Our FMDV1200 N-type 2 way power divider / radio frequency splitter has a 50 Ohm impedance and a maximum input power of 50 Watts. Our RF N-type connectors power splitter / divider has a female input and 2 female output ports. This power divider has 0.2 dB maximum amplitude balance. More coaxial N-type power divider design specs for this radio frequency component can be found on its RF power splitter PDF specifications datasheet above.Fairview Microwave’s N-type female power divider has 1.3:1 maximum input VSWR along with maximum insertion loss of 0.3 dB. Our FMDV1200 2 way power divider operates in a temperature ranging from -40 deg C to 85 deg C. Our radio frequency power divider has an aluminum housing and can handle maximum reverse power up to 5 Watts.Fairview Microwave is where to buy a 2 way power divider with N-type connectors We also stock a large selection of other RF/microwave power divider products that will ship the same day from our United States location. RF / microwave and millimeter wave power divider / splitter components and other RF parts for radio frequency component connections such as transmitter/receiver equipment, antennas and others in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same-day.

Expand

SKU FMDV1200 FMDV1200 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series In

N

Connector Gender In

Female

Minimum Frequency

216 MHz

Maximum Frequency

450 MHz

Number of Output Ports

2 Port

Impedance

50 Ohm

Maximum Input Power

50 Watt

Connector Series Out

N

Connector Gender Out

Female

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99
