4 Way Power Divider N Interface from 1 GHz to 18 GHz Rated at 30 Watts

New

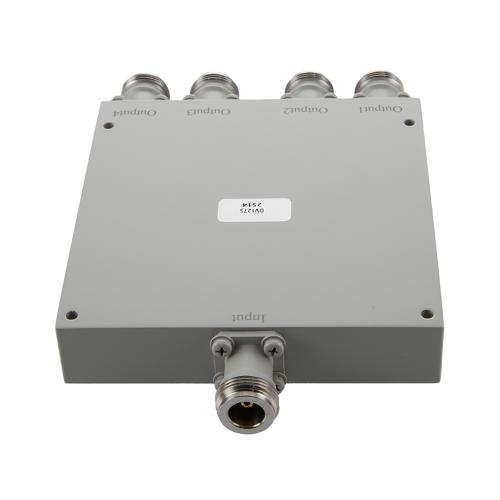

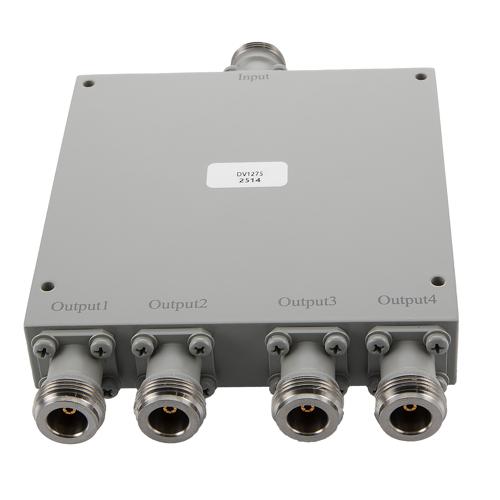

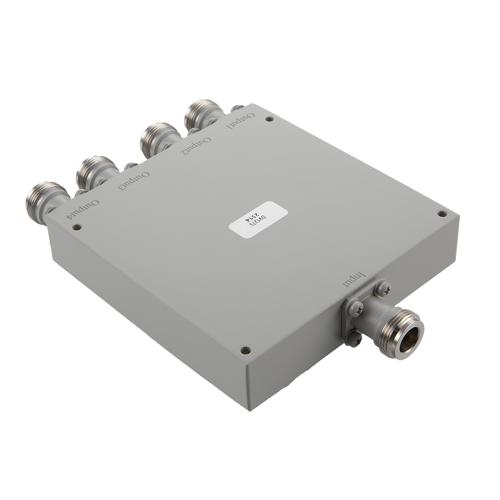

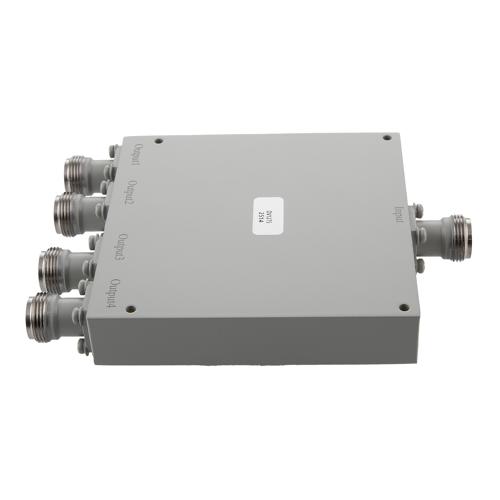

4 Way Power Divider N Interface from 1 GHz to 18 GHz Rated at 30 Watts

Name: 4 Way Power Divider N Interface from 1 GHz to 18 GHz Rated at 30 Watts
Brand: Fairview Microwave, Inc.
SKU: FMDV1275
Price: 2420.0 USD
Availability: InStock

The RF power divider part number FMDV1275 is only one product of a wide selection of coax splitter components we supply. This Fairview Microwave power divider / splitter design is a 4 way with N-type...

The RF power divider part number FMDV1275 is only one product of a wide selection of coax splitter components we supply. This Fairview Microwave power divider / splitter design is a 4 way with N-type connectors. Our 4 way RF power divider is rated for a minimum frequency of 1 GHz and a maximum frequency of 18 GHz. This N-type connectors RF power divider enables the splitting of a single signal into multiple signals with equal magnitude and phase. This 18 GHz power divider has 19 dB typical isolation.Our FMDV1275 N-type 4 way power divider / radio frequency splitter has a 50 Ohm impedance and a maximum input power of 30 Watts. Our RF N-type connectors power splitter / divider has a female input and 4 female output ports. This power divider has 0.5 dB maximum amplitude balance. More coaxial N-type power divider design specs for this radio frequency component can be found on its RF power splitter PDF specifications datasheet above.Fairview Microwave’s N-type female power divider has 1.7:1 maximum input VSWR along with maximum insertion loss of 3 dB. Our FMDV1275 4 way power divider operates in a temperature ranging from -40 deg C to 85 deg C. Our radio frequency power divider has an aluminum housing and can handle maximum reverse power up to 1 Watts.Fairview Microwave is where to buy a 4 way power divider with N-type connectors We also stock a large selection of other RF/microwave power divider products that will ship the same day from our United States location. RF / microwave and millimeter wave power divider / splitter components and other RF parts for radio frequency component connections such as transmitter/receiver equipment, antennas and others in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same-day.

Expand

SKU FMDV1275 FMDV1275 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series In

N

Connector Gender In

Female

Minimum Frequency

1 GHz

Maximum Frequency

18 GHz

Number of Output Ports

4 Port

Impedance

50 Ohm

Maximum Input Power

30 Watt

Connector Series Out

N

Connector Gender Out

Female

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
