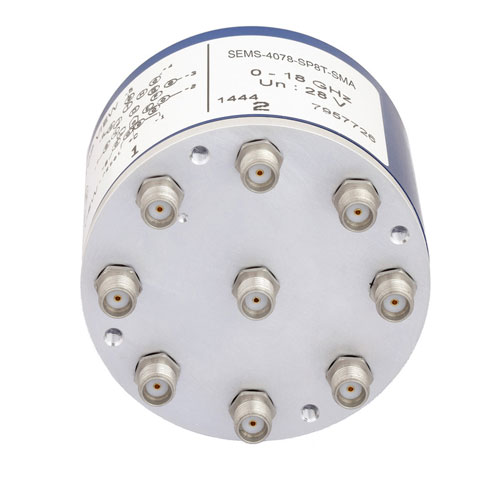

SP8T Latching DC to 18 GHz Terminated Electro-Mechanical Relay Switch, Indicators, Reset, up to 240W, 28V, SMA

SP8T Latching DC to 18 GHz Terminated Electro-Mechanical Relay Switch, Indicators, Reset, up to 240W, 28V, SMA

RF electromechanical relay coax switch part number SEMS-4078-SP8T-SMA from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF componen...

RF electromechanical relay coax switch part number SEMS-4078-SP8T-SMA from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically ready for quick shipment. This electromechanical RF relay switch is manufactured in a SP8T design (Single Pole Eight Throw) with latching actuator and SMA ports. Our coaxial SP8T electromechanical RF relay switch is rated for a maximum frequency of 18 GHz and a maximum power of 100 Watts (CW).Electromechanical relay single pole eight throw RF switch from Fairview Microwave has a control voltage of 28 Volts and a current of 125 mA. This coaxial electro-mechanical RF relay switch is rated for an insertion loss maximum of 0.6 dB and a minimum isolation of 60 dB. Features of this SP8T coaxial relay include: indicators, reset and other RF switch specs and features for this electro mechanical relay part number SEMS-4078-SP8T-SMA can be found on its radio frequency electromechanical coax relay switch specifications datasheet PDF above.Fairview Microwave is where to buy a SP8T electromechanical RF relay switch for quick shipment worldwide because this is just one of more than a million RF parts we have available. We also stock a wide selection of other radio frequency electro-mechanical switch relay products that will ship the same day. Single pole eight throw RF/microwave and millimeter wave switches for radio, antenna, other types of RF component connections in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same day from our warehouse.

Expand

SKU SEMS-4078-SP8T-SMA SEMS-4078-SP8T-SMA -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

SMA

Connector Gender

Female

Switch Design

SP8T

Minimum Frequency

DC

Maximum Frequency

18 GHz

Impedance

50 Ohm

Maximum Input Power (CW)

100 Watts

Maximum VSWR

1.6:1

Maximum Insertion Loss

0.6 dB

Minimum Isolation

60 dB

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
