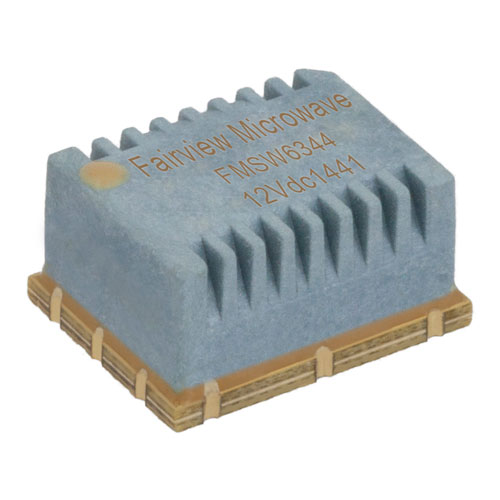

SPDT Latching DC to 8 GHz Electro-Mechanical Relay Switch, Hot Switching, up to 400W, 12V, SMT

SPDT Latching DC to 8 GHz Electro-Mechanical Relay Switch, Hot Switching, up to 400W, 12V, SMT

RF electromechanical relay coax switch part number FMSW6344 from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF components for typ...

RF electromechanical relay coax switch part number FMSW6344 from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically ready for quick shipment. This electromechanical RF relay switch is manufactured in a SPDT design (Single Pole Double Throw) with latching actuator and SMT ports. Our coaxial SPDT electromechanical RF relay switch is rated for a maximum frequency of 8 GHz and a maximum power of 35 Watts (CW).Electromechanical relay single pole double throw RF switch from Fairview Microwave has a control voltage of 12 Volts and a current of 58 mA. This coaxial electro-mechanical RF relay switch is rated for an insertion loss maximum of 0.8 dB and a minimum isolation of 30 dB. Features of this SPDT coaxial relay include: hot switching and other RF switch specs and features for this electro mechanical relay part number FMSW6344 can be found on its radio frequency electromechanical coax relay switch specifications datasheet PDF above.Fairview Microwave is where to buy a SPDT electromechanical RF relay switch for quick shipment worldwide because this is just one of more than a million RF parts we have available. We also stock a wide selection of other radio frequency electro-mechanical switch relay products that will ship the same day. Single pole double throw RF/microwave and millimeter wave switches for radio, antenna, other types of RF component connections in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same day from our warehouse.

Expand

SKU FMSW6344 FMSW6344 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Connector Series

SMT

Switch Design

SPDT

Minimum Frequency

DC

Maximum Frequency

8 GHz

Impedance

50 Ohm

Maximum Input Power (CW)

35 Watts

Maximum VSWR

1.4:1

Maximum Insertion Loss

0.8 dB

Minimum Isolation

30 dB

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
