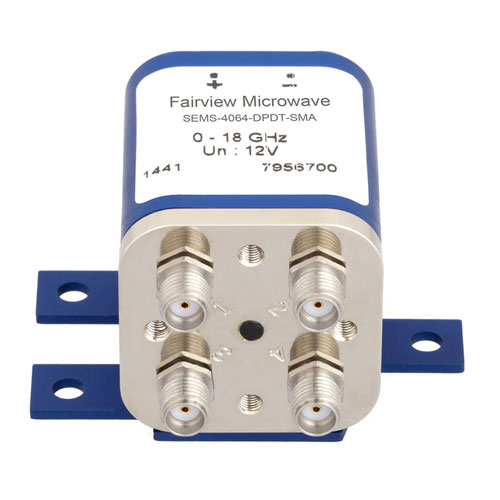

Transfer Failsafe DC to 18 GHz Electro-Mechanical Relay Switch, up to 240W, 12V, SMA

Transfer Failsafe DC to 18 GHz Electro-Mechanical Relay Switch, up to 240W, 12V, SMA

RF electromechanical relay coax switch part number SEMS-4064-DPDT-SMA from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF componen...

RF electromechanical relay coax switch part number SEMS-4064-DPDT-SMA from Fairview Microwave is one of a huge selection of coaxial switching products for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically ready for quick shipment. This electromechanical RF relay switch is manufactured in a transfer design with failsafe actuator and SMA ports. Our coaxial transfer electromechanical RF relay switch is rated for a maximum frequency of 18 GHz and a maximum power of 100 Watts (CW).Electromechanical relay transfer RF switch from Fairview Microwave has a control voltage of 12 Volts and a current of 340 mA. This coaxial electro-mechanical RF relay switch is rated for an insertion loss maximum of 0.5 dB and a minimum isolation of 60 dB. Features of this transfer coaxial relay include: other RF switch specs and features for this electro mechanical relay part number SEMS-4064-DPDT-SMA can be found on its radio frequency electromechanical coax relay switch specifications datasheet PDF above.Fairview Microwave is where to buy a transfer electromechanical RF relay switch for quick shipment worldwide because this is just one of more than a million RF parts we have available. We also stock a wide selection of other radio frequency electro-mechanical switch relay products that will ship the same day. Transfer RF/microwave and millimeter wave switches for radio, antenna, other types of RF component connections in typical use, production, test and measurement labs, military / defense, etc. are in stock and ship same day from our warehouse.

Expand

SKU SEMS-4064-DPDT-SMA SEMS-4064-DPDT-SMA -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Connector Series

SMA

Connector Gender

Female

Switch Design

Transfer

Minimum Frequency

DC

Maximum Frequency

18 GHz

Impedance

50 Ohm

Maximum Input Power (CW)

100 Watts

Maximum VSWR

1.5:1

Maximum Insertion Loss

0.5 dB

Minimum Isolation

60 dB

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
