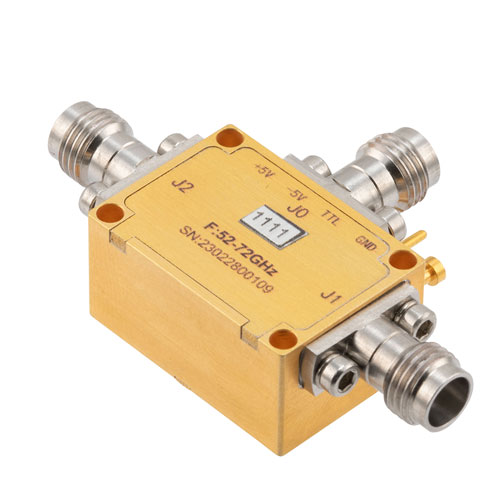

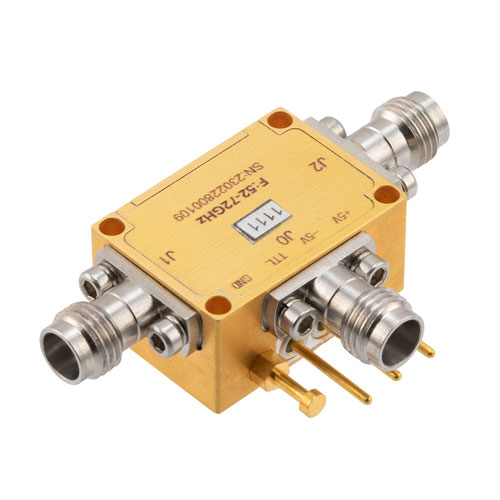

Reflective SPDT Wideband PIN Diode Switch Operating from 52 GHz to 72 GHz Up to 20 dBm, 100 nsec max and 1.85mm

Reflective SPDT Wideband PIN Diode Switch Operating from 52 GHz to 72 GHz Up to 20 dBm, 100 nsec max and 1.85mm

PIN diode RF switch part number FMSW1111 from Fairview Microwave is one of a huge selection of coaxial switch products supplied for radio, antenna and other types of RF components for typical use, pro...

PIN diode RF switch part number FMSW1111 from Fairview Microwave is one of a huge selection of coaxial switch products supplied for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically ready for quick shipment. This PIN diode switch is designed in a SPDT configuration and has an impedance of 50 Ohm. Our PIN diode RF switch is manufactured as a reflective type with field replaceable 1.85mm connectors. Our coaxial reflective PIN diode switch is rated for a frequency range from 52 GHz to 72 GHz and a maximum RF input power of 20 Watts. This field replaceable 1.85mm radio frequency PIN diode switch has a female gender configuration and is designed to withstand a series of environmental test conditions including altitude, vibration, shock and humidity. This PIN diode switch from Fairview Microwave has an aluminum housing with gold plating. Our dBm RF PIN diode switch operates within a temperature range of -40 to 85 deg C. PIN diode RF switch FMSW1111 from Fairview Microwave is rated for an insertion loss maximum of 6 dB. This SPDT PIN diode switch has a 3:1 maximum VSWR (voltage standing wave ratio). This radio frequency PIN diode switch is ideal for test & measurement, 5G communication, military electronic systems, wireless infrastructure, fiber optics and research & development applications. Additional specs for this SPDT PIN diode switch can be found on its PDF specification datasheet and CAD drawings above. The reflective SPDT PIN diode switch is one of the thousands of RF products available from Fairview Microwave’s in-stock inventory. Urgency is in our DNA so make your online purchase right now to take advantage of our same day shipment for local, domestic and international orders. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF PIN diode switch for your requirement.

Expand

SKU FMSW1111 FMSW1111 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

Field Replaceable 1.85mm

Connector Gender

Female

Switch Design

Reflective

Minimum Frequency

52 GHz

Maximum Frequency

72 GHz

Impedance

50 Ohm

Maximum Input Power

20 Watts

Maximum Input VSWR

3:1

Maximum Insertion Loss

6 dB

Minimum Isolation

30 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

1.85mm-spdt-pin-diode-switch-reflective-60-ghz-15-dbm-fmsw1112 Fairview Microwave FMSW1112

1 available

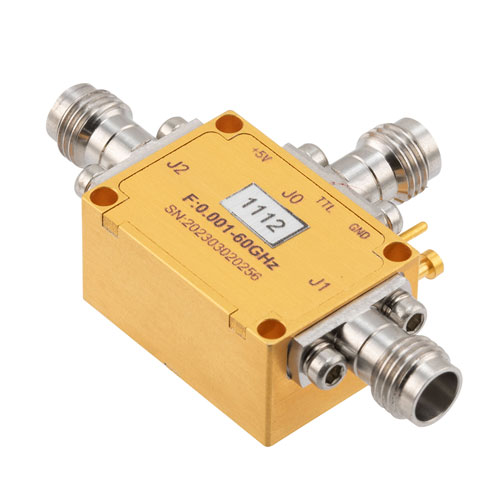

Reflective SPDT Ultra-Wideband PIN Diode Switch Operating 1 MHz to 60 GHz, Up to 15 dBm, 400 nsec and 1.85mm

Compare

SKU FMSW1112

Starting price $16,800.00

Estimated shipment Today

1.85mm-spdt-pin-diode-switch-reflective-75-ghz-15-dbm-fmsw1110 Fairview Microwave FMSW1110

1 available

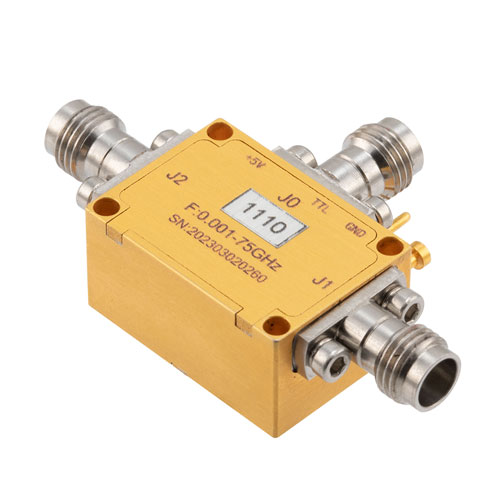

Reflective SPDT Ultra-Wideband PIN Diode Switch Operating from 1 MHz to 75 GHz Up to 15 dBm, 400 nsec and 1.85mm

Compare

SKU FMSW1110

Starting price $19,800.00

Estimated shipment Today

2.4mm-spdt-pin-diode-switch-absorptive-50-ghz-23-dbm-fmsw1113 Fairview Microwave FMSW1113

2 available

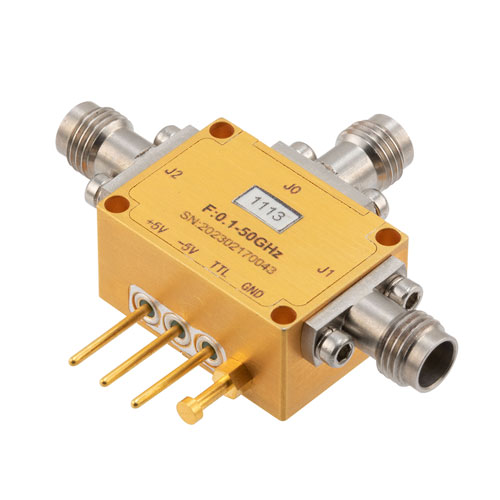

Absorptive SPDT Ultra-Wideband SPDT PIN Diode Switch Operating 100 MHz to 50 GHz, Up to 23 dBm, 50 nsec and 2.4mm

Compare

SKU FMSW1113

Starting price $7,620.00

Estimated shipment Today

sma-sp4t-pin-diode-switch-reflective-26-ghz-23-dbm-fmsw1119 Fairview Microwave FMSW1119

1 available

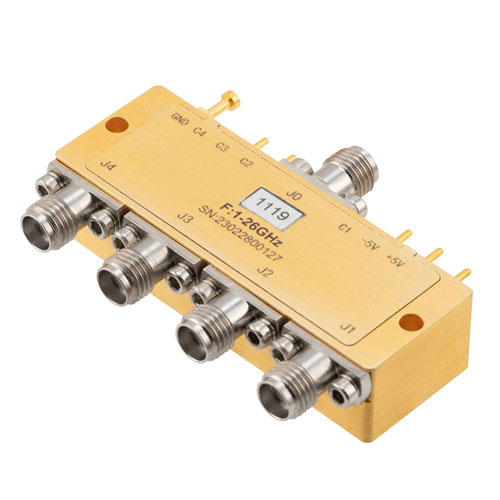

Reflective SP4T Broadband PIN Diode Switch Operating from 1 GHz to 26 GHz, Up to 23 dBm, 100 nsec max and SMA
