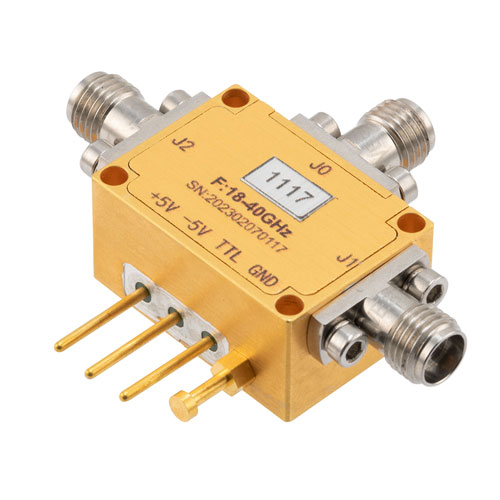

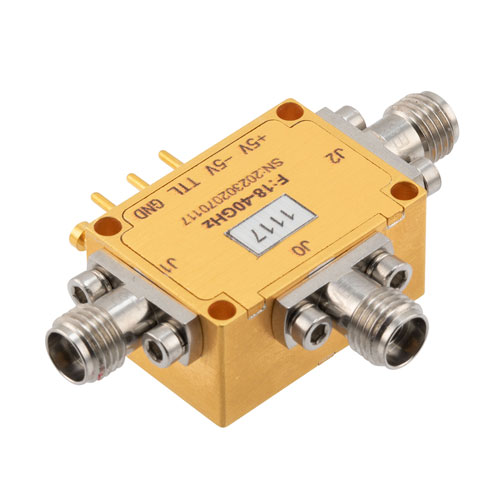

Absorptive SPDT Broadband PIN Diode Switch Operating 18 GHz to 40 GHz, Up to 23 dBm, 50 nsec max and 2.92mm

Absorptive SPDT Broadband PIN Diode Switch Operating 18 GHz to 40 GHz, Up to 23 dBm, 50 nsec max and 2.92mm

PIN diode RF switch part number FMSW1117 from Fairview Microwave is one of a huge selection of coaxial switch products supplied for radio, antenna and other types of RF components for typical use, pro...

PIN diode RF switch part number FMSW1117 from Fairview Microwave is one of a huge selection of coaxial switch products supplied for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically ready for quick shipment. This PIN diode switch is designed in a SPDT configuration and has an impedance of 50 Ohm. Our PIN diode RF switch is manufactured as a absorptive type with field replaceable 2.92mm connectors. Our coaxial absorptive PIN diode switch is rated for a frequency range from 18 GHz to 40 GHz and a maximum RF input power of 23 Watts. This field replaceable 2.92mm radio frequency PIN diode switch has a female gender configuration and is designed to withstand a series of environmental test conditions including altitude, vibration, shock and humidity. This PIN diode switch from Fairview Microwave has an aluminum housing with gold plating. Our 23 dBm RF PIN diode switch operates within a temperature range of -40 to 85 deg C. PIN diode RF switch FMSW1117 from Fairview Microwave is rated for an insertion loss maximum of 4.5 dB. This SPDT PIN diode switch has a 3:1 maximum VSWR (voltage standing wave ratio). This 23 dBm radio frequency PIN diode switch is ideal for test & measurement, 5G communication, military electronic systems, wireless infrastructure, fiber optics and research & development applications. Additional specs for this SPDT PIN diode switch can be found on its PDF specification datasheet and CAD drawings above. The absorptive SPDT PIN diode switch is one of the thousands of RF products available from Fairview Microwave’s in-stock inventory. Urgency is in our DNA so make your online purchase right now to take advantage of our same day shipment for local, domestic and international orders. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF PIN diode switch for your requirement.

Expand

SKU FMSW1117 FMSW1117 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

Field Replaceable 2.92mm

Connector Gender

Female

Switch Design

Absorptive

Minimum Frequency

18 GHz

Maximum Frequency

40 GHz

Impedance

50 Ohm

Maximum Input Power

23 Watts

Maximum Input VSWR

3:1

Maximum Insertion Loss

4.5 dB

Minimum Isolation

45 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
