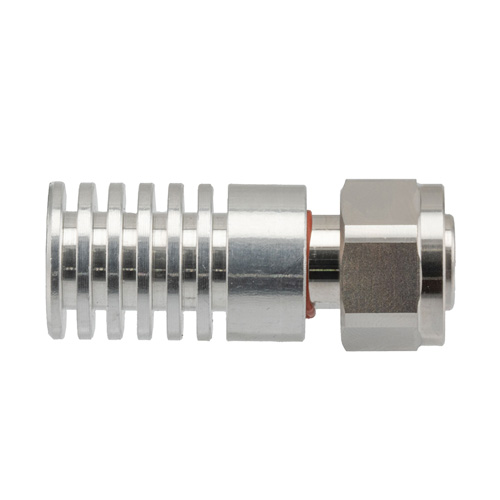

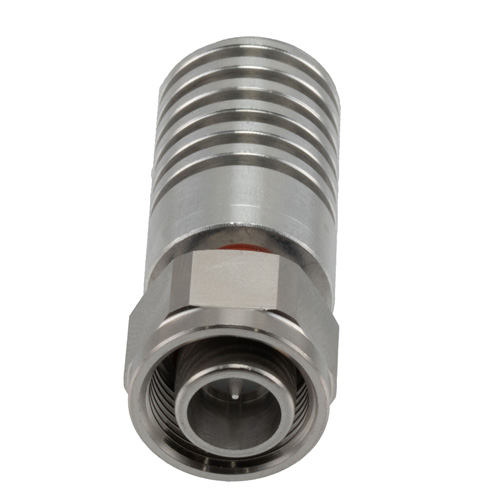

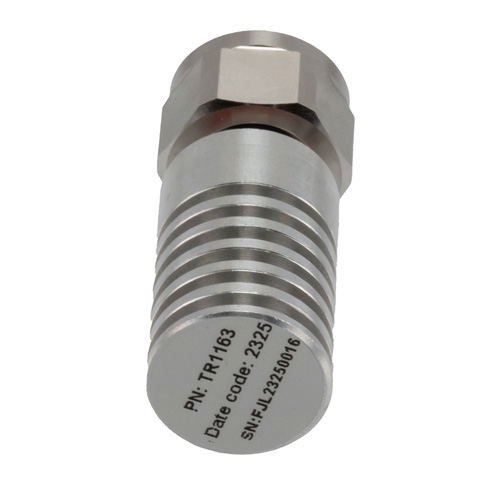

2.2-5 Male (Plug) Termination (Load) 10 Watts DC to 6 GHz, Brass Body, 1.25:1 VSWR

2.2-5 Male (Plug) Termination (Load) 10 Watts DC to 6 GHz, Brass Body, 1.25:1 VSWR

Fairview Microwave’s FMTR1163 RF load termination (also known as a dummy load) is just part of a wide selection of coaxial terminator products offered for radio, antenna and other types of RF componen...

Fairview Microwave’s FMTR1163 RF load termination (also known as a dummy load) is just part of a wide selection of coaxial terminator products offered for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement and defense/military, etc., that are specifically prepared for quick shipment. Our coaxial radio frequency terminator is manufactured in a RF load design with 2.2-5 male connector. This connectorized RF terminator is commonly used to terminate devices such as couplers, hybrids, circulators and combiners.2.2-5 male RF load terminator from Fairview Microwave is available with a 50 Ohm impedance and is rated for a maximum frequency of 6 GHz. Dummy load/RF termination part number FMTR1163 has a maximum input power (CW) of 10 Watts and a maximum VSWR of 1.25:1. Additional dimensions and specifications for this RF load terminator are on our downloadable PDF datasheet above.Fairview Microwave’s FMTR1163 has a 2.2-5 connector and a brass housing body. This RF terminator is designed to withstand temperatures between -40 to 75 deg C. The max input power rating (CW) of this RF termination is 10 Watts. This radio frequency terminator operates between frequency ranging from DC to 6 GHz. Our RF terminator has beryllium copper inner conductor material with silver plating. Our terminator is suitable for 5G cellular bands, SatCom, radar systems, test and measurement and commercial and military communication applications.Fairview Microwave is where to buy a 6 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. We also stock a wide selection of other coaxial dummy load termination products that will ship the same day. Our 2.2-5 male RF load termination is in stock and ships the same day from our Allen, TX, United States warehouse.

Expand

SKU FMTR1163 FMTR1163 -0

QTY available 4

Price $109.99

Quantity Price

1-9$109.99

10-24$105.59

25-99$101.19

100-249$96.79

250-499$92.39

500+$92.39Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Termination Type

RF Load

Connector Series

2.2-5

Connector Gender

Male

Minimum Frequency

DC

Maximum Frequency

6 GHz

Impedance

50 Ohm

Maximum VSWR

1.25:1

Maximum Power

10 Watt

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

5-watts-6-ghz-fmtr1162 Fairview Microwave FMTR1162

2 available

2.2-5 Male (Plug) Termination (Load) 5 Watts DC to 6 GHz, Brass Body, 1.25:1 VSWR

Compare

SKU FMTR1162

Starting price $80.99

Estimated shipment Next Business Day

rf-load-5-watts-12.4-ghz-n-male-fmtr1132 Fairview Microwave FMTR1132

6 available

N Male (Plug) Termination (Load) 5 Watts to 12.4 GHz, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMTR1132

Starting price $98.99

Estimated shipment Next Business Day

rf-load-5-watts-12.4-ghz-tnc-male-fmtr1134 Fairview Microwave FMTR1134

4 available

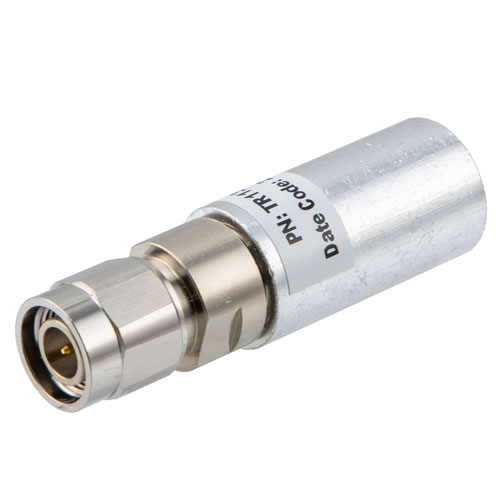

TNC Male (Plug) Termination (Load) 5 Watts to 12.4 GHz, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMTR1134

Starting price $109.99

Estimated shipment Next Business Day

rf-load-5-watts-12.4-ghz-n-female-fmtr1133 Fairview Microwave FMTR1133

1 available

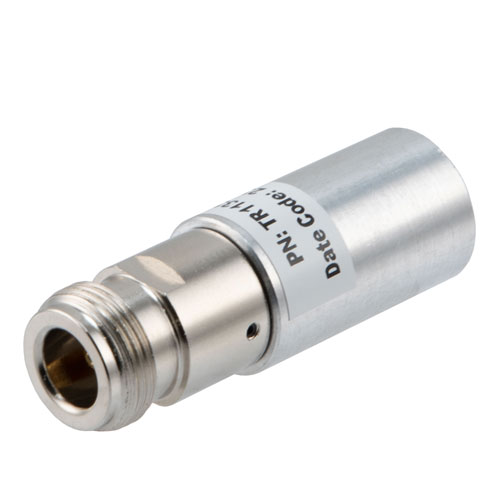

N Female (Jack) Termination (Load) 5 Watts to 12.4 GHz, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMTR1133

Starting price $98.99

Estimated shipment Next Business Day
