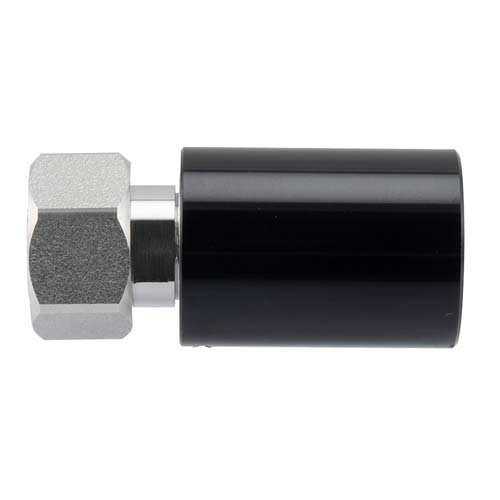

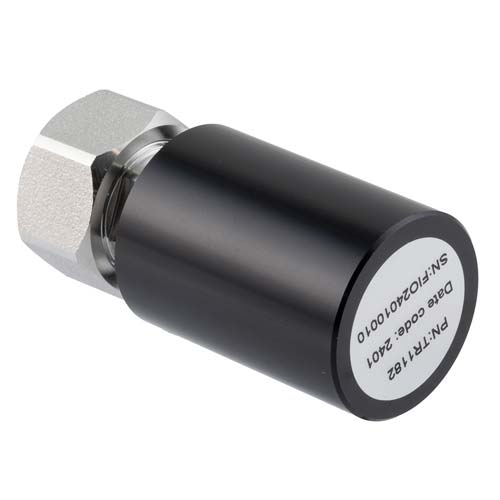

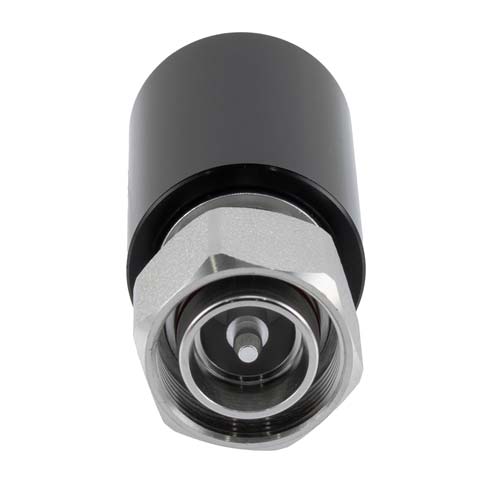

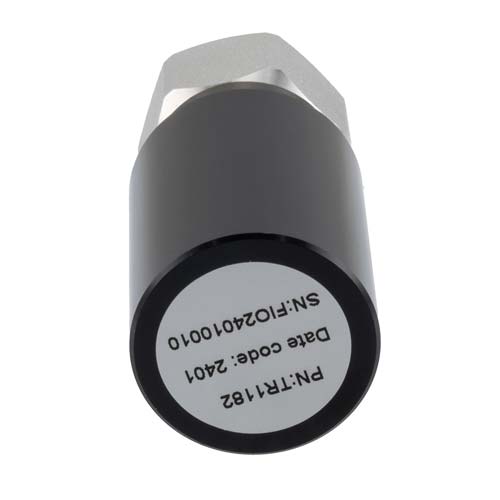

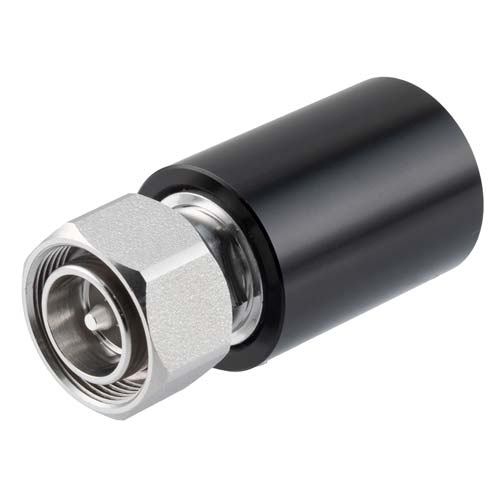

4.3-10 Male (Plug) Termination (Load) 10 Watts, DC to 6 GHz, Black Anodized Aluminum

4.3-10 Male (Plug) Termination (Load) 10 Watts, DC to 6 GHz, Black Anodized Aluminum

Fairview Microwave’s FMTR1182 RF load termination (also known as a dummy load) is just part of a wide selection of coaxial terminator products offered for radio, antenna, and other types of RF compone...

Fairview Microwave’s FMTR1182 RF load termination (also known as a dummy load) is just part of a wide selection of coaxial terminator products offered for radio, antenna, and other types of RF components for typical use, production, laboratory test and measurement, defense/military, etc., that are specifically prepared for quick shipment. Our high-quality connectorized radio frequency termination has a 4.3-10 male connector configuration. This connectorized RF termination is commonly used to terminate devices such as couplers, hybrids, circulators, and combiners. Make your online purchase right now to take advantage of our same-day shipping.4.3-10 male RF load termination from Fairview Microwave is available with a 50 Ohm impedance and is rated for a maximum frequency of 6 GHz. Dummy load/RF termination part number FMTR1182 has a maximum input power (CW) of 10 Watts and a maximum VSWR of 1.35:1. Additional dimensions and specifications for this RF load termination are on our downloadable PDF datasheet above.Fairview Microwave’s FMTR1182 has a 4.3-10 connector and a black anodized aluminum housing body. This RF termination is designed to withstand temperatures between -40 to 75 deg C. This 4.3-10 male load/termination is rated for a maximum frequency of 6 GHz. Our termination is suitable for 5G cellular bands, SATCOM, radar systems, test and measurement, commercial and military communication and DAS systems applications.Fairview Microwave is where to buy a 6 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. We also stock a wide selection of other coaxial dummy load termination products that will ship the same day. Our 4.3-10 male RF load termination is in stock and ships the same day from our United States warehouse.

Expand

SKU FMTR1182 FMTR1182 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Termination Type

RF Load

Connector Series

4.3-10

Connector Gender

Male

Minimum Frequency

DC

Maximum Frequency

6 GHz

Impedance

50 Ohm

Maximum VSWR

1.35:1

Maximum Power

10 Watt

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
