WR-28 Twistable Flexible Waveguide in 36 Inch Using UG-599/U Square Cover Flange With a 26.5 GHz to 40 GHz Frequency Range

Due to this products weight or size, it will be shipped via Freight. Freight

WR-28 Twistable Flexible Waveguide in 36 Inch Using UG-599/U Square Cover Flange With a 26.5 GHz to 40 GHz Frequency Range

Name: WR-28 Twistable Flexible Waveguide in 36 Inch Using UG-599/U Square Cover Flange With a 26.5 GHz to 40 GHz Frequency Range
Brand: Fairview Microwave, Inc.
SKU: SMW28TF005-36
Price: 920.0 USD
Availability: InStock

Fairview Microwave SMW28TF005-36 ships same-day worldwide and is a WR-28 twistable flexible waveguide (also known as waveguide cable). Our constantly in-stock WR-28 twistable brass waveguide cables wi...

Fairview Microwave SMW28TF005-36 ships same-day worldwide and is a WR-28 twistable flexible waveguide (also known as waveguide cable). Our constantly in-stock WR-28 twistable brass waveguide cables with silver plating are 36 inches long. WR-28 flexible 36” waveguide SMW28TF005-36 by Fairview Microwave is manufactured with square cover brass flanges. Each square cover end of this WR-28 waveguide cable has a UG-599/U flange designation. These high-quality 36 inch twistable flexible waveguides function up to a maximum frequency of 40 GHz. Fairview Microwave offers expert tech support help on these 26.5 GHz minimum to 40 GHz maximum silver-plated flexible waveguides with UG-599/U square cover brass flanges.Waveguide components like SMW28TF005-36 WR-28 40 GHz 36 in. cables with high-quality neoprene sleeves, have been provided by Fairview Microwave since 1992 (Sun Moon Electronics originally). Fairview Microwave 26.5 GHz minimum frequency UG-599/U square cover brass flange 36-inch twistable waveguide cables have a one-time maximum offset rotation (or MOR) of 180° degrees/ft and a repeated MOR of 70° degrees/ft. Our 26.5 GHz to 40 GHz frequency range flexible waveguide with 180° degrees/ft MOR displays a 1.8 dB typical insertion loss, viewable here on SMW28TF005-36 PDF datasheet specification download with dimensions and CAD drawing specs on this product page. These 1.8 dB insertion loss twistable silver-plated waveguides with 180° degrees/ft MOR feature advanced neoprene jackets with a maximum operating pressure (or MOP) of 45 psig.Twistable 1.8 dB loss flexible waveguide WR-28 with 36 inches of length UG-599/U square cover brass flanges can be twisted and/or bent to E and H planes without impairing the voltage standing wave ratio (or VSWR) of 1.3:1. The one-time E-plane minimum bend radius (or MBR) for Fairview Microwave’s SMW28TF005-36 180° degrees/ft MOR UG-599/U brass waveguide cable is 1 inches with 2 inches H-plane MBR. Repeated E-plane MBR and H-plane MBR for this 36 inch long twistable 26.5 GHz to 40 GHz flexible waveguide is 4 inches and 8 inches respectively. Fairview Microwave WR-28 square cover flange silver-plated flexible waveguide with 1.8 dB insertion loss and 1.3:1 VSWR provides industry-leading vibration isolation with added protection and support from its highly-advanced neoprene sleeve. This WR-28 twistable flexible brass 36” long waveguide cable 45 psig MOP has a maximum input power of 75 kWatts and maximum peak power of 20 kWatts.In business since 1992, Fairview Microwave supplies these rapid-shipping 36 in. 45 psig MOP 180° degrees/ft twistable waveguide cables that bend easily to fix misalignments. Our knowledgeable sales team aids in procuring SMW28TF005-36 WR-28 twistable silver-plated flexible waveguides using square cover UG-599/U brass flanges with 4 inch E-Plane and 8 inch H-plane repeated MBR online or by phone. Fairview Microwave offers this WR-28 36 in. brass twistable flexible waveguide with square cover UG-599/U flanges covering 26.5 GHz to 40 GHz with SMW28TF005-36 PDF datasheet specifications with CAD drawing dimension specs download. These 1.8 dB insertion loss 40 GHz max frequency waveguide cables with 1.3:1 VSWR are great for one-stop shopping. With same business day shipping worldwide from our ISO-registered facility, you should name Fairview Microwave as your primary source for flexible waveguides.

Expand

SKU SMW28TF005-36 SMW28TF005-36 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size 1

WR-28

Flange Type 1

UG-599/U

Waveguide Size 2

WR-28

Flange Type 2

UG-599/U

Length

36

Frequency, Min

26.5 GHz

Frequency, Max

40 GHz

Max Power (CW)

75

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

wr-28-twistable-flexible-waveguide-ug599-square-26.5-40-ghz-smw28tf005-12 Fairview Microwave SMW28TF005-12

7 available

WR-28 Twistable Flexible Waveguide in 12 Inch Using UG-599/U Square Cover Flange With a 26.5 GHz to 40 GHz Frequency Range

Compare

SKU SMW28TF005-12

Starting price $885.00

Estimated shipment Today

wr-28-twistable-flexible-waveguide-ug599-square-26.5-40-ghz-smw28tf005-24 Fairview Microwave SMW28TF005-24

1 available

WR-28 Twistable Flexible Waveguide in 24 Inch Using UG-599/U Square Cover Flange With a 26.5 GHz to 40 GHz Frequency Range

Compare

SKU SMW28TF005-24

Starting price $840.00

Estimated shipment Today

wr-90-twistable-flexible-waveguide-ug39-square-8.2-12.4-ghz-smw90tf005-36 Fairview Microwave SMW90TF005-36

1 available

WR-90 Twistable Flexible Waveguide in 36 Inch Using UG-39/U Square Cover Flange With a 8.2 GHz to 12.4 GHz Frequency Range

Compare

SKU SMW90TF005-36

Starting price $274.29

Estimated shipment Today

wr-42-twistable-flexible-waveguide-ug595-square-18-26.5-ghz-smw42tf005-36 Fairview Microwave SMW42TF005-36

3 available

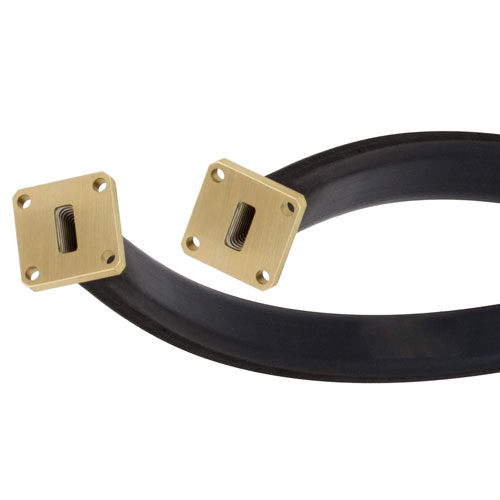

WR-42 Twistable Flexible Waveguide in 36 Inch Using UG-595/U Square Cover Flange With a 18 GHz to 26.5 GHz Frequency Range
