WR-28 Standard Gain Horn with 20 dBi gain, 2.92mm Female connector, Integrated Cage-Style Mount

WR-28 Standard Gain Horn with 20 dBi gain, 2.92mm Female connector, Integrated Cage-Style Mount

Name: WR-28 Standard Gain Horn with 20 dBi gain, 2.92mm Female connector, Integrated Cage-Style Mount
Brand: Fairview Microwave, Inc.
SKU: FM1WAN028-20KF
Price: 2140.0 USD
Availability: InStock

The FM1WAN028-20KF standard gain horn antenna with integrated cage-style mount (also known as waveguide horn) from Fairview Microwave is part of our comprehensive selection of waveguide antennas. The ...

The FM1WAN028-20KF standard gain horn antenna with integrated cage-style mount (also known as waveguide horn) from Fairview Microwave is part of our comprehensive selection of waveguide antennas. The cage-style mount is a ruggedized aluminum mounting solution that integrates with test and measurement positioning systems, ensuring precise alignment and protection of the antenna. This standard gain horn is mated with a WR-28 to 2.92mm Female waveguide to coaxial adapter and operates from 26.5 GHz to 40 GHz. Our FM1WAN028-20KF standard gain horn antenna with integrated cage-style mount has a nominal gain of 20 dBi with a Horizontal and Vertical HPBW (Half Power Beam Width) of 17.5 dB and 17.3 dB respectively. Fairview Microwave's 2.92mm Female to WR-28 standard gain horns are available in 10, 15 and 20 dBi models with pyramidal shape and connectorized input.Waveguide antennas, such as the FM1WAN028-20KF are used in a wide variety of applications due to the high-power handling capability, low loss, high directivity, and near constant electrical performance. Our WR-28 waveguide antennas with 2.92mm Female interface is part of over 40,000 RF, microwave and millimeter wave components from Fairview Microwave available worldwide and ship same day.

Expand

SKU FM1WAN028-20KF FM1WAN028-20KF -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-28

Gain Min

20

Beam Width, 3dB V

17.5

Beam Width, 3dB H

17.3

Frequency, Min

26.5 GHz

Frequency, Max

40 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

Call us

WR-28 Standard Gain Horn with 20 dBi gain, 2.92mm Male connector, Integrated Cage-Style Mount

Compare

SKU FM1WAN028-20KM

Starting price $2,140.00

Estimated shipment Call Us

2 available

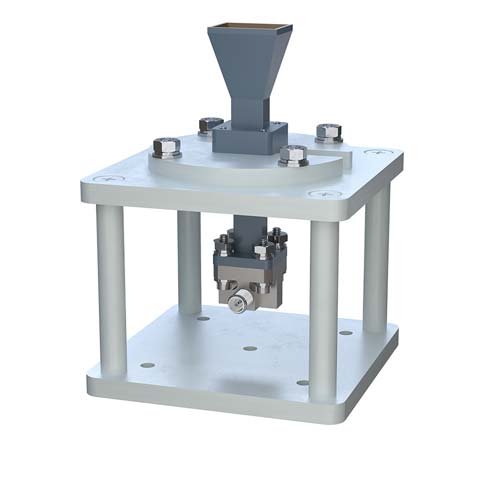

WR-28 Standard Gain Horn with 15 dBi gain, 2.92mm Female connector, Integrated Cage-Style Mount

Compare

SKU FM1WAN028-15KF

Starting price $2,070.00

Estimated shipment Today

2 available

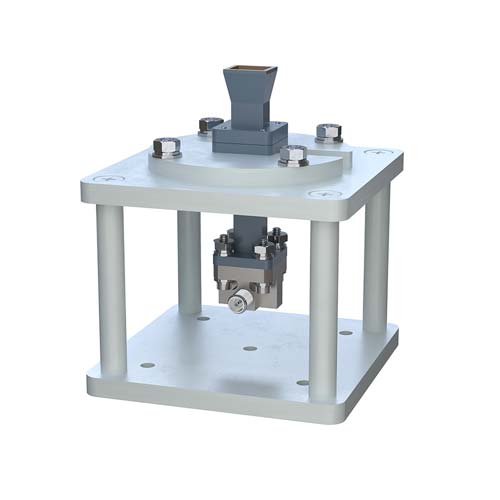

WR-28 Standard Gain Horn with 10 dBi gain, 2.92mm Female connector, Integrated Cage-Style Mount
