WR-90 Waveguide Antenna With UG-135/U Flange, 10 dBi Gain and 8.2 GHz to 12.4 GHz

WR-90 Waveguide Antenna With UG-135/U Flange, 10 dBi Gain and 8.2 GHz to 12.4 GHz

The FMWAN090-10 standard gain horn antenna (also known as waveguide horn) from Fairview Microwave has a nominal gain of 10 dBi. The Fairview Microwave 10 dBi WR-90 horn antenna operates from 8.2 GHz t...

The FMWAN090-10 standard gain horn antenna (also known as waveguide horn) from Fairview Microwave has a nominal gain of 10 dBi. The Fairview Microwave 10 dBi WR-90 horn antenna operates from 8.2 GHz to 12.4 GHz (X Band). This WR-90 standard gain horn has a UG-135/U type flange. Waveguide standard gain horn antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near constant electrical performance. These units are Aluminum and Powder coated for increased resistance to weather and corrosion with a Horizontal and Vertical Beam Width of 52.1 and 51.6 degrees respectively.Fairview Microwave's WR-90 standard gain horns are available in 10, 15 and 20 dBi models with pyramidal shape and rectangular input. X Band standard gain horn antenna can ship the same day to anywhere in the world. The WR-90 FMWAN090-10 waveguide horn is part of over 40,000 RF, microwave and millimeter wave components available from Fairview Microwave.

Expand

SKU FMWAN090-10 FMWAN090-10 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-90

Gain Nominal

10

Flange Type

Square Cover

Frequency, Min

8.2 GHz

Frequency, Max

12.4 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

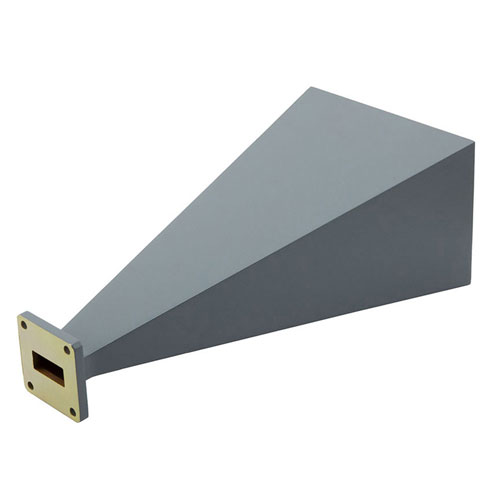

wr-90-waveguide-standard-gain-horn-20-db-ug-135-fmwan090-20 Fairview Microwave FMWAN090-20

5 available

WR-90 Waveguide Antenna With UG-135/U Flange, 20 dBi Gain and 8.2 GHz to 12.4 GHz

Compare

SKU FMWAN090-20

Starting price $1,280.00

Estimated shipment Today

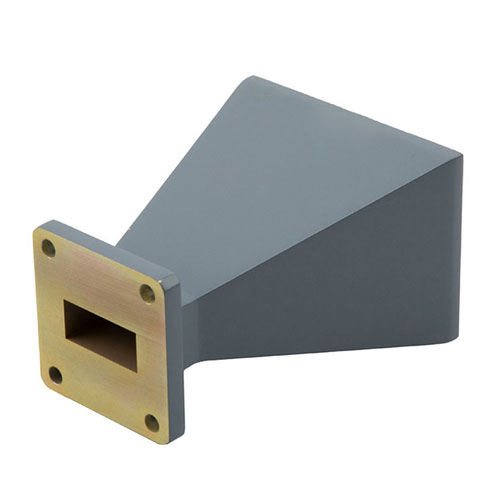

wr-90-waveguide-standard-gain-horn-15-db-ug-135-fmwan090-15 Fairview Microwave FMWAN090-15

8 available

WR-90 Waveguide Antenna With UG-135/U Flange, 15 dBi Gain and 8.2 GHz to 12.4 GHz

Compare

SKU FMWAN090-15

Starting price $1,200.00

Estimated shipment Today

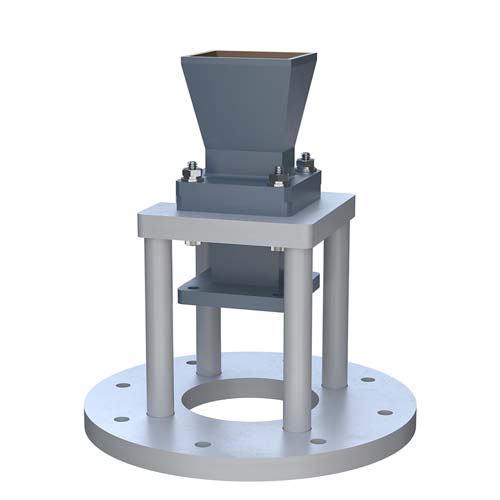

wr-90-waveguide-antenna-8.2-ghz-to-12.4-ghz-frequency-range-10-dbi-gain-ug-135-u-flange-integrated-cage-style-mount-fm1wan090-10 Fairview Microwave FM1WAN090-10
