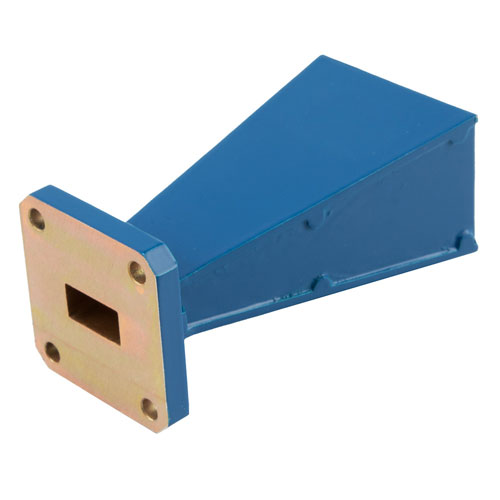

WR-51 Waveguide Standard Gain Horn Antenna With Flange, 15 dBi Gain and 15 GHz to 22 GHz

WR-51 Waveguide Standard Gain Horn Antenna With Flange, 15 dBi Gain and 15 GHz to 22 GHz

Name: WR-51 Waveguide Standard Gain Horn Antenna With Flange, 15 dBi Gain and 15 GHz to 22 GHz
Brand: Fairview Microwave, Inc.
SKU: FM9853B-15
Price: 570.0 USD
Availability: InStock

The Pro-series WR-51 FM9853B-15 standard gain horn antenna (also known as waveguide horn) from Fairview Microwave has a nominal gain of 15 dBi. The Fairview Microwave 15 dBi WR-51 horn antenna operate...

The Pro-series WR-51 FM9853B-15 standard gain horn antenna (also known as waveguide horn) from Fairview Microwave has a nominal gain of 15 dBi. The Fairview Microwave 15 dBi WR-51 horn antenna operates from 15 GHz to 22 GHz. This WR-51 standard gain horn has a square type flange. The WR-51 FM9853B-15 waveguide horn is part of over 40,000 RF, microwave and millimeter wave components available from Fairview Microwave.Waveguide standard gain horn antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near constant electrical performance. The Pro-series gain horns are US made and TAA compliant. Fairview Microwave's WR-51 standard gain horns are available in 10, 15 and 20 dBi models with pyramidal shape and rectangular input. Pro-series WR-51 standard gain horn antenna can ship the same day to anywhere in the world.

Expand

SKU FM9853B-15 FM9853B-15 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-51

Gain Nominal

15

Flange Type

Square Cover

Frequency, Min

15 GHz

Frequency, Max

22 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
