WR-90 Standard Gain Horn with 10 dBi gain, End Launch N Female connector

WR-90 Standard Gain Horn with 10 dBi gain, End Launch N Female connector

Name: WR-90 Standard Gain Horn with 10 dBi gain, End Launch N Female connector
Brand: Fairview Microwave, Inc.
SKU: FMWAN090-10ELNF
Price: 1600.0 USD
Availability: InStock

Waveguide horn with coaxial adapter transition (can also be called a waveguide horn antenna) FMWAN090-10ELNF from Fairview Microwave is just one part of a large selection of our waveguide components. ...

Waveguide horn with coaxial adapter transition (can also be called a waveguide horn antenna) FMWAN090-10ELNF from Fairview Microwave is just one part of a large selection of our waveguide components. Our waveguide horn antenna with coax adapter transition is manufactured with a WR-90 waveguide size.Waveguide antenna FMWAN090-10ELNF that operates from 8.2 GHz – 12.4 GHz it is able to achieve an impressive gain of 10 dBi, is equipped with a WR-90 designation.This waveguide horn antenna is part of over one million RF, microwave and millimeter wave components in-stock. Fairview also stocks a wide array of other waveguide antenna products that ship same-day from our warehouse for all your RF/microwave and millimeter component needs.

Expand

SKU FMWAN090-10ELNF FMWAN090-10ELNF -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-90

Gain Min

10

Beam Width, 3dB V

52.1

Beam Width, 3dB H

51.6

Frequency, Min

8.2 GHz

Frequency, Max

12.4 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

wr-90-standard-gain-horn-10-dbi-n-fmwan090-10nf Fairview Microwave FMWAN090-10NF

8 available

WR-90 Standard Gain Horn with 10 dBi gain, Type N Female connector

Compare

SKU FMWAN090-10NF

Starting price $1,640.00

Estimated shipment Today

wr-90-standard-gain-horn-10-dbi-sma-fmwan090-10sf Fairview Microwave FMWAN090-10SF

10 available

WR-90 Standard Gain Horn with 10 dBi gain, SMA Female connector

Compare

SKU FMWAN090-10SF

Starting price $1,640.00

Estimated shipment Today

wr-90-standard-gain-horn-10-dbi-sma-fmwan090-10elsf Fairview Microwave FMWAN090-10ELSF

7 available

WR-90 Standard Gain Horn with 10 dBi gain, End Launch SMA Female connector

Compare

SKU FMWAN090-10ELSF

Starting price $1,860.00

Estimated shipment Today

wr-90-standard-gain-horn-15-dbi-n-fmwan090-15nf Fairview Microwave FMWAN090-15NF

6 available

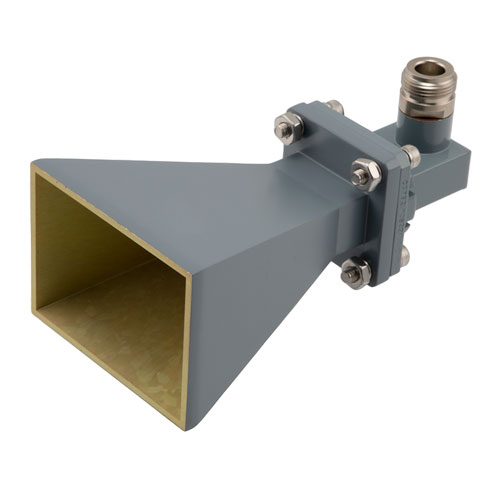

WR-90 Standard Gain Horn with 15 dBi gain, Type N Female connector
