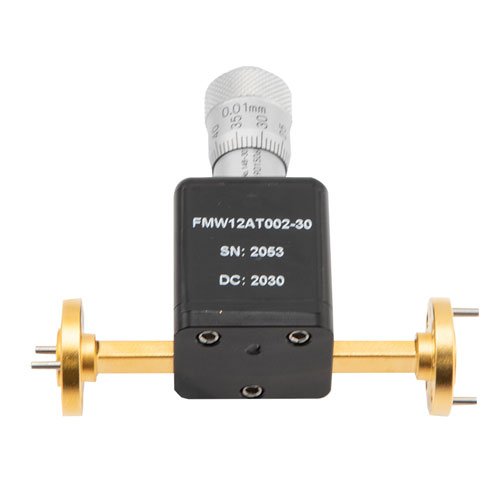

WR-12 Waveguide Continuously Variable Attenuator with Dial 0 to 30 dB Operating from 60 GHz to 90 GHz, UG-387/U Round Cover Flange

WR-12 Waveguide Continuously Variable Attenuator with Dial 0 to 30 dB Operating from 60 GHz to 90 GHz, UG-387/U Round Cover Flange

Fairview Microwave’s is designed to operate in full WR-12 band. Our continuously variable waveguide attenuator features 30 dB of maximum attenuation. This 30 dB waveguide attenuator is designed to ope...

Fairview Microwave’s is designed to operate in full WR-12 band. Our continuously variable waveguide attenuator features 30 dB of maximum attenuation. This 30 dB waveguide attenuator is designed to operate in a frequency ranging from 60 GHz to 90 GHz. Make your online purchase right now to take advantage of our same-day shipping.Our continuously variable waveguide attenuator with dial has power rating of 0.1 Watts and 0.4 dB of insertion loss. This 30 dB waveguide attenuator is equipped with a micrometer, which allows rapid re-setting. The continuously variable waveguide attenuator is built with aluminum body with black anodized plating. This continuously variable waveguide attenuator with dial has a maximum input VSWR of 1.15:1. Our 30 dB waveguide attenuator is constructed with a UG-387/U round cover flange. The continuously variable waveguide attenuator has an overall length of 2.5 inches, a width of 0.75 inches and weighs 0.25 lbs. Additional dimensions and specifications for this continuously variable waveguide attenuator are in our downloadable PDF datasheet.Fairview Microwave UG-387/U continuously variable waveguide attenuator part number is in-stock at our United States facility. Our waveguide attenuator is part of over one million components for RF, microwave and millimeter wave applications that are ready for same day shipment worldwide. For further information on similar products, our expert technical support and trained sales team can get you the ideal continuously variable waveguide attenuator as per your requirements.

Expand

SKU FMW12AT002-30 FMW12AT002-30 -0

QTY available Call us

Price $1,216.08

Quantity Price

1-4$1,216.08

5-9$1,167.44

10-24$1,118.79

25-99$1,070.15

100-249$1,021.51

250+$1,021.51Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Key specifications

Datasheet

View All

Minimum Frequency

60 GHz

Maximum Frequency

90 GHz

Typical Attenuation, Min

0 dB

Typical Attenuation, Max

30 dB

Maximum Input Power

0.1 Watt

VSWR

1.15:1

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
