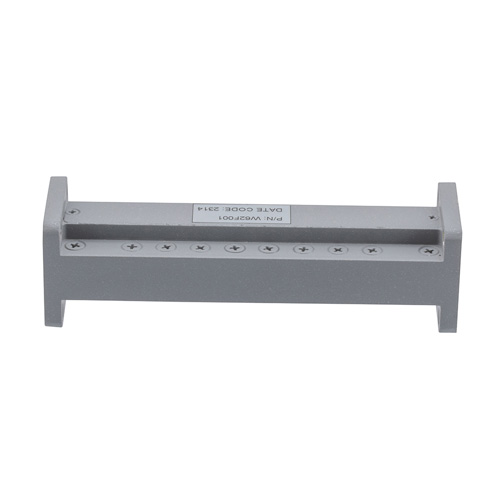

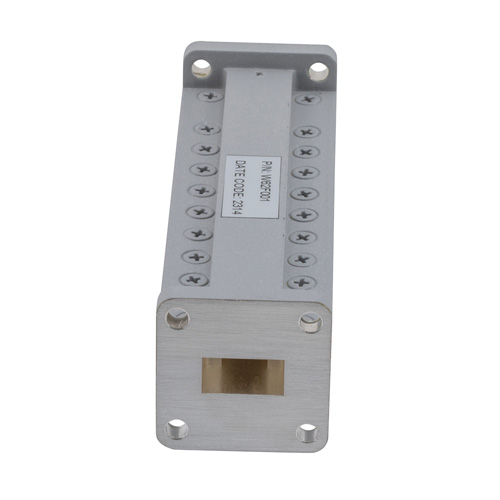

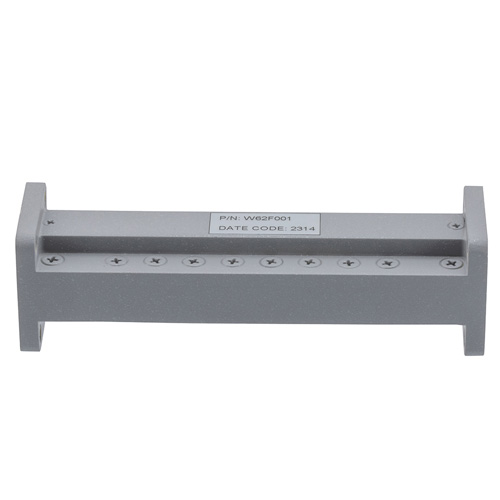

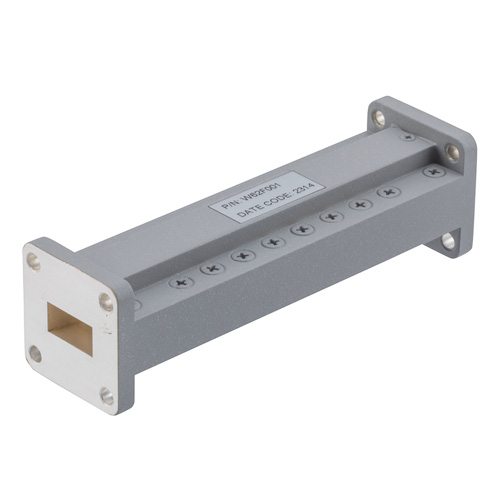

WR-62 Bandpass Waveguide Filter With a 13.75 GHz to 14.5 GHz Pass Band

WR-62 Bandpass Waveguide Filter With a 13.75 GHz to 14.5 GHz Pass Band

Name: WR-62 Bandpass Waveguide Filter With a 13.75 GHz to 14.5 GHz Pass Band
Brand: Fairview Microwave, Inc.
SKU: FMW62F001
Price: 1090.0 USD
Availability: OutOfStock

The FMW62F001 Waveguide band pass filter from Fairview Microwave (also known as a waveguide filter) is just one RF part in a large selection of our RF /microwave / millimeter waveguide components. Thi...

The FMW62F001 Waveguide band pass filter from Fairview Microwave (also known as a waveguide filter) is just one RF part in a large selection of our RF /microwave / millimeter waveguide components. This band pass filter for waveguides is manufactured with a WR-62 input and is in-stock now and available for same business day shipping. The WR-62 waveguide band pass filter is rated for a radio frequency minimum of 13.75 GHz and a frequency maximum of 14.5 GHz as the pass band range.The FMW62F001 waveguide band pass filter has WR-62 UG cover flanges along with a 1.2:1 maximum input VSWR. This waveguide band pass filter from Fairview Microwave is rated for a maximum power (CW) of 200 Watts . The waveguide band pass filter has 0.3 dB of maximum insertion loss and a peak power of 10,000 KW. This waveguide band pass filter has low band minimum rejection of 50 dB at 12,750 GHz and high band maximum rejection of 45 dB at 16,000 GHz. The WR-62 waveguide band pass filter from Fairview Microwave is ideal for radar systems, test and measurement, satellite communications, instrumentation and automotive radar systems applications. Additional dimensions and specifications for this WR-62 waveguide band pass filter are on our downloadable PDF datasheet above.The Fairview Microwave can ship the WR-62 waveguide bandpass filter from stock the same business day as you order it. Fairview Microwave offers the broadest and deepest inventory of RF and microwave components available. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality band pass waveguide filter that meets your requirements.

Expand

SKU FMW62F001 FMW62F001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size 1

WR-62

Waveguide Size 2

WR-62

Frequency, Min

13.75 GHz

Frequency, Max

14.5 GHz

Lowband Min Rejection

50 (dB)

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

wr-75-waveguide-bandpass-filter-ug-pass-band-fmw75f001 Fairview Microwave FMW75F001

1 available

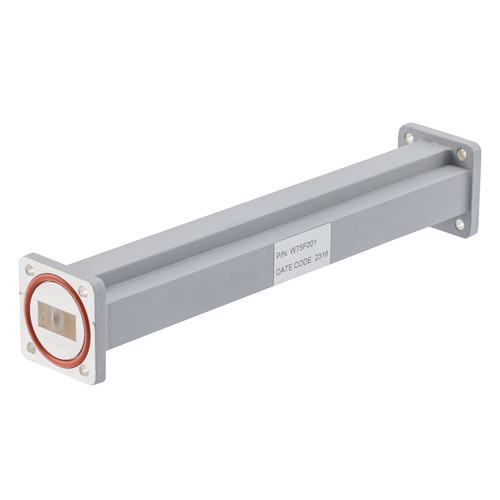

WR-75 Bandpass Waveguide Filter With a 13.75 GHz to 14.5 GHz Pass Band

Compare

SKU FMW75F001

Starting price $1,090.00

Estimated shipment Tomorrow

wr-62-highpass-waveguide-filter-ug-pass-band-fmw62f002 Fairview Microwave FMW62F002

1 available

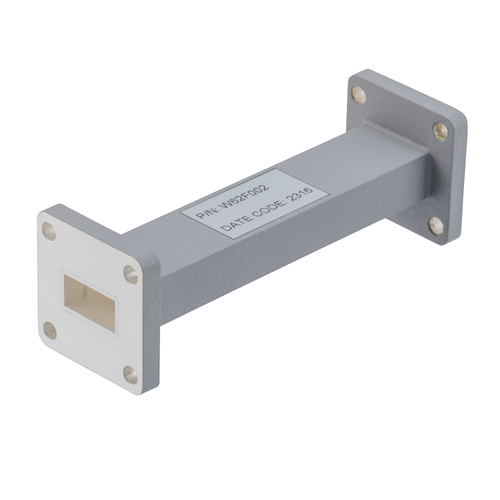

WR-62 Highpass Waveguide Filter With a 13 GHz to 18 GHz Pass Band

Compare

SKU FMW62F002

Starting price $1,090.00

Estimated shipment Tomorrow

wr-28-waveguide-bandpass-filter-ug-pass-band-fmw28f011 Fairview Microwave FMW28F011

1 available

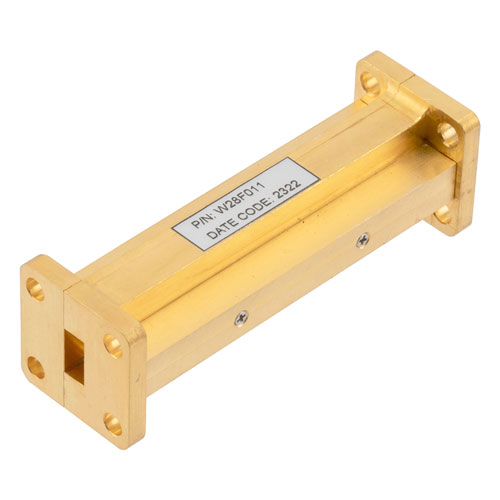

WR-28 Bandpass Waveguide Filter With a 35 GHz to 37 GHz Pass Band

Compare

SKU FMW28F011

Starting price $1,320.00

Estimated shipment Tomorrow

wr-90-waveguide-bandpass-filter-ug-pass-band-fmw90f001 Fairview Microwave FMW90F001

1 available

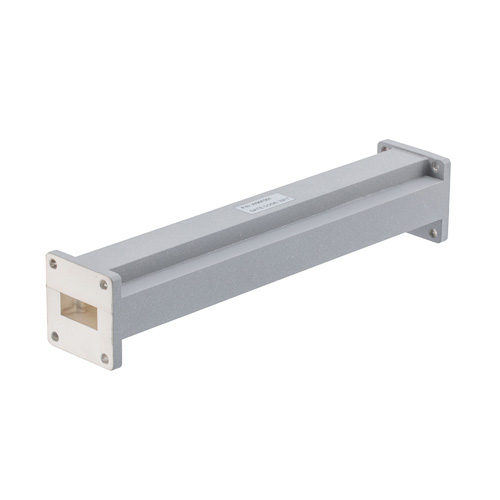

WR-90 Bandpass Waveguide Filter With a 8.9 GHz to 9.9 GHz Pass Band

Compare

SKU FMW90F001

Starting price $1,090.00

Estimated shipment Tomorrow
