WR-159 Waveguide E-Bend using UG Cover and Grooved Flanges with a 4.64 GHz to 7.05 GHz Frequency Range

WR-159 Waveguide E-Bend using UG Cover and Grooved Flanges with a 4.64 GHz to 7.05 GHz Frequency Range

Key Specifications.Type of BendE-BendWaveguide Size 1WR-159Flange Size 1UGWaveguide Size 2WR-159Flange Size 2UGFrequency, Min4.64 GHzFrequency, Max7.05 GHzWR-159 Waveguide E-Bend using UG Cover and Gr...

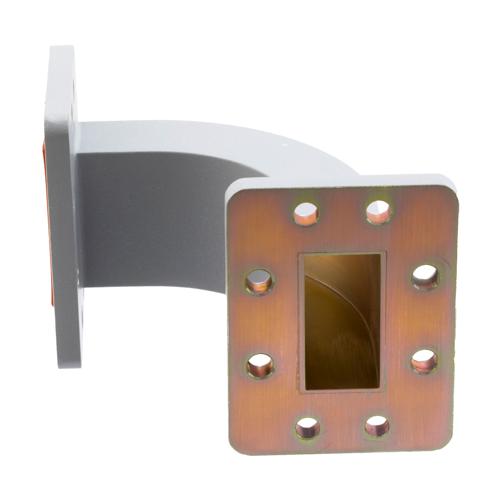

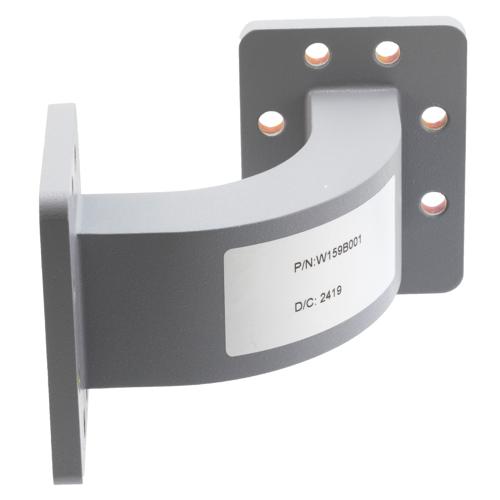

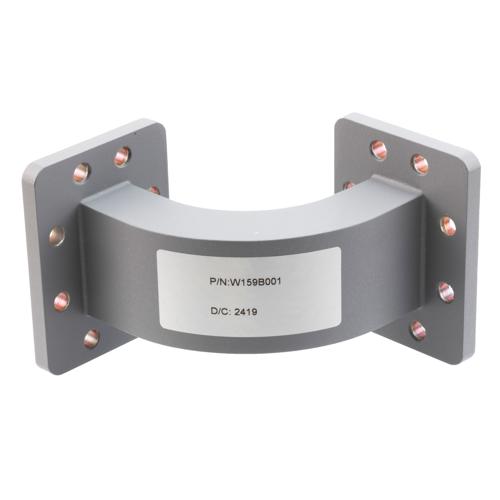

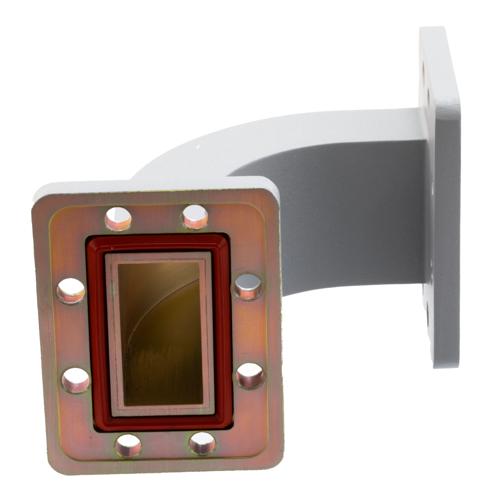

Key Specifications.Type of BendE-BendWaveguide Size 1WR-159Flange Size 1UGWaveguide Size 2WR-159Flange Size 2UGFrequency, Min4.64 GHzFrequency, Max7.05 GHzWR-159 Waveguide E-Bend using UG Cover and Grooved Flanges with a 4.64 GHz to 7.05 GHz Frequency RangeWaveguide bend FMW159B001 from Fairview Microwave is just one part of a large selection of our waveguide components. Our waveguide bend is manufactured in E-Bend type with WR-159 waveguide size. Our WR-159 E-Bend waveguide is constructed with a UG Cover flange on side 1 and a UG Grooved flange on side 2. Make your online purchase right now to take advantage of our same-day shipping.This WR-159 E-Bend waveguide with UG Cover flange is in stock now. Our WR-159 waveguide bend has a minimum frequency of 4.64 GHz and a maximum frequency of 7.05 GHz. The FMW159B001 waveguide bends from Fairview Microwave has aluminum material with chromate conversion plating. Our WR-159 E-Bend waveguide has a gray-colored flange.The FMW159B001 WR-159 waveguide has a maximum VSWR of 1.1:1 along with a 0.2 dB typical insertion loss. Our waveguide bend is built to operate within the temperature range of -40 to 70 deg C and weighs 0.55 lbs. The FMW159B001 straight waveguide bends are appropriate for transmission systems and test and laboratory setups applications. Additional dimensions and specifications for this waveguide bend are in our downloadable PDF datasheet.The E-Bend waveguide with WR-159 from Fairview Microwave is part of over one million RF, microwave, and millimeter waveguide components in stock. Our FMW159B001 waveguide bend is ready for same business day purchase and shipping worldwide. Fairview Microwave also stocks a wide selection of other waveguide products that ship same business day from our United States facility for all your RF/microwave waveguide component needs. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect WR-159 waveguide bend for your requirements.

Expand

SKU FMW159B001 FMW159B001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Type of Bend

E-Bend

Waveguide Size 1

WR-159

Flange Size 1

UG

Waveguide Size 2

WR-159

Flange Size 2

UG

Frequency, Min

4.64 GHz

Frequency, Max

7.05 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
