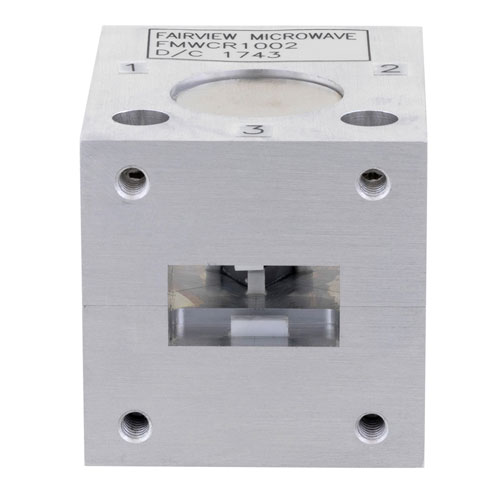

WR-75 Waveguide Circulator with 18 dB Min. Isolation from 10 GHz to 15 GHz using Cover Flange in Aluminum

WR-75 Waveguide Circulator with 18 dB Min. Isolation from 10 GHz to 15 GHz using Cover Flange in Aluminum

The FMWCR1002 is a Waveguide Circlator offering 18 dB minimum isolation over the full M band frequency range of 10 to 15 GHz. The design achieves high isolation with wide band performance and the WR-7...

The FMWCR1002 is a Waveguide Circlator offering 18 dB minimum isolation over the full M band frequency range of 10 to 15 GHz. The design achieves high isolation with wide band performance and the WR-75 waveguide uses compatible cover flanges on all ports and has a power rating of 10 watts (CW). Fairview offers a wide variety of circulators and waveguide circulators to fit your needs. These unique devices enable two signals to use one channel. The classic use of this three port device is for the line between an antenna and a transceiver, allowing the receive signal to come from the antenna (port 1) to the receiver (port 2) while the transmit signal goes from the transmitter (port 3) to the antenna (port 1). An isolator can be created by terminating one port into a matched load. These components can be used in antenna transmitting and receiving, radar, amplifier systems and anything that requires isolation from a signal reflection and the ability to send signals in opposite directions down a single channel. These circulators feature excellent insertion loss, high isolation and reliability.

Expand

SKU FMWCR1002 FMWCR1002 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

wr62-waveguide-circulator-18db-18-ghz-cover-flange-aluminum-fmwcr1003 Fairview Microwave FMWCR1003

1 available

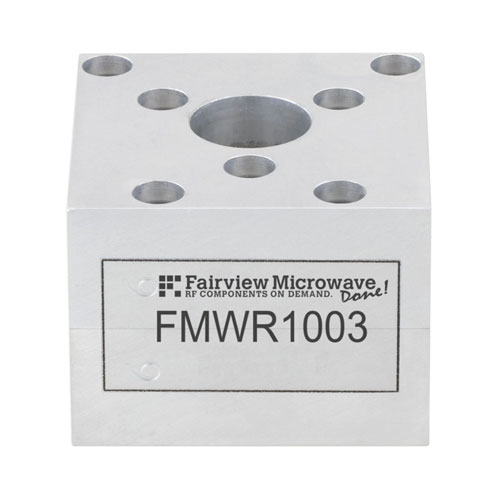

WR-62 Waveguide Circulator with 18 dB Min. Isolation from 12.4 GHz to 18 GHz using Cover Flange in Aluminum

Compare

SKU FMWCR1003

Starting price $2,160.00

Estimated shipment Next Business Day

wr90-waveguide-circulator-18db-12.4-ghz-cover-flange-aluminum-fmwcr1001 Fairview Microwave FMWCR1001

Call us

WR-90 Waveguide Circulator with 18 dB Min. Isolation from 8.2 GHz to 12.4 GHz using Cover Flange in Aluminum

Compare

SKU FMWCR1001

Starting price $1,980.00

Estimated shipment Call Us

wr28-waveguide-circulator-15db-40-ghz-cover-flange-aluminum-fmwcr1005 Fairview Microwave FMWCR1005

Call us

WR-28 Waveguide Circulator with 15 dB Min. Isolation from 26.5 GHz to 40 GHz using Cover Flange in Aluminum

Compare

SKU FMWCR1005

Starting price

Estimated shipment Call Us

wr112-waveguide-circulator-18db-10-ghz-cover-flange-aluminum-fmwcr1000 Fairview Microwave FMWCR1000

1 available

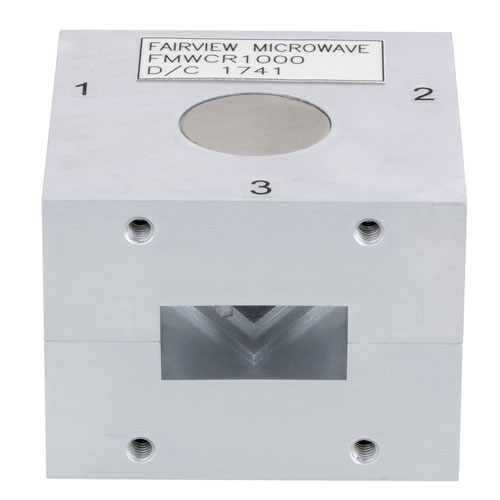

WR-112 Waveguide Circulator with 18 dB Min. Isolation from 7.05 GHz to 10 GHz using Cover Flange in Aluminum
