Waveguide Converter Mixer WR-10 From 75 GHz to 110 GHz, IF from DC to 35 GHz And LO Power of +13 dBm, UG-387/U-M Flange, W Band

Waveguide Converter Mixer WR-10 From 75 GHz to 110 GHz, IF from DC to 35 GHz And LO Power of +13 dBm, UG-387/U-M Flange, W Band

The FMWGMX1006 is a WR-10 Waveguide Down Converter Mixer, oFMrating acrossthe W Band from 75 GHz to 110 GHz. The IF frequency band is DC to 35 GHz witha nominal LO drive level of +13 dB. Typical...

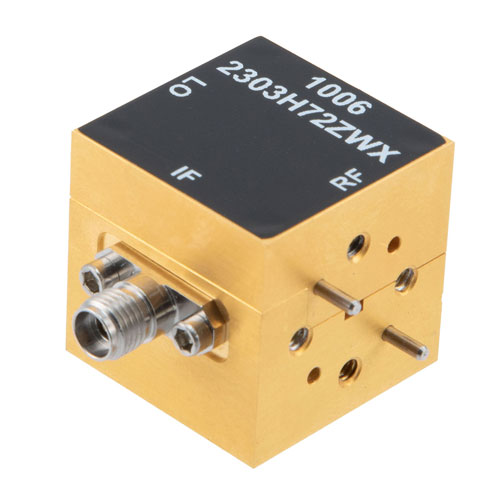

The FMWGMX1006 is a WR-10 Waveguide Down Converter Mixer, oFMrating acrossthe W Band from 75 GHz to 110 GHz. The IF frequency band is DC to 35 GHz witha nominal LO drive level of +13 dB. Typical performance for the 50 Ohm doublebalanced mixer design includes 11 dB conversion loss and 30 dB isolation, witha maximum RF input power level of +17 dBm. The rugged and small size goldplated aluminum package supports a UG-383/U-M waveguide flange pattern at RFand LO ports, and an SMA female connector at the IF port. The mixer design isRoHS compliant and oFMrates across a temFMrature range from -10°C to +45°C.

Expand

SKU FMWGMX1006 FMWGMX1006 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2023) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
