20 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze

20 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze

Name: 20 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze
Brand: Fairview Microwave, Inc.
SKU: FMWCT1024
Price: 1900.0 USD
Availability: InStock

Fairview Microwave WR-90 waveguide coupler has a nominal coupling level of 20 dB and is in stock for same-day shipment worldwide. This 20 dB waveguide FMWCT1024 of the crossguide with termination 3 p...

Fairview Microwave WR-90 waveguide coupler has a nominal coupling level of 20 dB and is in stock for same-day shipment worldwide. This 20 dB waveguide FMWCT1024 of the crossguide with termination 3 port coupler design is always in-stock for purchase online or from our knowledgeable sales staff by phone. High-quality WR-90 waveguide crossguide with termination couplers from Fairview Microwave are equipped with brass CPR-90G grooved flanges. Our WR-90 waveguide 3 port coupler with CPR-90G grooved flanges operates up to a maximum frequency of 12.4 GHz. Fairview Microwave FMWCT1024 precision microwave coupler at 20dB typical coupling value is manufactured with a bronze body providing industry-leading electrical performance.These crossguide with termination 3 port waveguide couplers that operate from 8.2 GHz to 12.4 GHz are bi-directional components that are used in various applications like radar, test benches, satellites, and more. Fairview Microwave’s expert technical support is available on this FMWCT1024 20 dB brass coupler as well as on over 1,000,000 other products. Our 8.2 GHz min WR-90 coupler FMWCT1024 is one of over 220 waveguide couplers always available from Fairview Microwave. The FMWCT1024 datasheet for this Fairview Microwave WR-90 20dB CPR-90G flanged waveguide coupler is available in PDF format with CAD drawing, dimensions and specifications which can be found above for downloadFMWCT1024 crossguide with termination couplers are always in stock for immediate shipping from our ISO 9001:2008 certified facility. This WR-90 20dB coupler with CPR-90G CPR-90G brass flanges is rated at 4 watts maximum power input. Our high-quality 4 watt maximum input 3 port crossguide with termination couplers have a typical insertion loss of 0.1 dB. Fairview Microwave’s 0.1 dB insertion loss WR-90 brass waveguide crossguide with termination couplers have a typical main line voltage standing wave ratio (VSWR) of 1.05:1 and a typical termination VSWR of 1.02:1. Our 8.2 GHz to 12.4 GHz frequency range WR-90 waveguide couplers have a typical directivity value of 25 dB. Fairview Microwave WR-90 brass waveguide crossguide with termination coupler FMWCT1024 is 6.5 inches long.Originally Sun Moon Electronics, Fairview Microwave has supplied state-of-the-art RF components like these 20 dB nominal coupling value crossguide with termination waveguide couplers with CPR-90G flanges since 1992. This 6.5 inch long brass WR-90 waveguide is just one component of a large family of over 220 couplers that Fairview Microwave offers with simple purchasing, immediate shipping worldwide, and expert tech support always on hand. The Fairview Microwave website is where you can find our WR-90 20dB CPR-90G flanged waveguide coupler as well as other waveguide components, purchase online or contact our knowledgeable sales team now for further details.

Expand

SKU FMWCT1024 FMWCT1024 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-90

Flange Size

None Flange

Flange Type

CPR-90G Flange

Flange Group

Grooved

Minimum Frequency

8.2 GHz

Maximum Frequency

12.4 GHz

Coupling

20 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

50-db-wr-90-waveguide-crossguide-coupler-cpr-90g-3-port-fmwct1027 Fairview Microwave FMWCT1027

Call us

50 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze

Compare

SKU FMWCT1027

Starting price

Estimated shipment Call Us

40-db-wr-90-waveguide-crossguide-coupler-cpr-90g-3-port-fmwct1026 Fairview Microwave FMWCT1026

Call us

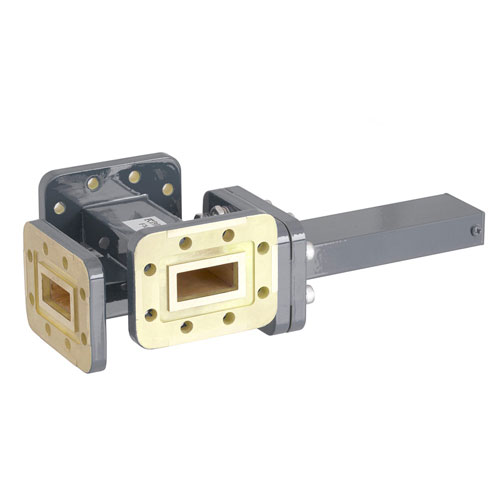

40 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze

Compare

SKU FMWCT1026

Starting price

Estimated shipment Call Us

30-db-wr-90-waveguide-crossguide-coupler-cpr-90g-3-port-fmwct1025 Fairview Microwave FMWCT1025

Call us

30 dB WR-90 Waveguide Crossguide 3 Port Coupler with CPR-90G Flange from 8.2 GHz to 12.4 GHz in Bronze

Compare

SKU FMWCT1025

Starting price

Estimated shipment Call Us

20db-wr90-waveguide-crossguide-coupler-cpr-90g-n-12.4ghz-fmwct1080 Fairview Microwave FMWCT1080

2 available

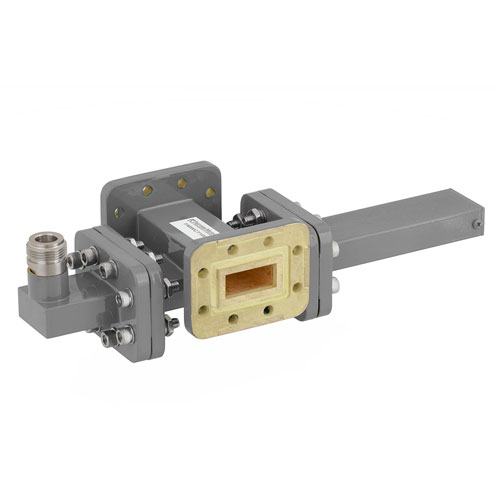

20 dB WR-90 Waveguide Crossguide Coupler with CPR-90G Flange and N Female Coupled Port from 8.2 GHz to 12.4 GHz in Bronze
