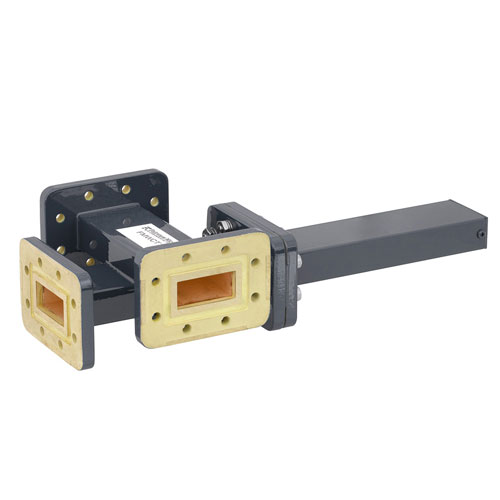

30 dB WR-112 Waveguide Crossguide 3 Port Coupler with CPR-112G Flange from 7.05 GHz to 10 GHz in Bronze

30 dB WR-112 Waveguide Crossguide 3 Port Coupler with CPR-112G Flange from 7.05 GHz to 10 GHz in Bronze

Name: 30 dB WR-112 Waveguide Crossguide 3 Port Coupler with CPR-112G Flange from 7.05 GHz to 10 GHz in Bronze
Brand: Fairview Microwave, Inc.
SKU: FMWCT1033
Price: 2030.0 USD
Availability: InStock

Fairview Microwave WR-112 waveguide coupler has a nominal coupling level of 30 dB and is in stock for same-day shipment worldwide. This 30 dB waveguide FMWCT1033 of the crossguide with termination 3 ...

Fairview Microwave WR-112 waveguide coupler has a nominal coupling level of 30 dB and is in stock for same-day shipment worldwide. This 30 dB waveguide FMWCT1033 of the crossguide with termination 3 port coupler design is always in-stock for purchase online or from our knowledgeable sales staff by phone. High-quality WR-112 waveguide crossguide with termination couplers from Fairview Microwave are equipped with brass CPR-112G grooved flanges. Our WR-112 waveguide 3 port coupler with CPR-112G grooved flanges operates up to a maximum frequency of 10 GHz. Fairview Microwave FMWCT1033 precision microwave coupler at 30dB typical coupling value is manufactured with a bronze body providing industry-leading electrical performance.These crossguide with termination 3 port waveguide couplers that operate from 7.05 GHz to 10 GHz are bi-directional components that are used in various applications like radar, test benches, satellites, and more. Fairview Microwave’s expert technical support is available on this FMWCT1033 30 dB brass coupler as well as on over 1,000,000 other products. Our 7.05 GHz min WR-112 coupler FMWCT1033 is one of over 220 waveguide couplers always available from Fairview Microwave. The FMWCT1033 datasheet for this Fairview Microwave WR-112 30dB CPR-112G flanged waveguide coupler is available in PDF format with CAD drawing, dimensions and specifications which can be found above for downloadFMWCT1033 crossguide with termination couplers are always in stock for immediate shipping from our ISO 9001:2008 certified facility. This WR-112 30dB coupler with CPR-112G CPR-112G brass flanges is rated at 5 watts maximum power input. Our high-quality 5 watt maximum input 3 port crossguide with termination couplers have a typical insertion loss of 0.1 dB. Fairview Microwave’s 0.1 dB insertion loss WR-112 brass waveguide crossguide with termination couplers have a typical main line voltage standing wave ratio (VSWR) of 1.05:1 and a typical termination VSWR of 1.02:1. Our 7.05 GHz to 10 GHz frequency range WR-112 waveguide couplers have a typical directivity value of 25 dB. Fairview Microwave WR-112 brass waveguide crossguide with termination coupler FMWCT1033 is 8.75 inches long.Originally Sun Moon Electronics, Fairview Microwave has supplied state-of-the-art RF components like these 30 dB nominal coupling value crossguide with termination waveguide couplers with CPR-112G flanges since 1992. This 8.75 inch long brass WR-112 waveguide is just one component of a large family of over 220 couplers that Fairview Microwave offers with simple purchasing, immediate shipping worldwide, and expert tech support always on hand. The Fairview Microwave website is where you can find our WR-112 30dB CPR-112G flanged waveguide coupler as well as other waveguide components, purchase online or contact our knowledgeable sales team now for further details.

Expand

SKU FMWCT1033 FMWCT1033 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-112

Flange Size

None Flange

Flange Type

CPR-112G Flange

Flange Group

Grooved

Minimum Frequency

7.05 GHz

Maximum Frequency

10 GHz

Coupling

30 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

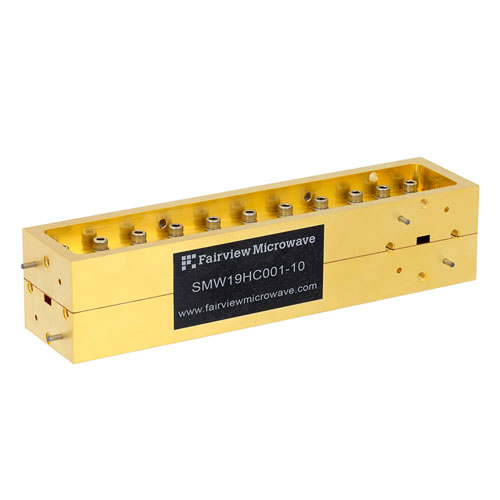

wr-19-directional-waveguide-coupler-10db-ug383-mod-h-plane-smw19hc001-10 Fairview Microwave SMW19HC001-10

undefined

10 dB WR-19 Waveguide Broadwall Coupler with UG-383/U-Mod Round Cover Flange and H-Plane Coupled Port from 40 GHz to 60 GHz in Brass Copper

Compare

SKU SMW19HC001-10

Starting price

Estimated shipment Call Us

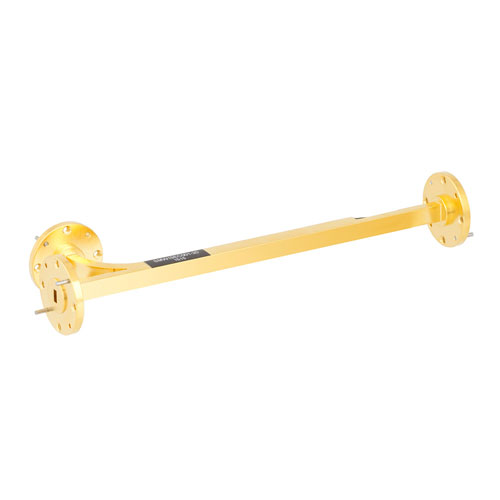

wr-19-directional-waveguide-coupler-20db-ug383-mod-e-bend-smw19ec001-20 Fairview Microwave SMW19EC001-20

3 available

20 dB WR-19 Waveguide Broadwall Coupler with UG-383/U-Mod Round Cover Flange and E-Plane Coupled Port from 40 GHz to 60 GHz in Brass Copper

Compare

SKU SMW19EC001-20

Starting price $1,510.00

Estimated shipment Today

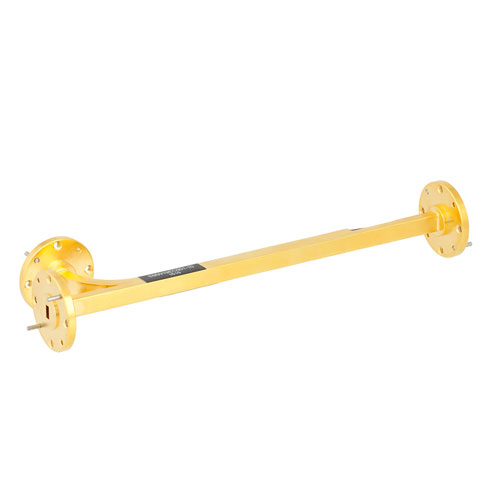

wr-19-directional-waveguide-coupler-10db-ug383-mod-e-bend-smw19ec001-10 Fairview Microwave SMW19EC001-10

3 available

10 dB WR-19 Waveguide Broadwall Coupler with UG-383/U-Mod Round Cover Flange and E-Plane Coupled Port from 40 GHz to 60 GHz in Brass Copper

Compare

SKU SMW19EC001-10

Starting price $1,510.00

Estimated shipment Today

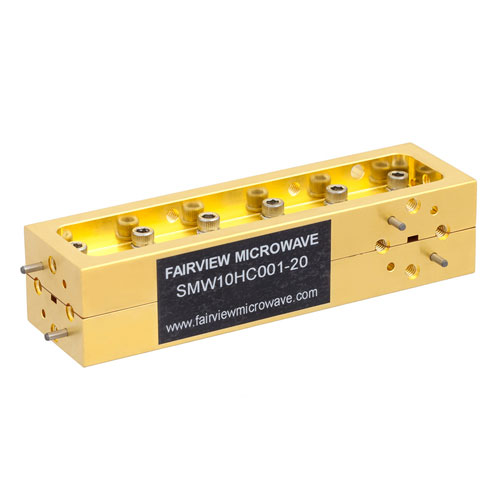

wr-10-directional-waveguide-coupler-20db-ug-387-mod-h-plane-smw10hc001-20 Fairview Microwave SMW10HC001-20
