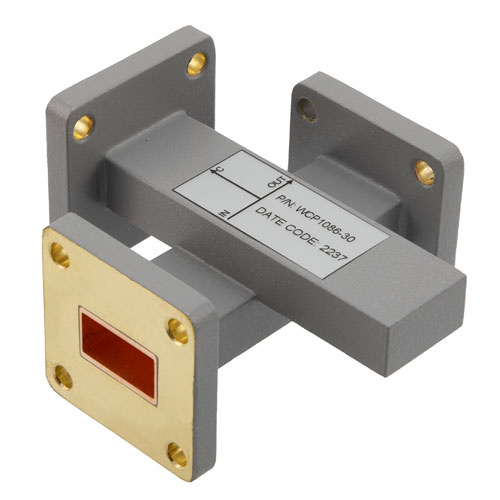

30 dB WR-62 Waveguide Crossguide 3 Port Coupler with UG Cover Flange from 11.9 GHz to 18 GHz in Brass

30 dB WR-62 Waveguide Crossguide 3 Port Coupler with UG Cover Flange from 11.9 GHz to 18 GHz in Brass

The FMWCP1086-30 is a 30 dB WR-62 three port crossguide coupler with integrated UG Cover Flange for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected via...

The FMWCP1086-30 is a 30 dB WR-62 three port crossguide coupler with integrated UG Cover Flange for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected via waveguide to allow signal sampling /monitoring. The coupler has a typical VSWR of 1.1:1 and are made of Brass with UG Cover flanges. The FMWCP1086-30 is part of a family of cross guide couplers offered by Fairview Microwave with coupling values ranging from 20 to 50 dB.

Expand

SKU FMWCP1086-30 FMWCP1086-30 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-62

Flange Size

None Flange

Flange Type

UG Cover Flange

Minimum Frequency

11.9 GHz

Maximum Frequency

18 GHz

Maximum VSWR

1.15:1

Coupling

30 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
