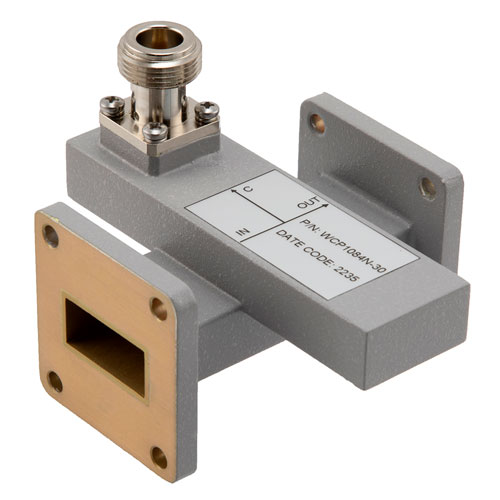

30 dB WR-90 Waveguide Crossguide Coupler with UG Cover Flange and N Female Coupled Port from 8.2 GHz to 12.5 GHz in Aluminum

30 dB WR-90 Waveguide Crossguide Coupler with UG Cover Flange and N Female Coupled Port from 8.2 GHz to 12.5 GHz in Aluminum

The FMWCP1084N-30 is a 30 dB WR-90 three port crossguide coupler with integrated N Female connector for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected...

The FMWCP1084N-30 is a 30 dB WR-90 three port crossguide coupler with integrated N Female connector for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected via coax to allow signal sampling /monitoring. The coupler has a typical VSWR of 1.1:1 and are made of Aluminum with UG Cover flanges. The FMWCP1084N-30 is part of a family of cross guide couplers offered by Fairview Microwave with coupling values ranging from 20 to 50 dB.

Expand

SKU FMWCP1084N-30 FMWCP1084N-30 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-90

Flange Size

None Flange

Flange Type

UG Cover Flange

Minimum Frequency

8.2 GHz

Maximum Frequency

12.5 GHz

Maximum VSWR

1.25:1

Coupling

30 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
