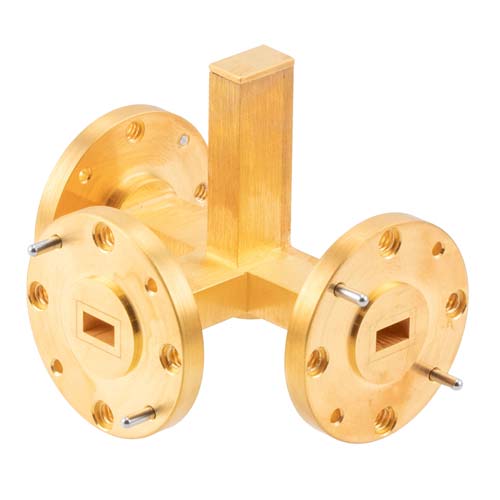

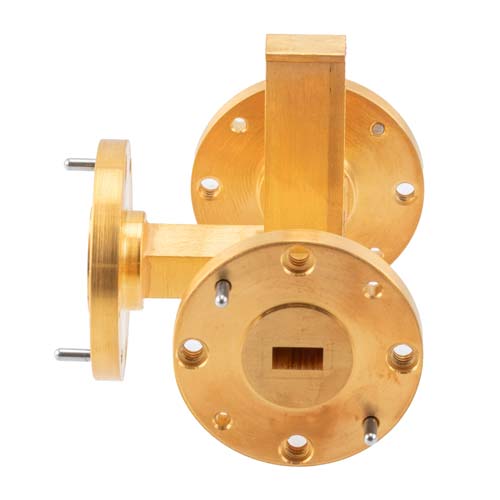

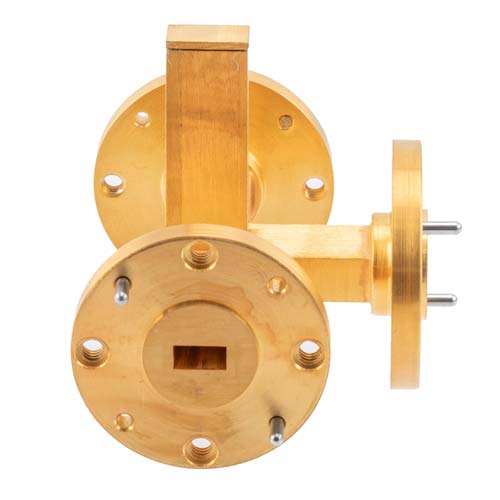

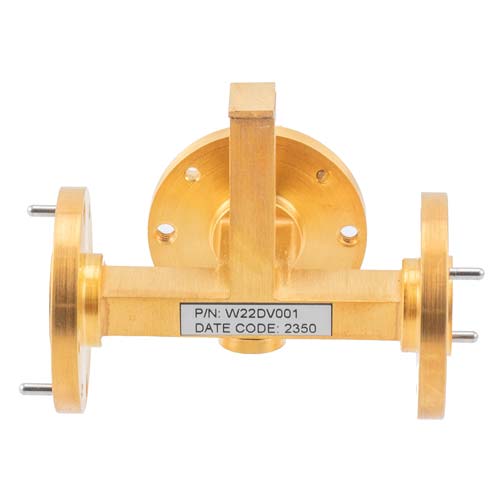

WR-22 2 Way Waveguide Power Divider From 36.7 GHz to 40 GHz UG Round Cover Flange, Brass

WR-22 2 Way Waveguide Power Divider From 36.7 GHz to 40 GHz UG Round Cover Flange, Brass

Waveguide power divider part number FMW22DV001 is only one product of a wide selection of coax splitter components we supply. Our 2 way waveguide power divider is rated for a minimum frequency of 36.7...

Waveguide power divider part number FMW22DV001 is only one product of a wide selection of coax splitter components we supply. Our 2 way waveguide power divider is rated for a minimum frequency of 36.7 GHz and a maximum frequency of 40 GHz. Our 2 way waveguide power divider comes with WR-22 waveguide interface and has 1000 kW of peak input power. This waveguide power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.Our part number FMW22DV001 2 way WR-22 power divider/radio frequency splitter has an UG Cover flange type and a maximum input power (CW) of 2 Watts. Our waveguide power splitter has an copper housing. This waveguide power divider has a 0.30 maximum amplitude balance. This 40 GHz waveguide power divider has 3 degrees maximum phase balance. Additional waveguide power divider specifications and dimensions can be found on its PDF specification datasheet and CAD drawings above. The FMW22DV001 waveguide power divider from Fairview Microwave is ideal for test benches, radarsatellite, microwave radio, attenuation measurements and power measurements applications. This 2 way waveguide power divider from Fairview Microwave has a maximum insertion loss of 0.4 dB. The maximum input VSWR of this splitter/divider is 1.3:1 and the minimum isolation is 17 dB.Our 2 port waveguide power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Fairview Microwave. This 2 way waveguide power divider splitter can be bought and shipped worldwide the same-day as with Fairview Microwave’s other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect waveguide power divider for your requirements.

Expand

SKU FMW22DV001 FMW22DV001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Number of Output Ports

2

Min Freq

36.7 GHz

Max Freq

40 GHz

VSWR, Max Input

1.2:1

VSWR, Max Output

1.3:1

Insertion Loss, Max

0.4 dB

Isolation Min

17 dB

Amplitude Balance, Max

0.3 dB

Max Input Power

2 Watt

Housing Material

Copper

Phase Balance, Max

3 Degrees

Input Waveguide Interface

WR-22

Output Waveguide Interface

WR-22

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2-way-waveguide-power-divider-wr-28-3-watt-fmw28dv001 Fairview Microwave FMW28DV001

1 available

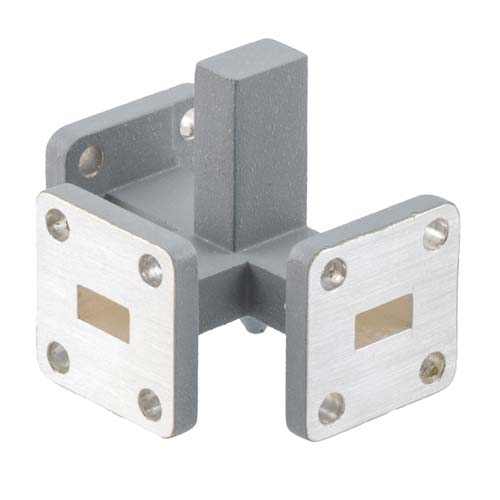

WR-28 2 Way Waveguide Power Divider From 33.7 GHz to 34.7 GHz UG Square Cover Flange, Brass

Compare

SKU FMW28DV001

Starting price $1,350.00

Estimated shipment Next Business Day

2-way-waveguide-power-divider-wr-90-30-watt-fmw90dv001 Fairview Microwave FMW90DV001

1 available

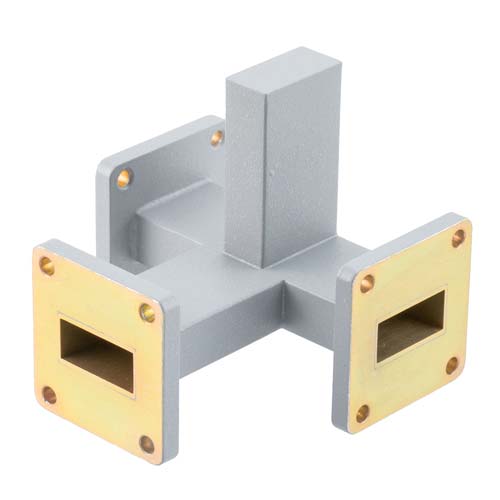

WR-90 2 Way Waveguide Power Divider From 9.3 GHz to 9.5 GHz UG Square Cover Flange, Aluminum

Compare

SKU FMW90DV001

Starting price $1,710.00

Estimated shipment Next Business Day

2-way-waveguide-power-divider-wr-34-4-watt-fmw34dv001 Fairview Microwave FMW34DV001

1 available

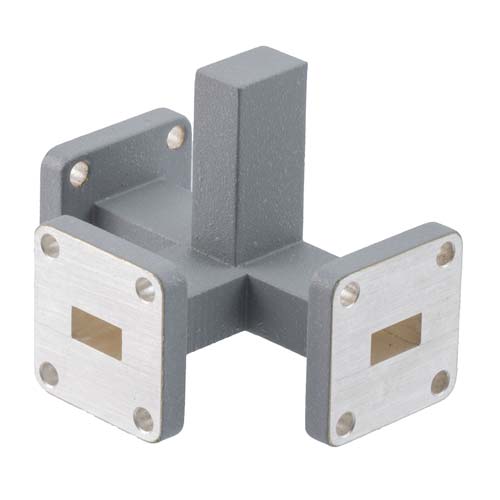

WR-34 2 Way Waveguide Power Divider From 27 GHz to 31 GHz UG Square Cover Flange, Brass

Compare

SKU FMW34DV001

Starting price $1,350.00

Estimated shipment Next Business Day

2-way-waveguide-power-divider-wr-51-10-watt-fmw51dv001 Fairview Microwave FMW51DV001

1 available

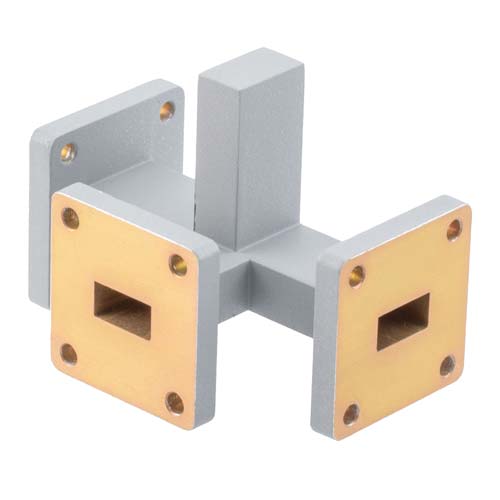

WR-51 2 Way Waveguide Power Divider From 17.7 GHz to 21.2 GHz UG Square Cover Flange, Aluminum
