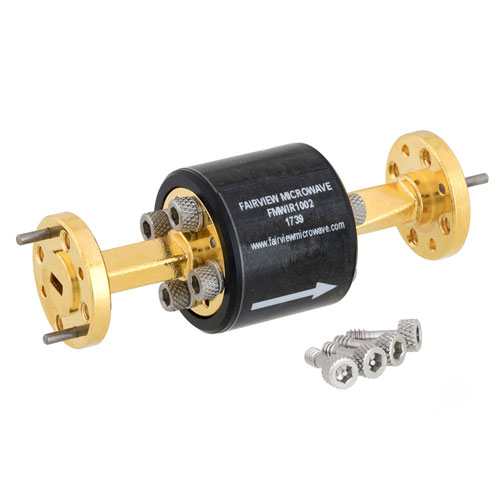

WR-15 Waveguide Isolator with 25 dB min Isolation from 50 GHz to 75 GHz using Round Cover UG-385/U Flange

WR-15 Waveguide Isolator with 25 dB min Isolation from 50 GHz to 75 GHz using Round Cover UG-385/U Flange

Waveguide isolator FMWIR1002 from Fairview Microwave has same-day shipping. Our high-quality WR-15 waveguide isolator achieves 25 dB minimum isolation. Fairview Microwave 25 dB min WR-15 waveguide iso...

Waveguide isolator FMWIR1002 from Fairview Microwave has same-day shipping. Our high-quality WR-15 waveguide isolator achieves 25 dB minimum isolation. Fairview Microwave 25 dB min WR-15 waveguide isolator FMWIR1002 operates in the 50 GHz to 75 GHz frequency range. This 50 GHz to 75 GHz Faraday design WR-15 isolator utilizes round cover flanges. FMWIR1002 75 GHz max frequency isolators feature gold plated UG-385/U flanges and are available from the Fairview Microwave website or our knowledgeable sales staff. WR-15 waveguide isolator with 25 dB min isolation and 50 GHz to 75 GHz frequency range has a weight of 0.15 lbs. Waveguide WR-15 isolators with round cover UG-385/U flanges are continuously in-stock and cover the V band of frequencies. Fairview Microwave has, since 1992, provided high-quality RF parts like this WR-15 V band waveguide Faraday isolator FMWIR1002. These round cover UG-385/U flange 75 GHz maximum frequency waveguide isolators have a maximum insertion loss of 1.8 dB. Fairview Microwave industry-leading same-day ship waveguide product line includes these round cover UG-385/U flange waveguide 50 GHz to 75 GHz isolators which present 1 watt forward power rating. WR-15 V band isolators with 1.8 dB insertion loss prevail in radar systems, telecom infrastructure, R&D labs and military. Waveguide isolator WR-15 with a power rating of 1 watt has a typical voltage standing wave ratio (or VSWR) of 1.4:1. This Faraday isolator with 1.4:1 VSWR at 0.15 lbs measures 2.5 inches long and 0.94 inches high. Fairview Microwave offers expert tech support on these 50 GHz min frequency WR-15 two-port waveguide isolators with 25 dB min isolation and 1.8 dB insertion loss. Specifications and dimensions for WR-15 V band waveguide isolator FMWIR1002 from Fairview Microwave are included in precise CAD drawings and specs on the PDF datasheet download. With same-day shipping worldwide and our knowledgeable sales staff, Fairview Microwave should be your first choice for waveguide isolators like FMWIR1002 WR-15 with round cover UG-385/U flanges and 1.4:1 VSWR.

Expand

SKU FMWIR1002 FMWIR1002 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Waveguide Size

WR-15

Flange Size

UG-385/U Flange

Flange Type

Round Cover Flange

Minimum Frequency

50000.000 MHz

Maximum Frequency

75000.000 MHz

Maximum VSWR

1.400

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
