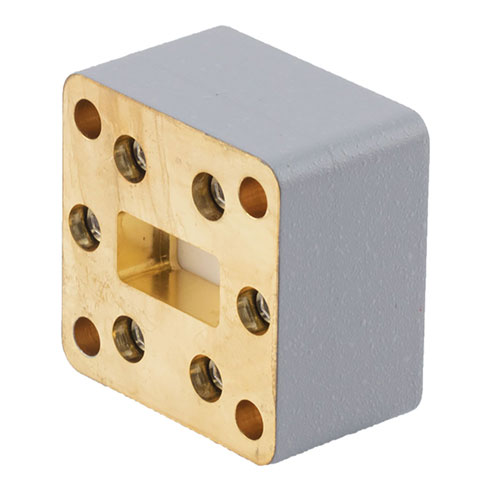

Copper Brass Waveguide Pressure Window size WR-62 Passivation finish 11.9 GHz to 18 GHz range

Copper Brass Waveguide Pressure Window size WR-62 Passivation finish 11.9 GHz to 18 GHz range

Waveguide pressure window size WR-62, 500 watts (CW) Input power, by Fairview Microwave is a high-quality product that meets customer and regulatory requirements and comes with same day shipping. Part...

Waveguide pressure window size WR-62, 500 watts (CW) Input power, by Fairview Microwave is a high-quality product that meets customer and regulatory requirements and comes with same day shipping. Part number FMWGP1010 waveguide vacuum window with 1.25:1 max VSWR, keeps contaminants out and provides an efficient seal at pressure when waveguide assemblies are pressurized. The solidly built WR62 pressure window comes in an copper brass body and passivation finish is used in satellite communication, radar, wireless communications, test instrumentation, and other high power applications. Fairview Microwave's vacuum window for waveguide has an insertion loss of 0.25dB Max, and an operating frequency between 11.9 GHz and 18 GHz.The well-built, FMWGP1010 WR 62 by Fairview Microwave, is ideally suited for applications in the most demanding conditions. Our waveguide pressure window with max power handling of 500 watts (CW) is used in spacer millimeter wave applications, RF testing, and research institutes. This WR-62 waveguide pressure window with 1.25:1 max VSWR is one of many dependable waveguide products that Fairview Microwave has been providing since it started business in 1992. With a maximum insertion loss of 0.25dB and frequency range of 11.9 GHz-18 GHz, the waveguide window comes in a length of 1.311in, Width of 1.311in, Height of 0.787in and Weighs 0.22lbs.Fairview WR 62, FMWGP1010 waveguide vacuum window's tight seal prevents impurities like dust, dirt and condensation from getting into the pressurized waveguide system. With the copper brass passivation RF waveguide window isolates pressurized sections of the waveguide from non-pressurized sections in a system and ensures good RF performance. Download our FMWGP1010 product data sheet for specifications, dimensions, and CAD drawing on the WR 62 1.25:1 Max VSWR waveguide pressure window. As a trusted supplier to global engineers, we at Fairview Microwave promise that our copper brass passivation waveguide pressure window is a safe and reliable product that meets or exceeds your microwave engineering needs.Manufactured to the highest international standards, our pressure window with 500 watts (CW) input power and 1.25:1 VSWR (Max) has passed through a rigorous Quality Management System (QMS) and comes from an ISO 9001:2015 certified facility. Fairview Microwave's expert RF and Microwave Technical Support Team is on hand to assist you with any inquiries on WR-62, copper brass passivation 11.9 GHz to 18 GHz waveguide frequency range, waveguide pressure window. We will ship your WR-62 Size 0.25dB maximum Insertion loss waveguide pressure window and all your Waveguide accessories same-day via UPS or FedEx. Order your WR-62 Size, copper brass passivation 11.9 GHz to 18 GHz Frequency waveguide pressure window, 7 days a week, 24 hours a day using our on-line ordering system with no MOQs (minimum order quantity).

Expand

SKU FMWGP1010 FMWGP1010 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-62

Min Freq (GHz)

11.9 GHz

Max Freq (GHz)

18 GHz

Insertion Loss, Max

0.25 dB

VSWR, Max

1.25:1

Input Power (CW)

500 Watts

Material

Copper Brass

Body Finish

Passivation

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

Call us

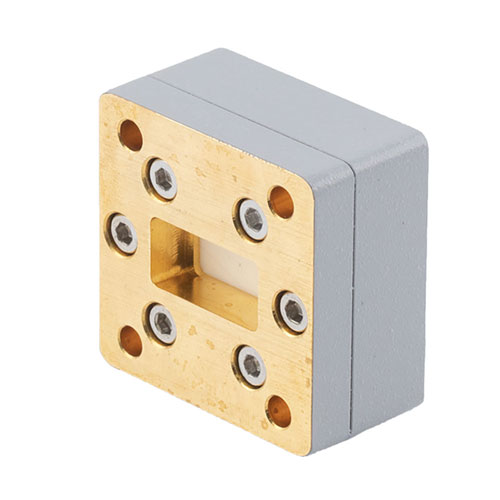

Copper Brass Waveguide Pressure Window size WR-75 Passivation finish 9.84 GHz to 15 GHz range

Compare

SKU FMWGP1009

Starting price $250.00

Estimated shipment Call Us

1 available

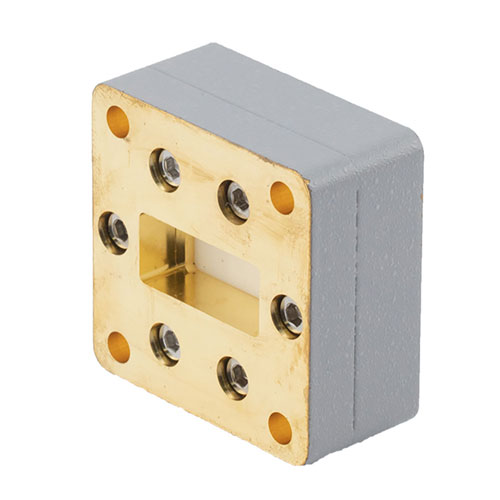

Copper Brass Waveguide Pressure Window size WR-90 Passivation finish 8.2 GHz to 12.5 GHz range

Compare

SKU FMWGP1008

Starting price $895.00

Estimated shipment Next Business Day

3 available

Copper Brass Waveguide Pressure Window size WR-51 Passivation finish 14.5 GHz to 22 GHz range

Compare

SKU FMWGP1011

Starting price $242.86

Estimated shipment Next Business Day

2 available

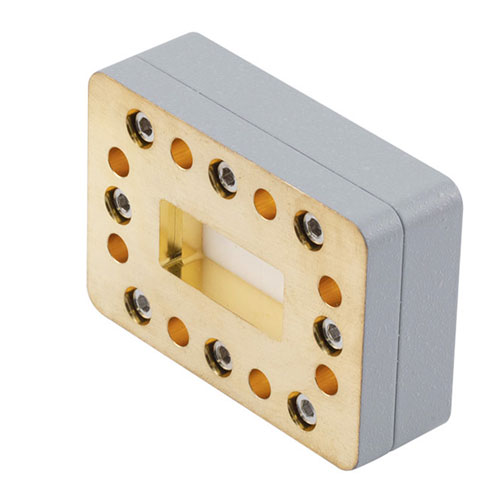

Copper Brass Waveguide Pressure Window size WR-112 Passivation finish 6.57 GHz to 9.99 GHz range
