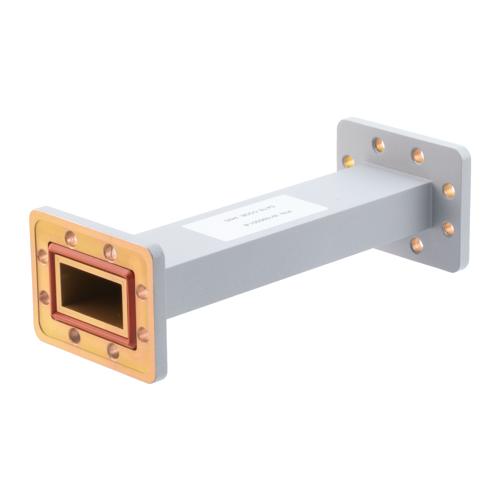

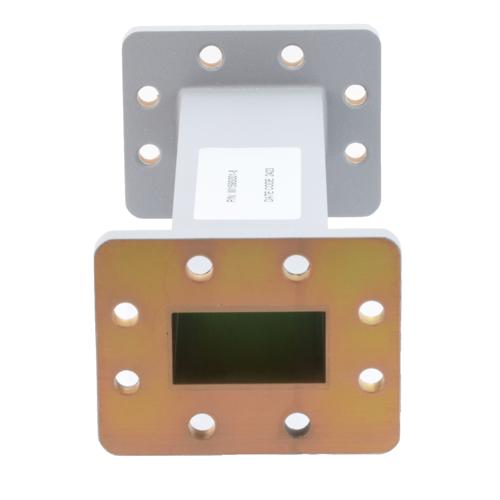

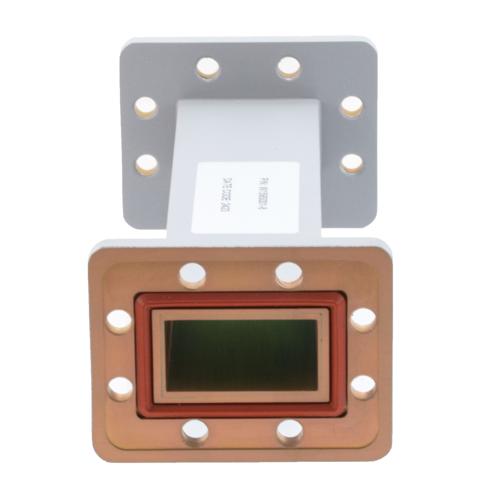

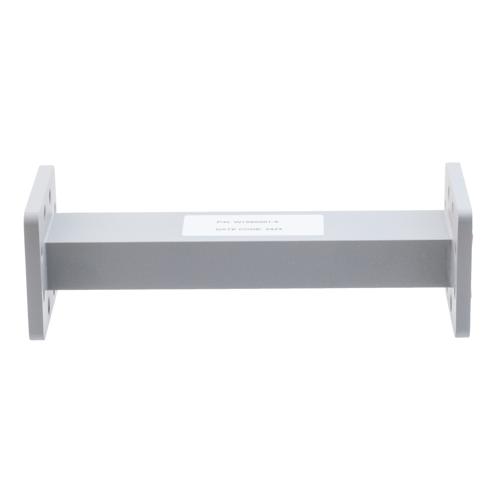

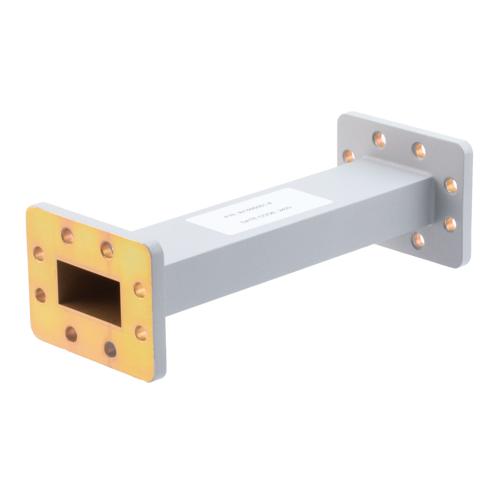

WR-159 Waveguide Section 8 Inch Straight Length, UG Cover and Grooved Flanges from 4.64 GHz to 7.05 GHz

WR-159 Waveguide Section 8 Inch Straight Length, UG Cover and Grooved Flanges from 4.64 GHz to 7.05 GHz

Fairview Microwave waveguide section FMW159S001-8 is manufactured in a straight waveguide design. Our straight waveguide section has a waveguide size of WR-159 for both sides. This WR-159 waveguide se...

Fairview Microwave waveguide section FMW159S001-8 is manufactured in a straight waveguide design. Our straight waveguide section has a waveguide size of WR-159 for both sides. This WR-159 waveguide section is constructed with a UG Cover flange on side 1 and a UG Grooved flange on side 2. Make your online purchase right now to take advantage of our same-day shipping.This 8-inch waveguide section in WR-159 size has a minimum frequency of 4.64 GHz and a maximum frequency of 7.05 GHz. Our WR-159 waveguide section includes a chromate conversion plated aluminum waveguide material. Fairview Microwave WR-159 straight waveguide section is constructed to precise RF/microwave industry specs, and you can find more waveguide section datasheet specifications above.This WR-159 waveguide section is built of aluminum waveguide material. The input and output of this waveguide section are UG Cover and UG Grooved flanges made of aluminum waveguide material. The FMW159S001-8 straight waveguide section is appropriate for satellite communications, radar systems and test and laboratory setups applications. This WR-159 waveguide section can operate at temperatures ranging from -40 to 70 deg C.Fairview Microwave straight waveguide section part number FMW159S001-8 is in stock at our facility in the United States. Our waveguide WR-159 section is only part of over one million in-stock components for RF, microwave, and millimeter wave applications that are ready to ship same day worldwide. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect WR-159 waveguide section for your requirements.

Expand

SKU FMW159S001-8 FMW159S001-8 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size 1

WR-159

Waveguide Size 2

WR-159

Length

8 inches

Frequency, Min

4.64 GHz

Frequency, Max

7.05 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
