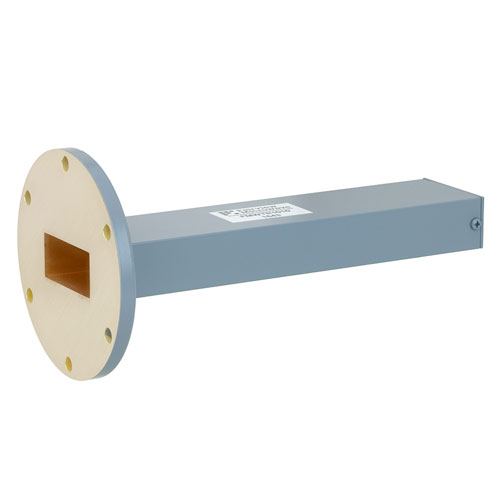

Commercial Grade WR-137 Waveguide Termination 6 Watts With a 5.85 GHz to 8.2 GHz Frequency Range

Commercial Grade WR-137 Waveguide Termination 6 Watts With a 5.85 GHz to 8.2 GHz Frequency Range

The FMWTR1010 is a WR-137 waveguide termination / load that operates in the frequency range of 5.85 GHz to 8.2 GHz. This WR-137 waveguide termination has a typical VSWR of 1.02:1. These waveguide term...

The FMWTR1010 is a WR-137 waveguide termination / load that operates in the frequency range of 5.85 GHz to 8.2 GHz. This WR-137 waveguide termination has a typical VSWR of 1.02:1. These waveguide termination designs are made of painted brass copper and incorporate a standard UG-344/U Round Cover flanges.Fairview Microwave waveguide terminations / loads are designed so virtually all applied power is absorbed, thus assuring a low VSWR. The power rating on this WR-137 termination is 6 watts, other detailed specifications and a diagram drawing can be found on this datasheet PDF below. Fairview Microwave offers a complete family of waveguide terminations that are in-stock for same day shipment.

Expand

SKU FMWTR1010 FMWTR1010 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Maximum Power

6 Watt

Waveguide Size

WR-137

Minimum Frequency

5.85 GHz

Maximum Frequency

8.2 GHz

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

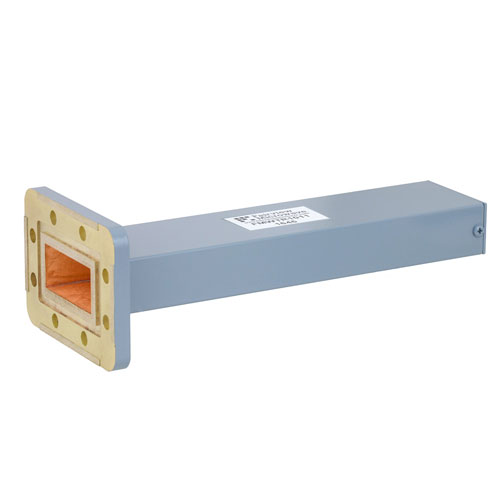

wr-137-waveguide-termination-6-watts-commercial-grade-5.85-8.2-ghz-fmwtr1011 Fairview Microwave FMWTR1011
