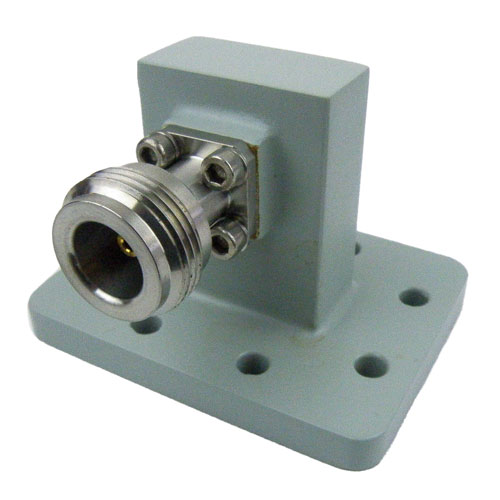

WR-90 to Type N Female Waveguide to Coax Adapter UDR100 Standard with 8.2 GHz to 12.4 GHz X Band in Aluminum

WR-90 to Type N Female Waveguide to Coax Adapter UDR100 Standard with 8.2 GHz to 12.4 GHz X Band in Aluminum

Fairview Microwave waveguide to coaxial adapter (also known as a waveguide coaxial transition) 90AC206NB is manufactured with a right angle design. Right angle waveguide to coaxial adapter / transitio...

Fairview Microwave waveguide to coaxial adapter (also known as a waveguide coaxial transition) 90AC206NB is manufactured with a right angle design. Right angle waveguide to coaxial adapter / transition has a waveguide size of WR-90 and UDR100 flange. This WR-90 waveguide to coax adapter / transition is constructed with a N coaxial connector that is 50 Ohm and female gender.WR-90 waveguide to coaxial transition adapter with N connector has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz. Fairview WR-90 N transition adapter for coax is designed with a body material of aluminum and connector body material of passivated stainless steel. Our WR-90 to N female connector waveguide to coax adapter is manufactured based on precise radio frequency industry specs and you can find more waveguide adapter / transition datasheet specifications above.Fairview Microwave WR-90 waveguide transition adapter to coaxial N part number 90AC206NB is currently in stock at our location. Our right angle wave guide WR-90 to N coaxial cable transition adapter is part of over 1 million in-stock components for RF, microwave and millimeter wave applications that are ready to ship same day worldwide.

Expand

SKU 90AC206NB 90AC206NB -0

QTY available Call us

Price $565.00

Quantity Price

1-9$565.00

10-24$542.40

25-99$519.80

100-249$497.20

250-499$474.60

500+$474.60Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Key specifications

Datasheet

View All

Waveguide Size

WR-90

Flange Size

None

Coax Connector Impedance

50 Ohm

Coax Connector Series

N

Coax Connector Gender

Female

Waveguide Adapter Style

Right Angle

Minimum Frequency

8.2 GHz

Maximum Frequency

12.4 GHz

Maximum VSWR

1.25:1

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
