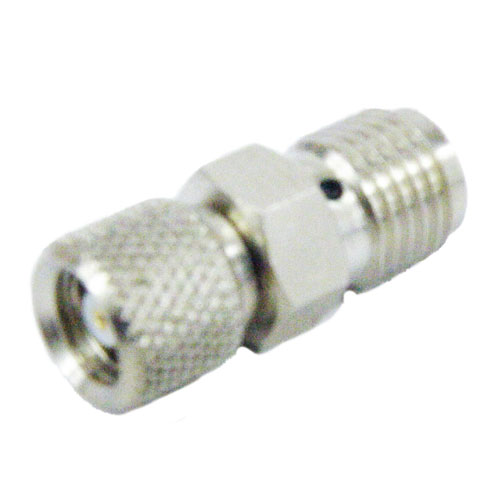

SMA Female to SMC Plug Adapter

SMA Female to SMC Plug AdapterFairview MicrowaveSM2073

SMA Female to SMC Plug Adapter

The SMA to SMC adapter SM2073 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none SMA to none SMC RF adapter comes with a 50 Ohm impedance....

The SMA to SMC adapter SM2073 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none SMA to none SMC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1.This none SMA to none SMC adapter is constructed with female gender on side 1 and plug gender on side 2. The none none SMA female to SMC plug coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM2073 adapter has a length of 0.64 inches, a width of 0 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 10 GHz. This SMA female to SMC plug radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM2073 coaxial RF adapter operates at temperatures ranging from -55 to 125 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and SMC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 10 GHz radio frequency adapter as per your requirements.

SKU SM2073 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMC

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

10 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-female-smc-jack-adapter-sm2071 Fairview Microwave SM2071

Call us

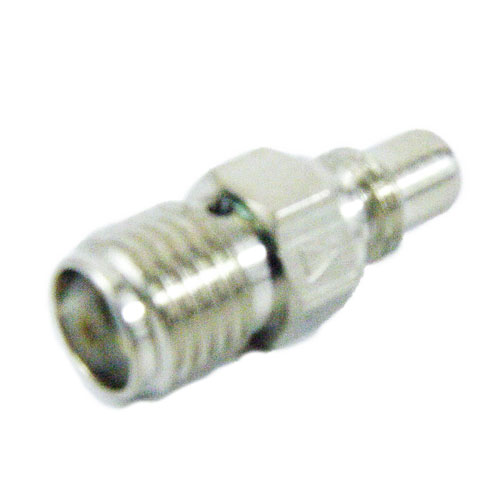

SMA Female to SMC Jack Adapter

Compare

SKU SM2071

Starting price

Estimated shipment Call Us

sma-male-smc-plug-adapter-sm2074 Fairview Microwave SM2074

7 available

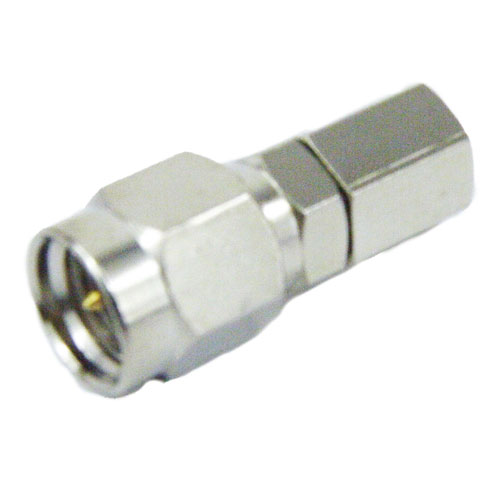

SMA Male (plug) to SMC Plug Adapter, Nickel Plated Brass Body, 1.2 VSWR

Compare

SKU SM2074

Starting price $103.99

Estimated shipment Tomorrow

sma-female-smc-plug-adapter-sm2035 Fairview Microwave SM2035

43 available

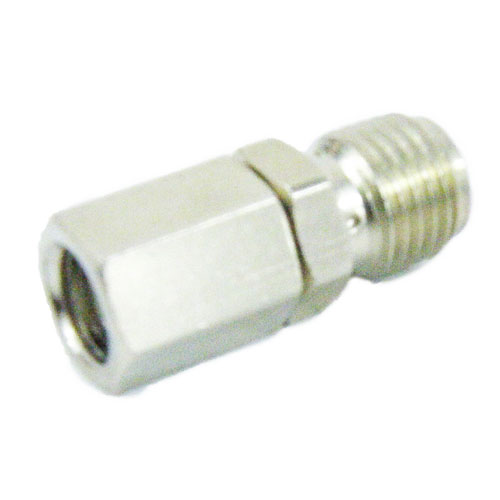

SMA Female (Jack) to SMC Male (Plug) Adapter, High Temp, 1.2 VSWR

Compare

SKU SM2035

Starting price $75.99

Estimated shipment Tomorrow

sma-male-smc-jack-adapter-sm2072 Fairview Microwave SM2072

10 available

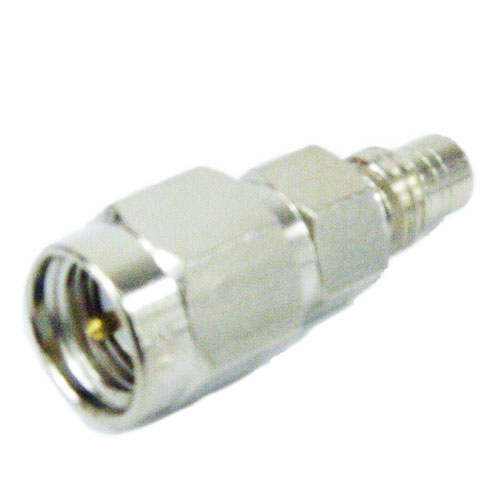

SMA Male (plug) to SMC Jack Adapter, Nickel Plated Brass Body, High Temp, 1.2 VSWR
