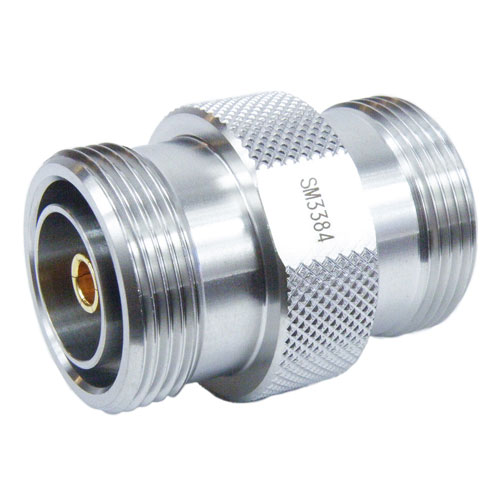

7/16 DIN Female (Jack) to 7/16 DIN Female (Jack) Adapter, Passivated Stainless Steel Body, 1.15 VSWR

7/16 DIN Female (Jack) to 7/16 DIN Female (Jack) Adapter, Passivated Stainless Steel Body, 1.15 VSWR

The standard 7/16 DIN adapter SM3384 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none 7/16 DIN to none 7/16 DIN RF adapter comes with a ...

The standard 7/16 DIN adapter SM3384 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none 7/16 DIN to none 7/16 DIN RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.15:1.This none 7/16 DIN to none 7/16 DIN adapter is constructed with female gender on side 1 and female gender on side 2. The none none 7/16 DIN female to 7/16 DIN female coaxial adapter from Fairview Microwave has a straight body style. This straight7/16 DINadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3384 adapter has a length of 1.8 inches, a width of 1.34 inches, and a weight of 0.33 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This 7/16 DIN female to 7/16 DIN female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM3384 coaxial RF adapter operates at temperatures ranging from -40 to 120 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 7/16 DIN female to 7/16 DIN female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 7/16 DIN coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3384 SM3384 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

7/16 DIN

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

7-16-male-7-16-female-adapter-sm3395 Fairview Microwave SM3395

Call us

7/16 DIN Male (Plug) to 7/16 DIN Female (Jack) Adapter, Silver Plated Copper Body

Compare

SKU SM3395

Starting price $27.99

Estimated shipment Call Us

7-16-male-7-16-female-adapter-sm3393 Fairview Microwave SM3393

28 available

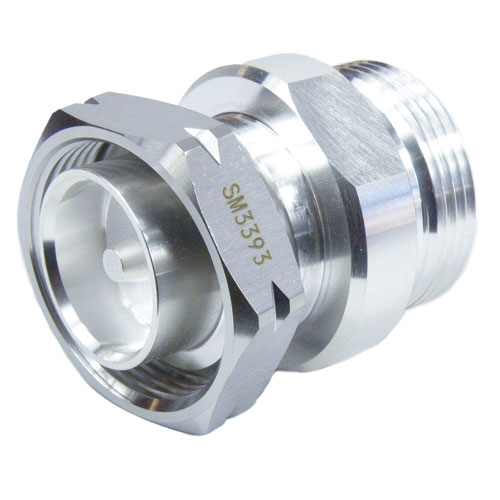

7/16 DIN Male (Plug) to 7/16 DIN Female (Jack) Adapter, Sliver Plated Brass Body, 1.15 VSWR
